Display mode menu 3
D 3 - Display mode
Menu „3. Display mode” is used to define the
controller’s display for normal operation. This display
appears whenever two minutes go by without any key
being pressed. The main menu appears again when
a key is pressed.
The menu is closed by pressing „esc” or selecting
„Exit display mode”.
D 3.1 - Diagram

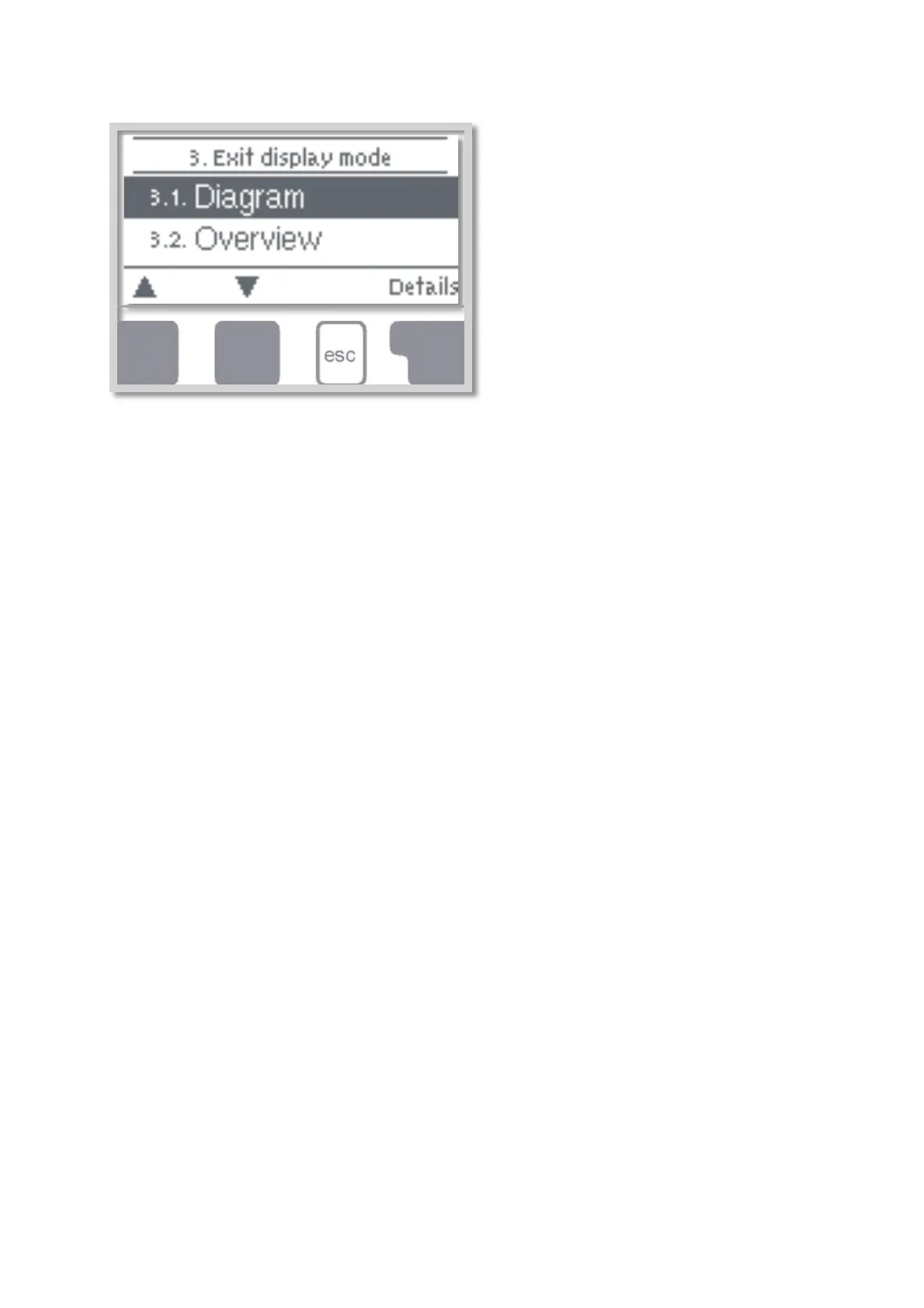

menu 3.1
In graphics mode, the selected hydraulic systems are depicted with the measured temperatures and operating
states of the connected valves and pumps.
D 3.2 - Overview menu 3.2
In overview mode, the measured temperatures and operating states of the connected consumers are shown in
text form. No hydraulic system is shown.
D 3.3 - Alternating menu 3.3
In alternating mode the diagram mode and then the overview mode are active for 5 seconds at a time.
