EGULUS - SRS 3 Controller - www.re
ulus
A 6 - Wall installation
Install the controller only in dry areas and under the ambient conditions described in Chapter A 1.
Installation instructions:
1. Unscrew cover screw completely.
2. Carefully pull upper part of housing from lower part.
3. Set upper part of housing aside, being sure not to
touch the electronics when doing so.
4. Hold the lower part of the housing up to the se-
lected position and mark the 3 mounting holes. Make
sure that the wall surface is as even as possible so
that the housing does not become distorted when it is
screwed on.
5. Using a drill and size 6 bit, drill 3 holes at the points
marked on the wall and push in the plugs.
6. Insert the upper screw and screw it in slightly.
7. Fit the upper part of the housing and insert the other
two screws.
8. Align the housing and tighten the three screws.

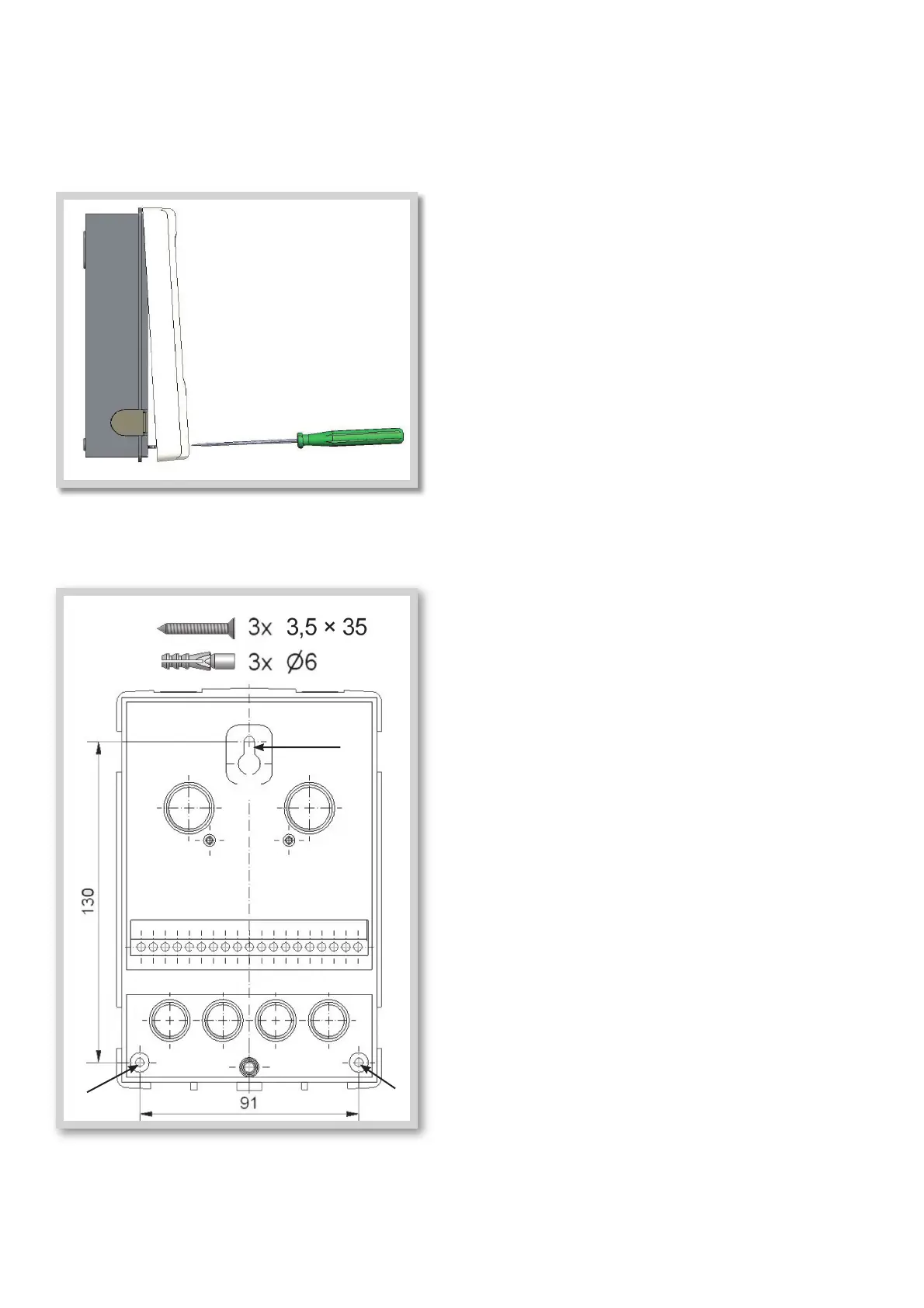

Fig. A 3.1.1
Fig. A 3.1.2
fixing
points
fixing
points
fixing
points
