REMdevice t3 User Manual

Instruction Manual
Radio control devices T3, T5 and T7.
version 1.4 Genn. 10
Ruby T7 Receiver
STOP
START CLAX LAMP
ABIL
CR1 CR2 CR3 CR4 CR5 CR6 CR7 CR8 CR9 CR10 CR11 CR12
CR13NA CR13NC
STOP
B-NC
START
B-COM
CLAX
B-NA
LAMP
A-NC
ABIL
A-COM
CR1
A-NA
CR2
V-ALIM
CR3
V-ALIM
CR4 CR5
CR6 CR7
CR8 CR9 CR10 CR11 CR12 CR13
COMANDI
COMUNI
FUNCTION CHANGE
WIRE JUMPERS
AUXILIARY
SUPPLY AND
CONTROLS
CONNECTOR

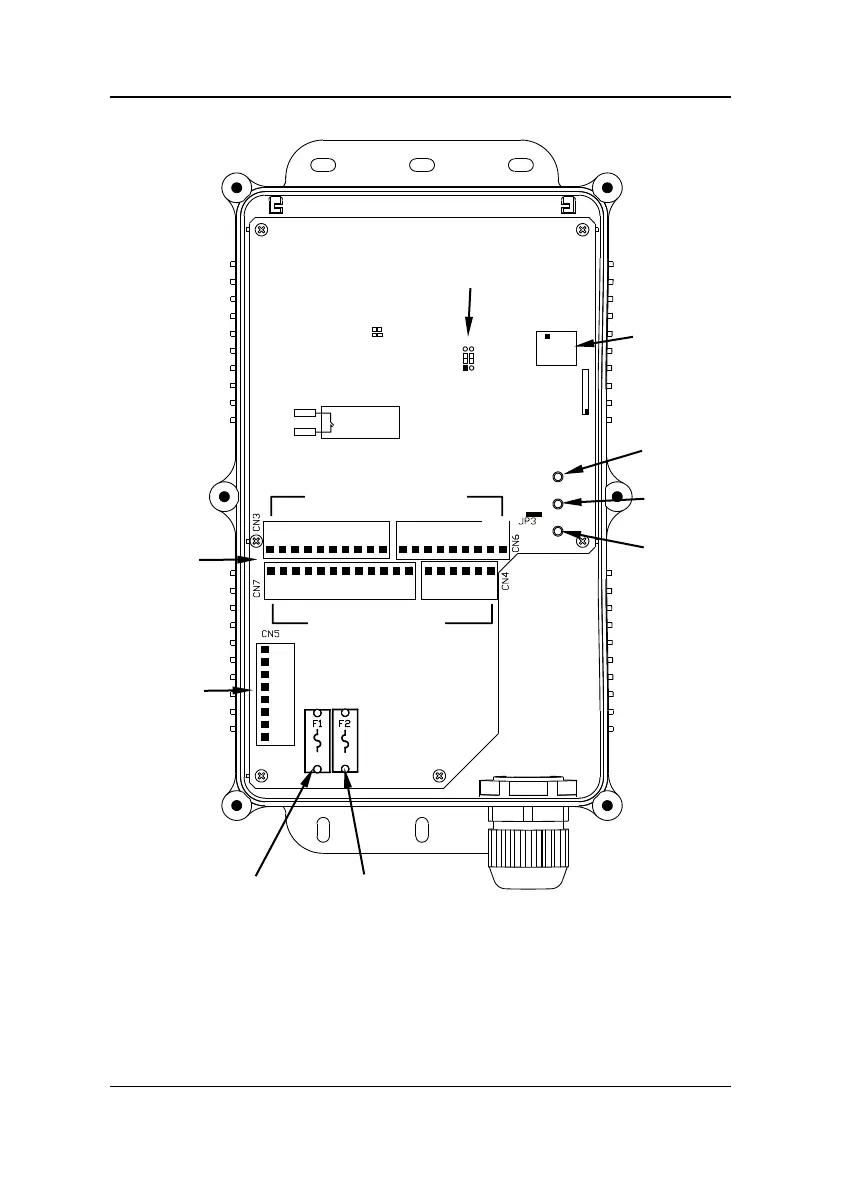

Figure 7
CONTROL
RELAY
OUTPUTS
CONNECTOR
(1) (2)
COMMON
COMMANDS
LED PLL
LED LINK
LED ON
MONITOR
TESTER
CONNECTOR
STOP/EMERGENCY
RELAY FUSE
POWER SUPPLY
FUSE
page 12 of 28 REMdevice
®
- ITALY

REMdevice t3 Specifications

Operating Environment

operative frequency range 1	869.700 – 870.000 MHz
operative frequency range 2	433.050 – 434.790 MHz
operating and storage temperature	-20°C / +70°C

Power

power supply option 1	12-24Vdc 1, 0A
power supply option 2	24-48Vac/dc 50-60 Hz 0.4A
power supply option 3	48-115Vac/dc 50-60 Hz 0.4A
power supply option 4	115-230Vac/dc 50-60 Hz 0.2A

Receiver Specifications

command relay contacts capacity	4A 115 Vac.
stop relay contacts capacity	4A 115 Vac.
range of control	100 mt.

Transmitter Specifications

radio frequency output power	1 to 10 mW
supply voltage	3.6 Vdc.
power consumption range	13.5 mA to 24 mA
battery	integrated lithium ions 3.6V
working autonomy	up to 1200 hours (20°C)
low battery warning	at 30 hours left

Dimensions and Weight

container dimensions	158×90×75 mm (L×H×D)
watertight case Ruby-T7 dimensions	169×266×89 mm (L×H×D)
watertight case ECOBOX dimensions	124×176×45 mm (L×H×D)
transmitter dimensions	176x85x37 mm (L×H×D)
transmitter weight	350 g
