REMdevice t3 User Manual

Instruction Manual
Radio control devices T3, T5 and T7.
version 1.4 Genn. 10

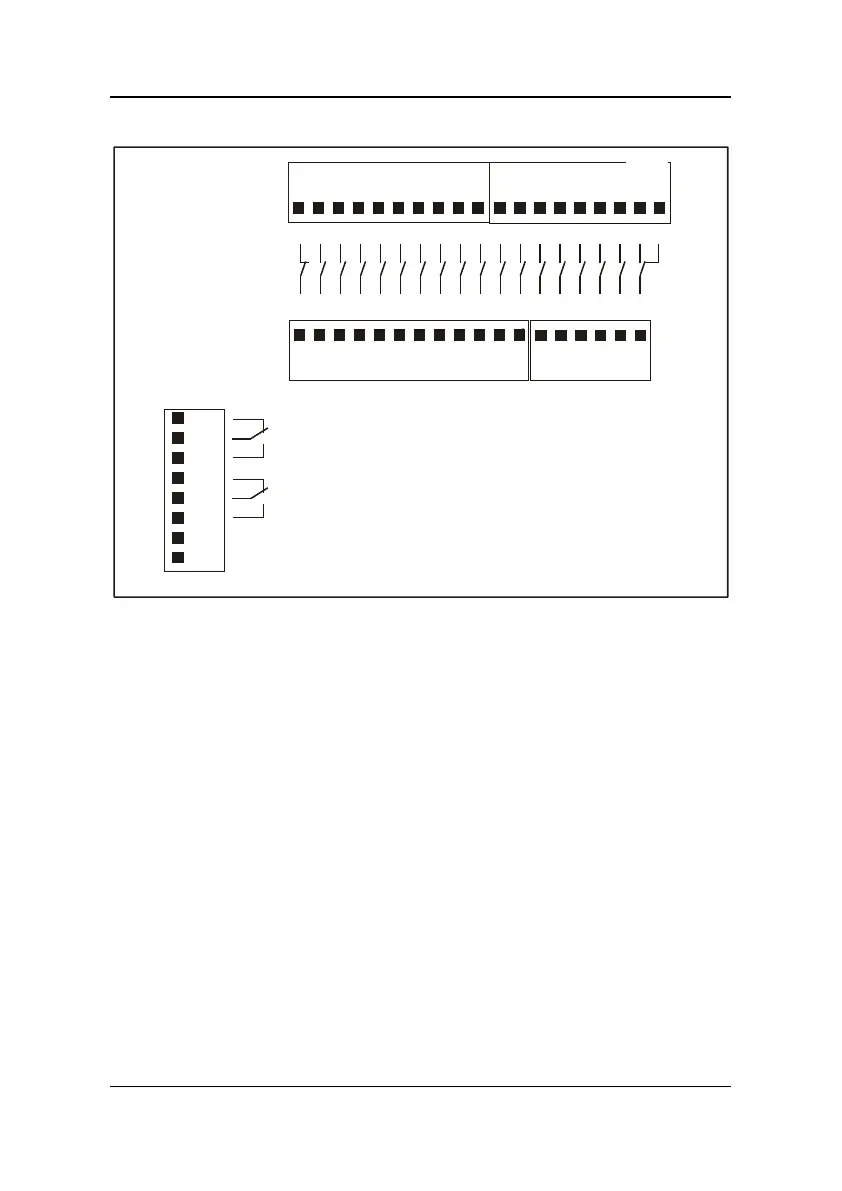

Arrangement of controls in the receiver Ruby T7
STOP START CLAX LAMP ABIL CR1 CR2 CR3 CR4 CR5 CR6 CR7 CR8 CR9 CR10 CR11 CR12 CR13NA CR13NC
STOP
B-NC
START
B-COM
CLAX
B-NA
LAMP
A-NC
ABIL
A-COM
CR1
A-NA
CR2
V-ALIM
C
R3
V-ALIM
CR
4
CR5
CR6
CR7
CR8 CR9 CR10 CR11 CR12 CR13
1
32
2
30
3
28
4
26
5
24
6
22
7
20
8
18 16 14 12 10
27 25
2
3
21 19
1
7
15 13
11 9 45
43 41 39 37
35 33 31
29
44 42 40 38 36 34
V-ALIM = Receiver power supply
STOP = Stop/Emergency Contact (N.C. with transmitter active)
START= Start Contact (N.A.)
CLAX = Horn Contact (N.A., it closes with the START command)
LAMP = Contact for flashing light (N.C. with transmitter active)
ABIL = Enabling Contact (N.A., it closes with any control button)
CR1-12 =
Control relay contacts
CR13, A, B =
Contacts of the relays assigned to the auxiliary
button
N.A. =
Normally Open
N.C. =
Normally Closed
Figure 8
REMdevice
®
- ITALY page 13 of 28

REMdevice t3 Specifications

Operating Environment

operative frequency range 1	869.700 – 870.000 MHz
operative frequency range 2	433.050 – 434.790 MHz
operating and storage temperature	-20°C / +70°C

Power

power supply option 1	12-24Vdc 1, 0A
power supply option 2	24-48Vac/dc 50-60 Hz 0.4A
power supply option 3	48-115Vac/dc 50-60 Hz 0.4A
power supply option 4	115-230Vac/dc 50-60 Hz 0.2A

Receiver Specifications

command relay contacts capacity	4A 115 Vac.
stop relay contacts capacity	4A 115 Vac.
range of control	100 mt.

Transmitter Specifications

radio frequency output power	1 to 10 mW
supply voltage	3.6 Vdc.
power consumption range	13.5 mA to 24 mA
battery	integrated lithium ions 3.6V
working autonomy	up to 1200 hours (20°C)
low battery warning	at 30 hours left

Dimensions and Weight

container dimensions	158×90×75 mm (L×H×D)
watertight case Ruby-T7 dimensions	169×266×89 mm (L×H×D)
watertight case ECOBOX dimensions	124×176×45 mm (L×H×D)
transmitter dimensions	176x85x37 mm (L×H×D)
transmitter weight	350 g
