REMdevice t3 User Manual

Instruction Manual
Radio control devices T3, T5 and T7.
version 1.4 Genn. 10
Change of receiver functions
Operate on the “FUNCTION CHANGE” wire jumpers inside the receiver.
Wire Jumper
RECEIVER OPERATION
1 Open
Frequency change blocked.
The last frequency set becomes the working frequency
and can no longer be changed.
After this operation it is necessary to perform the
procedure described in the chapter “Changing the
transmitter” (page 15).
1 Closed
Frequency change released.
2 Open
Button 7 performs the function of 3
rd
and 4
th
speed
(self-retaining relays) for the first control activated.
When the button for the opposite control is pressed,
the 3
rd
and 4
th
speed self-retaining relays are
disconnected step by step.
If two or more controls are activated at the same time,
the function of the button T7 has no effect.
2 Closed The second click of each button activates a relay of its own.

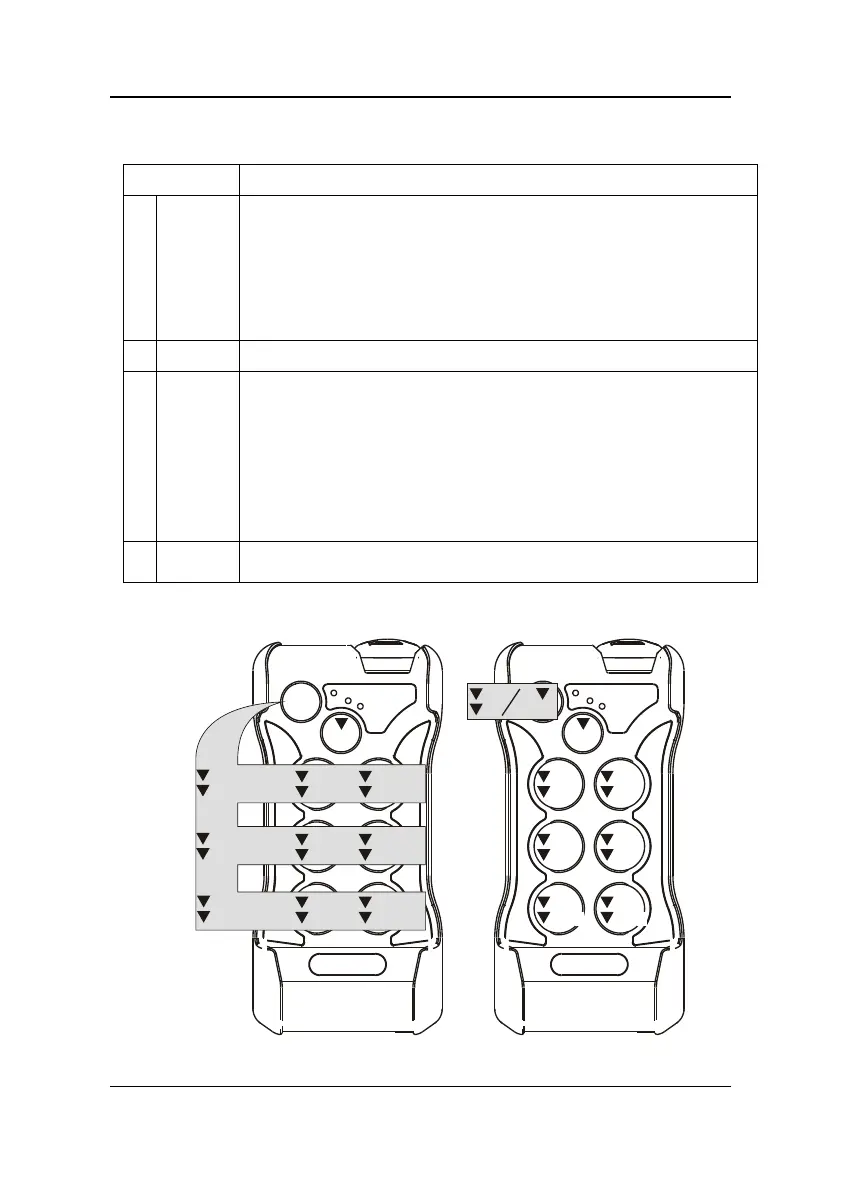

(Receiver) - WIRE JUMPER 2 OPEN
BUTTONS-RELAYS CORRESPONDENCE
(Receiver)
START
CR4
CR13
3^
4^
1^
2^
1^
2^
CR3
CR2
CR1
CR2
CR5
CR6
CR7
CR6
CR9
CR10
CR11
CR10
CR8
A
3^
4^
1^
2^
1^
2^
CR12
B
3^
4^
1^
2^
1^
2^
CR13
START
CR3
CR4
CR1
CR2
CR5
CR6
CR7
CR8
CR9 CR11
A
B
CR10 CR12
7
4 self-retaining speeds Recommended for
Recommended for CRANES Bridge Cranes
(Receiver) WIRE JUMPER 2 CLOS
ED
REMdevice
®
- ITALY page 23 of 28

REMdevice t3 Specifications

Operating Environment

operative frequency range 1	869.700 – 870.000 MHz
operative frequency range 2	433.050 – 434.790 MHz
operating and storage temperature	-20°C / +70°C

Power

power supply option 1	12-24Vdc 1, 0A
power supply option 2	24-48Vac/dc 50-60 Hz 0.4A
power supply option 3	48-115Vac/dc 50-60 Hz 0.4A
power supply option 4	115-230Vac/dc 50-60 Hz 0.2A

Receiver Specifications

command relay contacts capacity	4A 115 Vac.
stop relay contacts capacity	4A 115 Vac.
range of control	100 mt.

Transmitter Specifications

radio frequency output power	1 to 10 mW
supply voltage	3.6 Vdc.
power consumption range	13.5 mA to 24 mA
battery	integrated lithium ions 3.6V
working autonomy	up to 1200 hours (20°C)
low battery warning	at 30 hours left

Dimensions and Weight

container dimensions	158×90×75 mm (L×H×D)
watertight case Ruby-T7 dimensions	169×266×89 mm (L×H×D)
watertight case ECOBOX dimensions	124×176×45 mm (L×H×D)
transmitter dimensions	176x85x37 mm (L×H×D)
transmitter weight	350 g
