NOTE
The brackets must be connected to the unit and
the wall in a de-energised state.
CAUTION
The units may only be mounted on stable walls,
ceilings or structures made of non-flammable
construction materials with sufficient bearing
capacity.
The wall console must be affixed securely using
screws and wall plugs in accordance with the
customer’s type of wall and the unit weight.
Pivoting wall installation
The instructions for installation of the pivoting
brackets are included with the packaging.
The use of pivoting brackets is appropriate for the
following cases:
a) Installation of the unit in a corner
b) Installation of the unit at a right angle to the wall it
is mounted on
c) Installation of the unit on a column

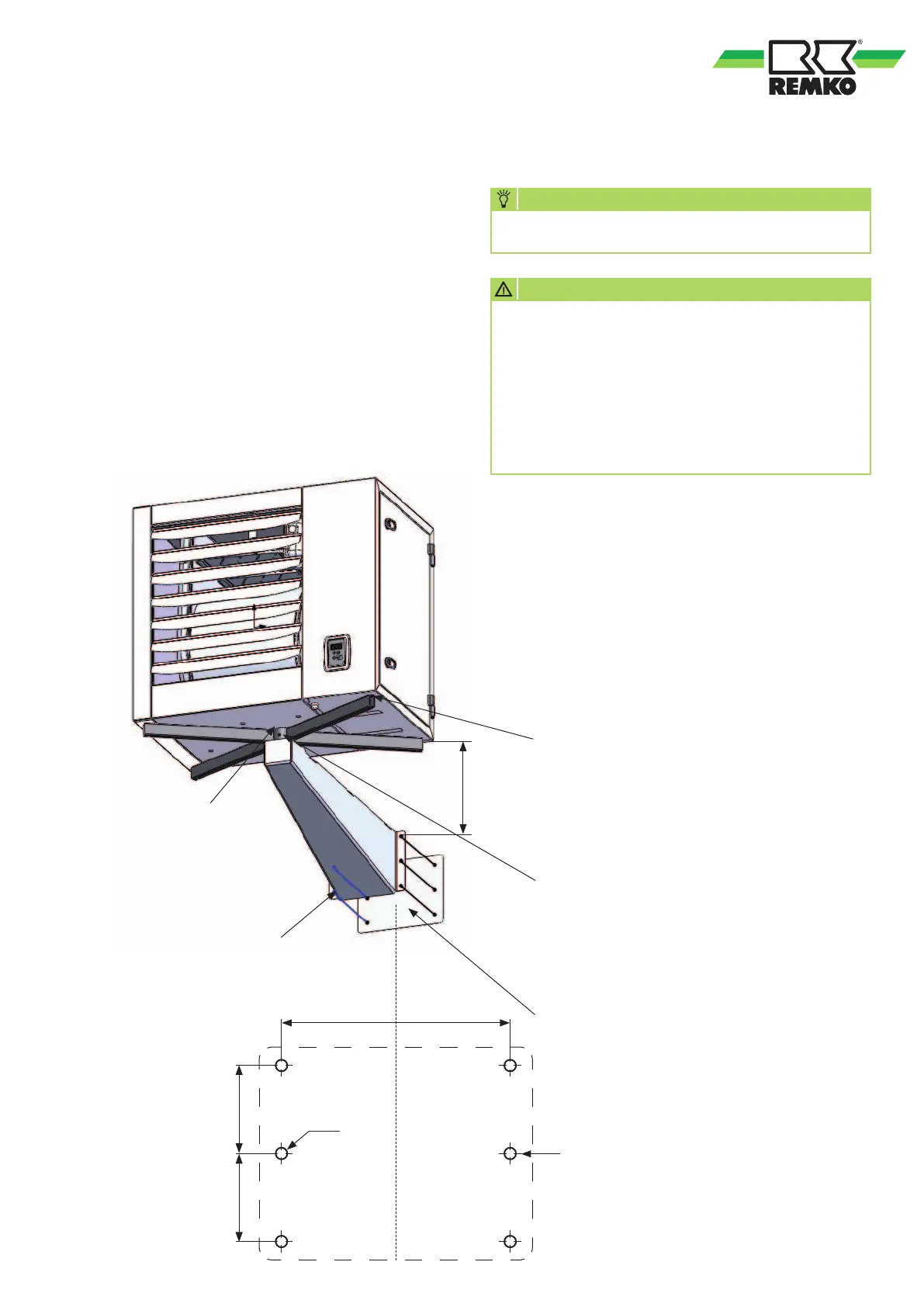

The unit should be
affixed “decoupled”.
The spider must be
mounted
with the flush
socket side below the
unit’s
base.
A counterplate must be
used if necessary.
The bracket must be
screwed to the
wall so
that it is free of tension.
After the unit has been
aligned finally, use the
enclosed threaded pin
to secure
the spider.
220
8080
Ø12
The fastening holes are
the same for all bracket
sizes.
The order numbers for the pivoting wall installation
are:
EDP no.: 228781 for GPS 15 / 25
EDP no.: 228782 for GPS 35 / 55
EDP no.: 228783 for GPS 75
