Type C33 vertical / coaxial
L1 + L2 maximum duct length without end pieces
Pipe ø 80 Pipe ø 100
Model Metres
GPS 15 30 + 30 -
GPS 25 30 + 30 -
GPS 35 20 + 20 -
GPS 55 5 + 5 20 + 20
GPS 75 1 + 1 10 + 10
L2
KO
L1
Mounting height

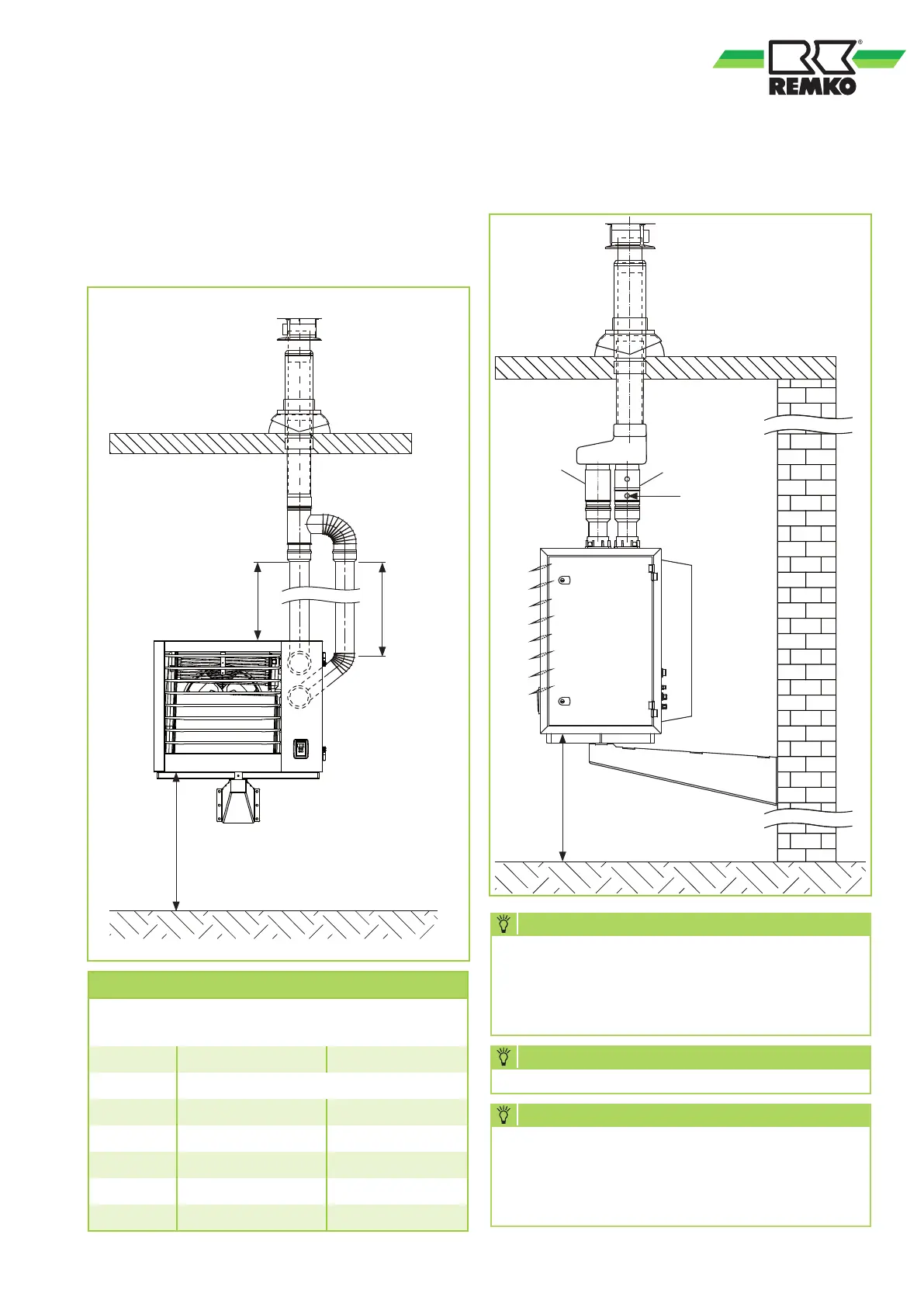

Schematic
side view
2.5 - 3.5 m
L1
L2
Mounting height
2.5 - 3.5 m
Schematic
front view
Type C33
Room-air-independent combustion system.
Exhaust/ and combustion air are led through an LAS
end piece through the roof.
We reserve the right to modify the dimensions and design as part of the ongoing technical development process.
NOTE
In this version the position of the connections to
the unit must be changed, meaning they must be
repositioned from behind to above.
This variant
is executed at the factory and must be indicated
when ordering.
NOTE
Condensate drainage connection [KO] = M 30 external thread
NOTE
The installation of the exhaust gas routeing
through the outside wall must correspond
to the regulations of DVGW - TRGI and
TRF as a basic rule and must be approved
by the responsible district master sweep.
