23
NOTE
If a remote control is connected to the unit then
the selector switch on the front control panel
of the unit must always be set to “winter”.
3136 35 34 3233
GPS board
242928
27
25
26 18
23
22 21
19
20
30
107 98 1714 1615
42
5
41
6
11 12
3
4
1
2
373839
4
3
2
5
6
1
Cable number
3136 35 34 3233
GPS board
242928
27
25
26 18
23
22 21
19
20
30
107 98 1714 1615
42
5
41
6
11 12
3
4
1
2
373839
3 5 7 8 10 9
Do not connect cable with
the number 1 and isolate
Cable number
Terminal number
4
3
2
5
6
1

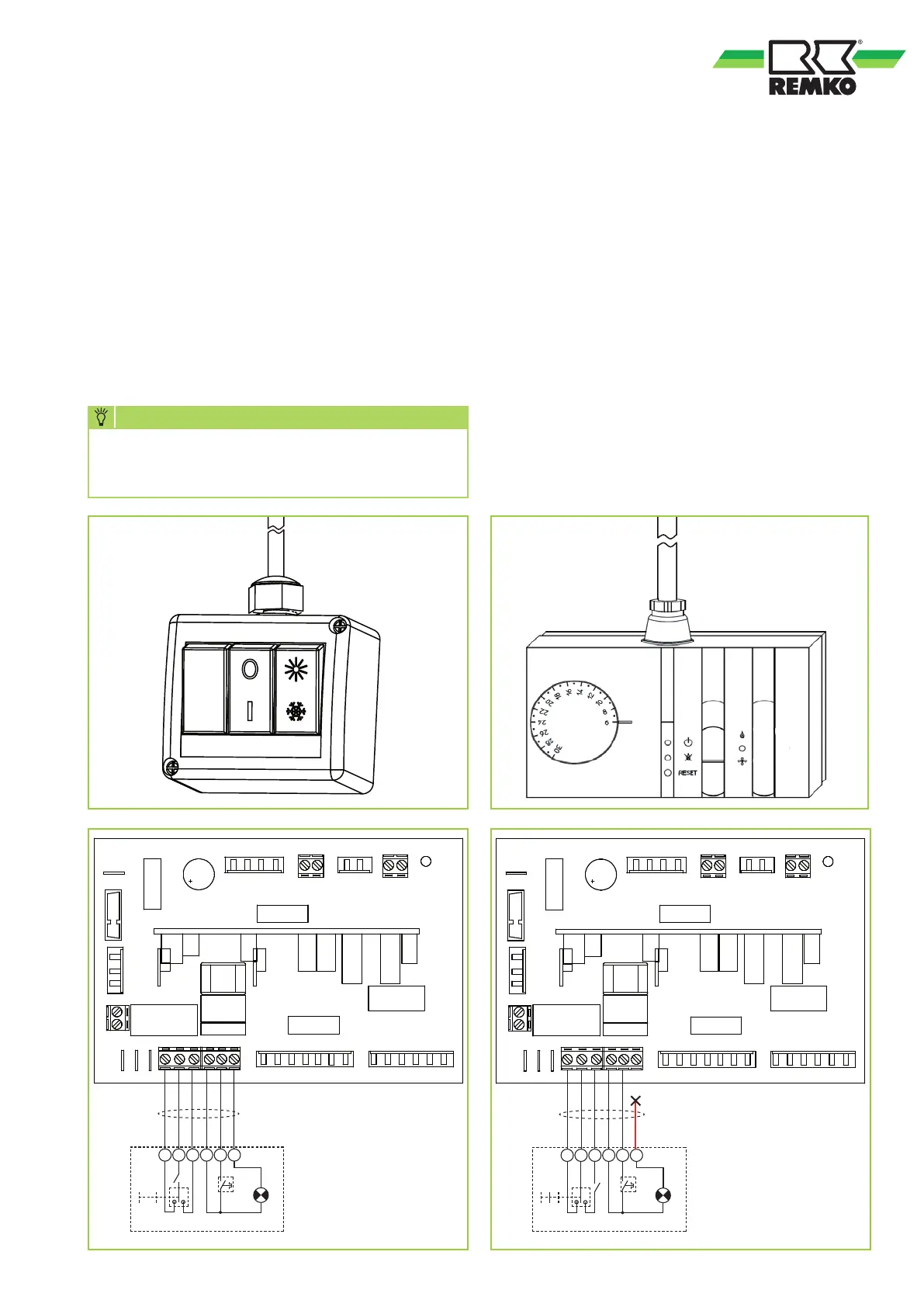

KF-30 connection RR-30 connection
The cabled remote control KF-30 is a simple control
for the GPS unit range and has the following
functions:
■
On / off switch
■
A summer / winter selector switch
■
A RESET key with error indicator light
The remote control is connected to the screw
terminals of the GPS board in accordance
with the wiring diagram.
The room temperature controller RR-30 is
electronically controlled and is designed for simple
and convenient regulation of the room temperature.
It offers the following functions:
■
Heating / off / ventilation selector switch
■
Adjustment wheel for the room temperature
■
Operating message light
■
RESET key
The remote control is connected to the screw
terminals of the GPS board in accordance with
the wiring diagram.
RR-30KF-30
Ventilate
Heating
I/0
RESET
Ventilate
Heating
RESET
0
TA
