REMKO GPS series
T2 P1 S1
Ö1
P2 S2
Ö2
P3
S3
Ö3
N
PE L
N
PE
L
A1 A2
NC NO
1
2
34
5
6
1
2
3 4
5
63

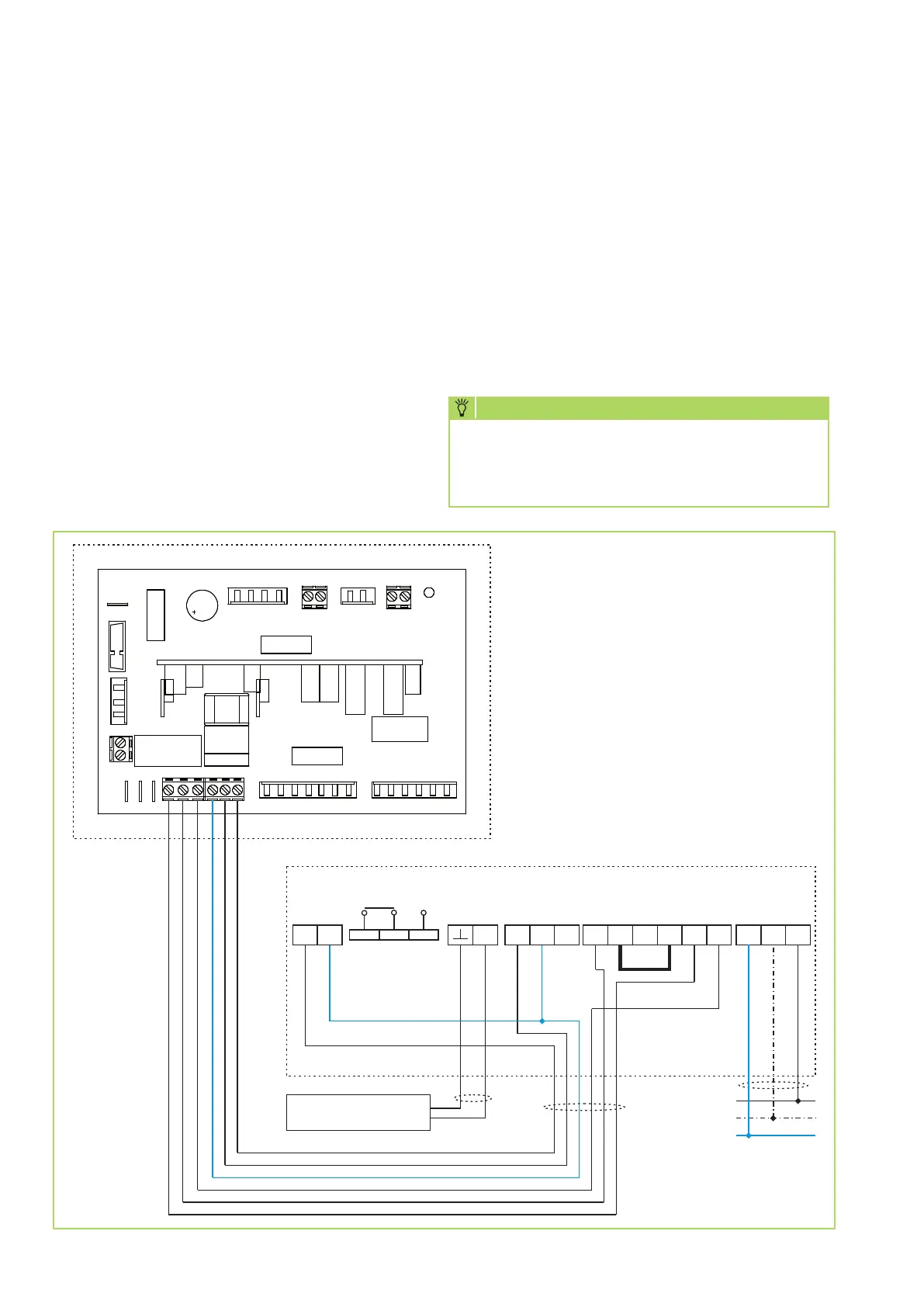

Connecting the ATR-10 for a GPS unit
The ATR-10 electronic temperature controller
is designed for convenient regulation of the room
temperature. It offers the following functions:
■ Heating / off / ventilation function buttons
■ Electronically adjustable room temperature
■ Electronically adjustable weekly timer
■ Operating message indicators
■ Malfunction message
■ RESET button combination
The remote control is connected to the screw
terminals of the GPS board in accordance with
the wiring diagram. Observe the ATR-10 operating
manual to ensure fault-free operation.
GPS group operation using the ATR-10
The ATR-10 electronic temperature controller is
suitable for group operation of GPS units. One RP-10
is required per GPS unit for isolated unit switching.
Observe the ATR-10 operating manual to ensure
fault-free group operation.
We reserve the right to modify the dimensions and design as part of the ongoing technical development process.
ATR-10
GPS unit
Temperature probe
3136 35 34 3233
242928
27
25
26 18
23
22 21
19
20
30
107 98 1714 1615
42
5
41
6
11 12
3
4
1
2
373839
Set selection
switch to NC
GPS board
RP-10 relay board
GPS 15-75; EDP no.: 1011368
NOTE
The cable lengths between the ATR-10
temperature controller and the GPS board may
not exceed 8 metres. Avoid doorbell/telephone
cables!
