Renault Clio Cup - Page 17

2010 Release
E-17
7 -

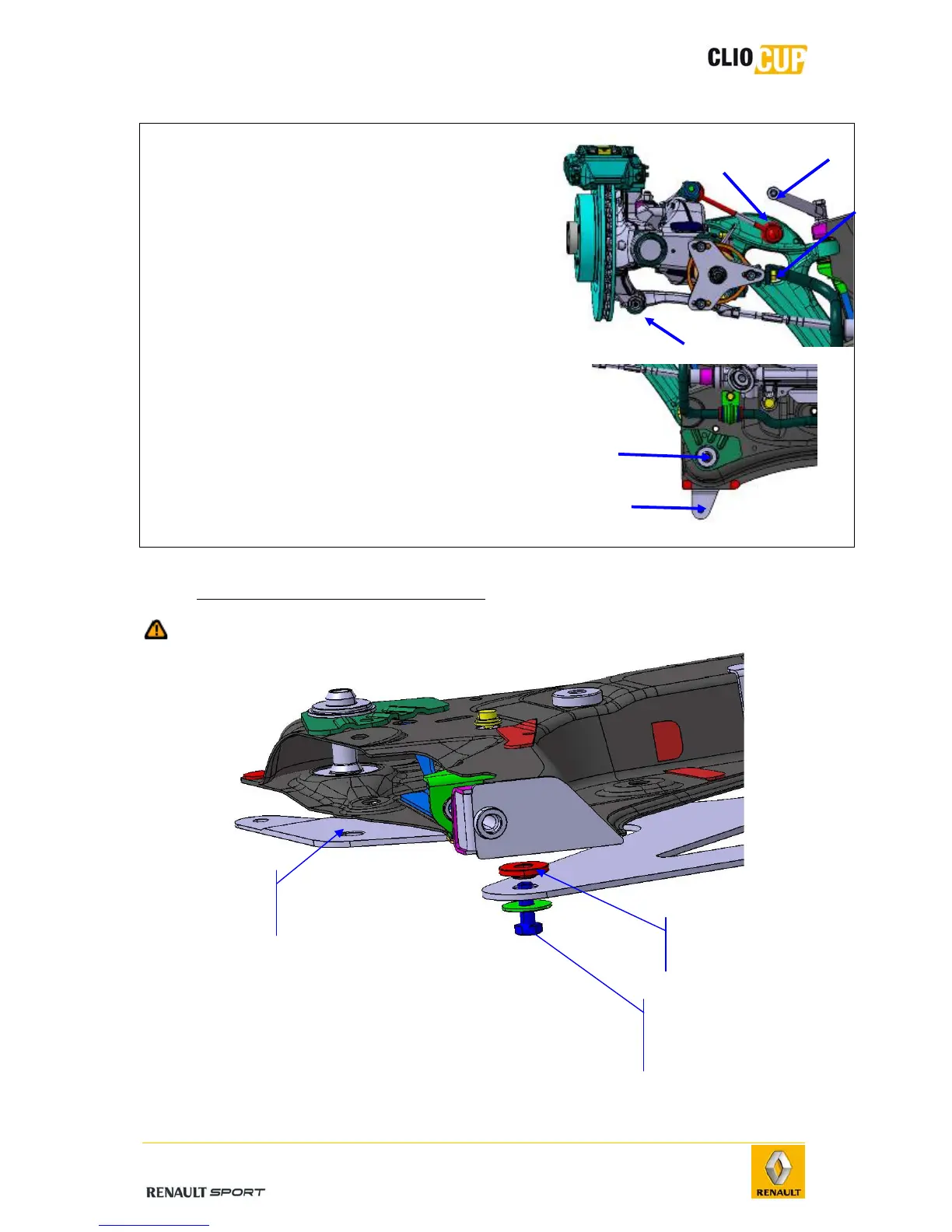

Disconnect the anti-rotation tie-rods at the
level of the wishbones (5).
8 -
Disconnect the steering tie-rods at the level
of points H (6).
9 -
Disconnect the anti-roll bar tie-rods at the
level of the support struts (7).
10 -
Disconnect the QQ’ tie-rods at the body level
(8).
11 -
Remove the bolts from points P (9) and P’
(10).
12 -
Extract the subframe by lowering the
hydraulic plate.
- Preparing the subframe before refitting
Do not forget the subframe braces and steering unit riser shims.
Aluminum
reinforcement plate
ref.
77 11
160 151
Bolt ref.:
77 11,156,911
+ washer
Spacer:
ref 77 11 160 184
6
8
5
7
9
10
