Renault Clio Cup - Page 18

2010 Release
E-18

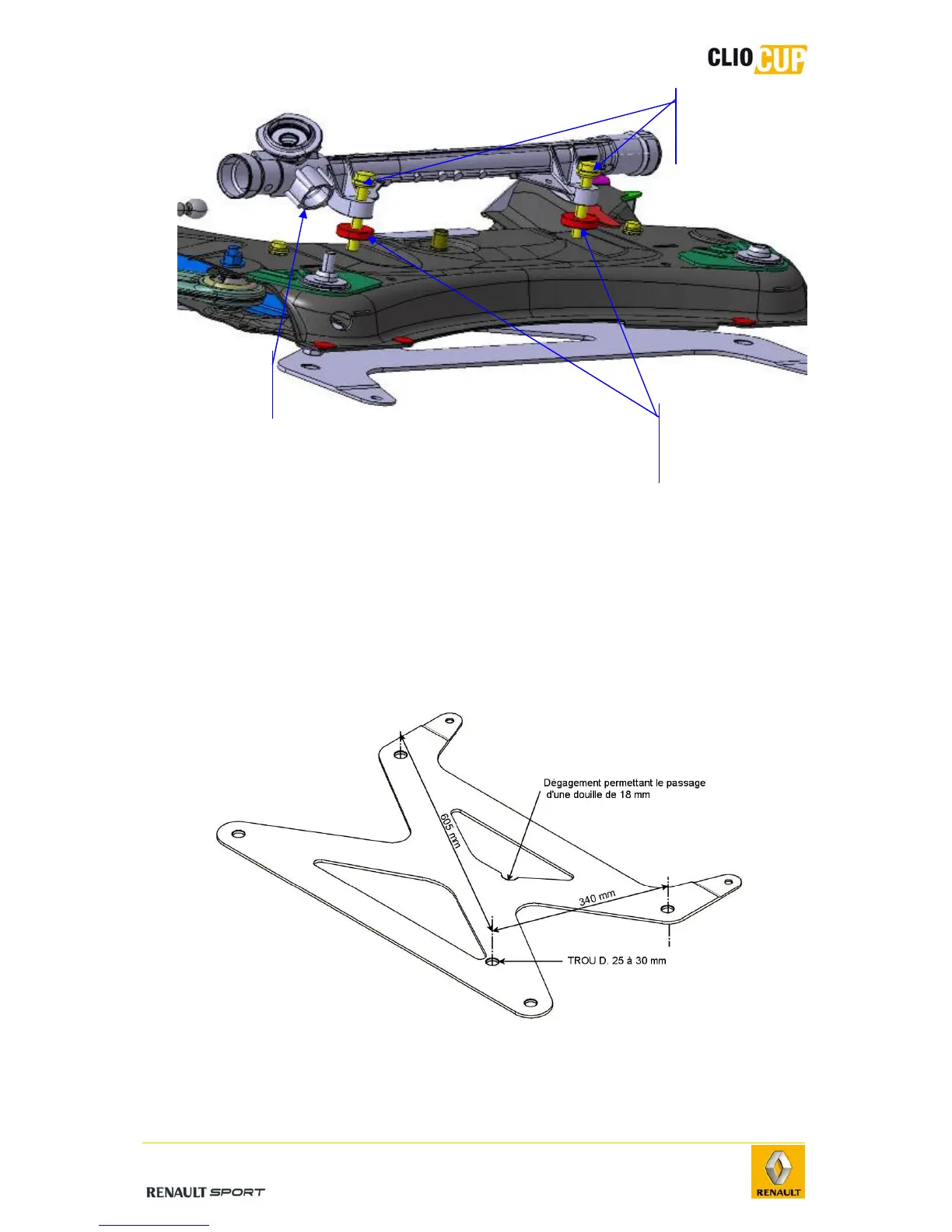

To allow :
- The differential casing-oil change,
- An access to the fixation screw of the rear powertrain support rod:
It is allowed to modify the subframe reinforcement plate as below,
1) Drill a ø 25 to 30 mm hole below the draining stopper of the differential casing
2) Carry out a clearing around the screw head to allow the access of a 6 sides
bushing (18mm)
Any other modification is not allowed
Steering unit
ref.: 77 11 160 046
Steering unit mounting
bolt
ref.: 77 03 602 136
Steering unit riser
shims
ref.: 77 11 160 016
