- Refitting
Perform the removal steps in reverse order.
Tightening torques:
 Bolts for points P and P’: 120Nm.
 QQ’ mounting bolts to body: 105Nm.
 Anti-roll bar tie-rod mounting bolt: 44Nm.
 Point H nut: 37Nm.
 Anti-rotation tie-rod mounting bolt on wishbone: 100Nm.
 Point E nut: 105Nm.
 Connecting torque rod mounting bolt on yoke: 105Nm.
 Connecting torque rod mounting bolt on subframe: 105Nm.

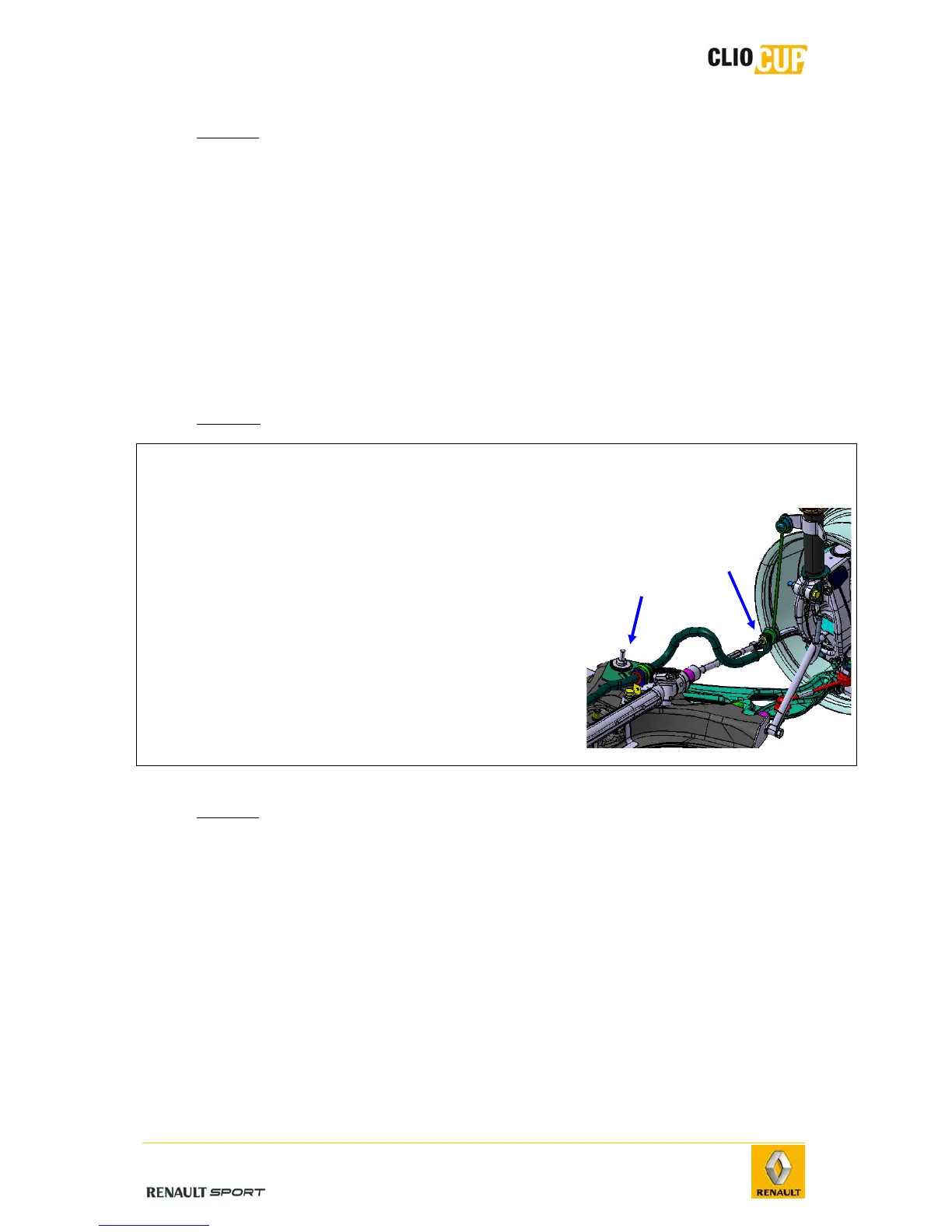

Anti-roll bar
- Removal
Operations Photos
1 -
Remove the anti-roll bar tie-rod mounting nuts
(1) at the level of the anti-roll bar.
2 -
Remove the subframe (see. 4-2 Front axle/Front
load bearing components/Subframe).
3 -
Remove the bar support bearings (2).
4 -
Remove the bar.
5 -
Check the condition of the bearings and replace if
necessary.
- Refitting
Perform the removal steps in reverse order.
Tightening torques:
 Anti-roll bar bearing mounting bolts: 21Nm.
 Anti-roll bar tie-rod mounting nuts: 44Nm.
2
1
