Renault Clio Cup - Page 50

2010 Release
E-50

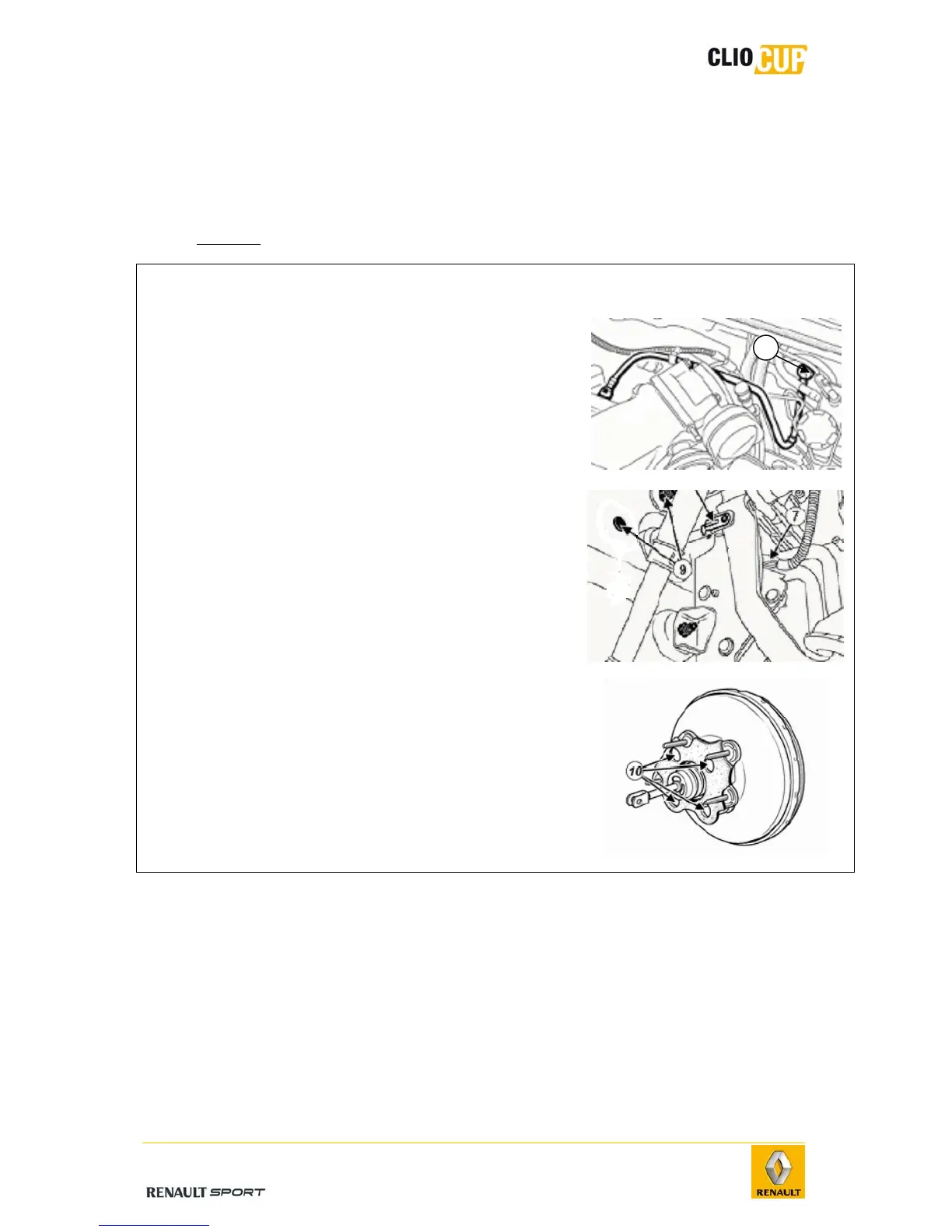

Braking amplifier
The brake booster cannot be repaired. Maintenance operations are only allowed on the
following parts:
 Air filter
 Check valve
- Removal
Operations Photos
1 -
Remove the air box and intake pipe.
2 -
Remove the check valve at the amplifier lever
(1).
3 -
Remove the master cylinder (see previous
paragraph).
4 -
Remove the dual safety coupling shaft (5)
between the braking amplifier thrust rod and the
brake pedal.
5 -
Remove the braking amplifier mounting nuts (9)
6 -
Remove the braking amplifier.
7 -
Remove the braking amplifier spacer mounting
bolts (10).
8 -
Remove the braking amplifier spacer.
