Wastegate
- Operation
The wastegatecan be adjusted by the driver from his seat:
Tighten the star wheel to increase rear braking,
Loosen the star wheel to reduce rear braking.
Above a pressure of 10 bars in the braking circuit, and depending on the setting, the rear
circuit pressure is limited to between 10 and 40 bars.

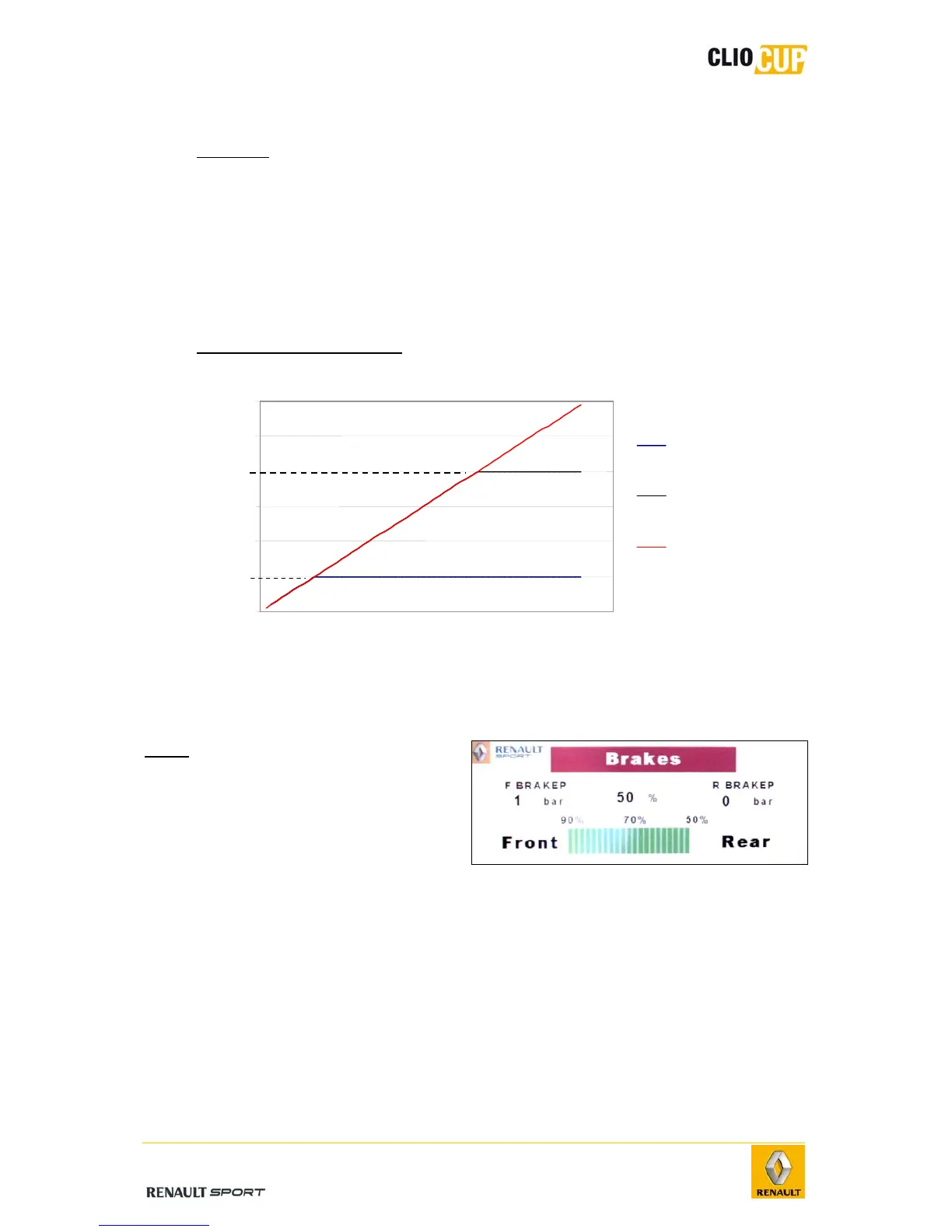

- Wastegate operating curve:
Note:
The front/rear pressure
distribution can be
displayed on the "Brakes"
page of the display (if the
optional data acquisition
kit 77 11 160 189 has
been fitted onto the
vehicle).
-
0
10
20
30
40
50
60
Force applied to pedal
Pressure
(bar)
Rear pressure
fully open
Rear pressure
fully closed
Front pressure
