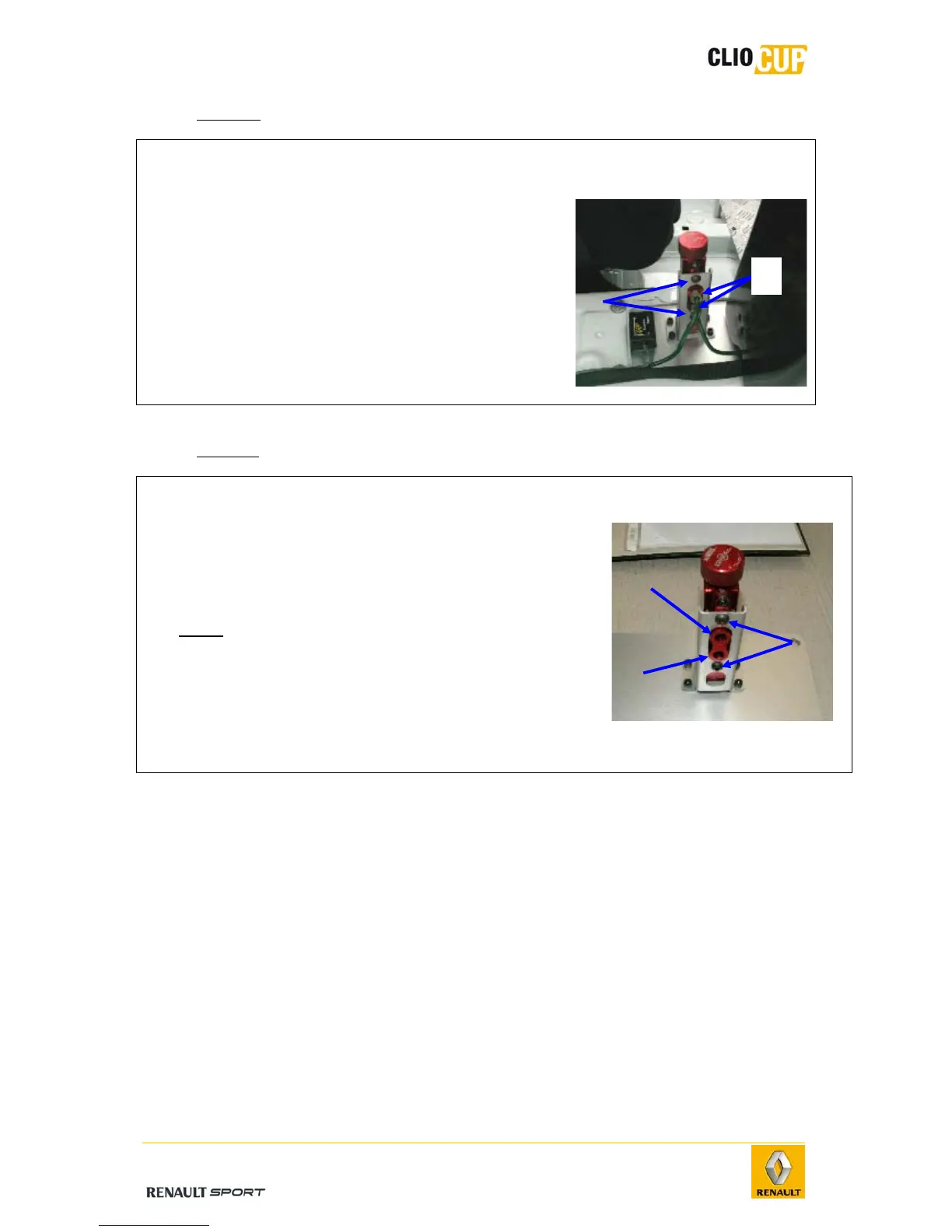

Renault Clio Cup - Page 53

2010 Release
E-53
Removal
Operations Photos
1 -
Unscrew the connectors (1) (allow for brake fluid
discharge).
2 - Remove the mounting bolts (2) and the wastegate.
- Refitting
Operations Photos
1 -
Fit the wastegate on the support using the two bolts
(2).
2 -
Place the connector ends in the wastegate’s threaded
holes. Initiate threading manually.
Note:
Follow the direction of assembly.
3 -
Tighten the connectors to 13Nm.
4 -
Drain the braking circuit.
5 -
Preset the wastegate to the centre position: 15 “clicks"
from one of the 2 end positions.
1
2
2
Input
Output
