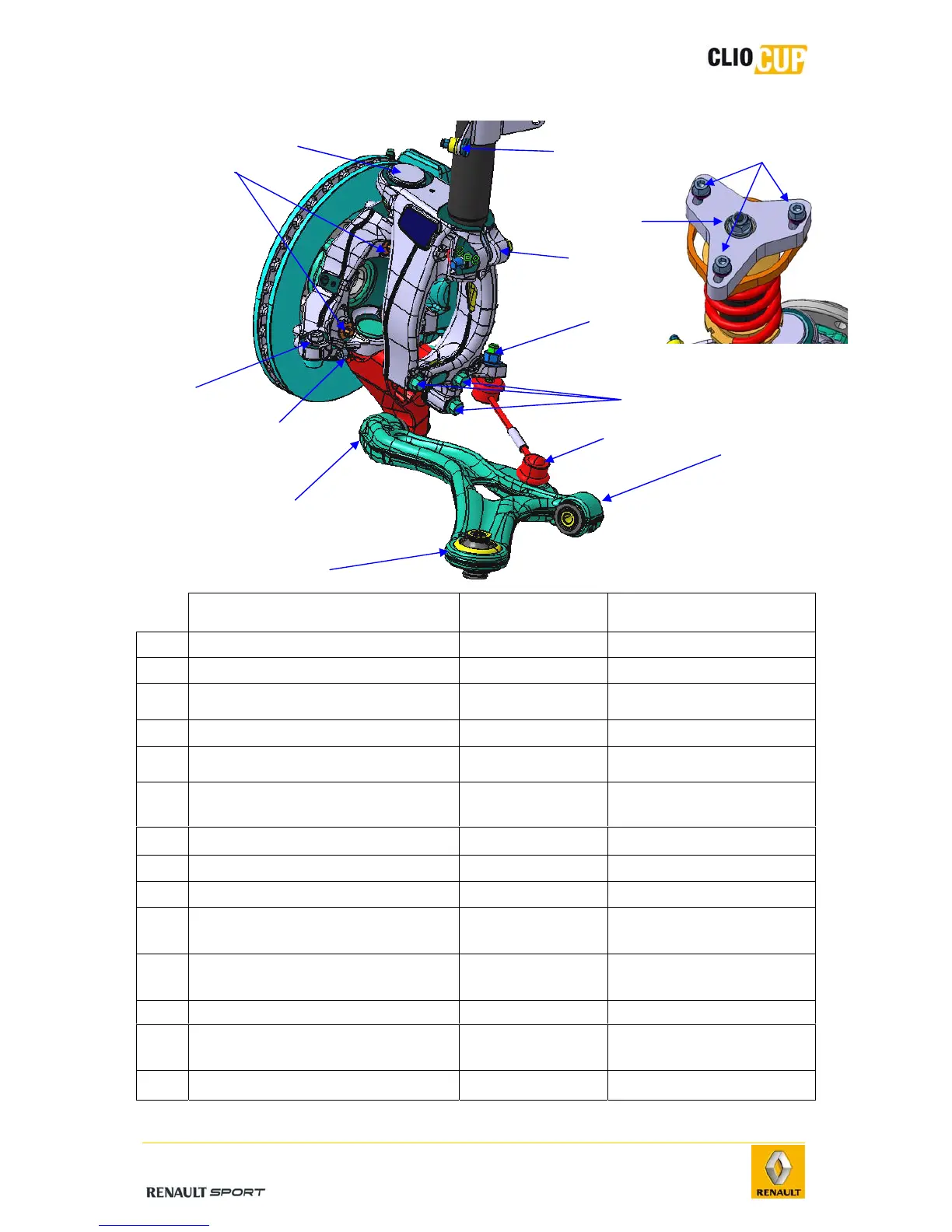

Renault Clio Cup - Page 66

2010 Release
E-66
Parts
Tightening
torque in Nm
Specific
recommendations
(1) Point A bolt 80
(2) Point B bolt 80
(3)
EE’ support nut on wishbone
(point E)
105 Bolt class: 12.9
(4) EE’ support bolt on pivot holder 105
(5)
EE’ support bolts on pivot (point
E’)
26.5
(6)
Pivot ball joint nut on pivot
holder (point F’)
140
(7) Support strut bolt on pivot holder 105
(8) Point F plate bolt on body 100
(9) Upper shock absorber nut 105
(10)
Anti-rotation tie-rod mounting
bolt on pivot holder
100
(11)
Anti-rotation tie-rod mounting
bolt on wishbone
100
(12) Point H ball joint nut 37
(13)
Anti-roll bar tie-rod mounting bolt
on support strut
44
(14) Wheel bearing mounting bolt 105
1
4
2
3
6
5
7
12
11
10
13
14
8
9
