Renault Clio Cup - Page 67

2010 Release
E-67

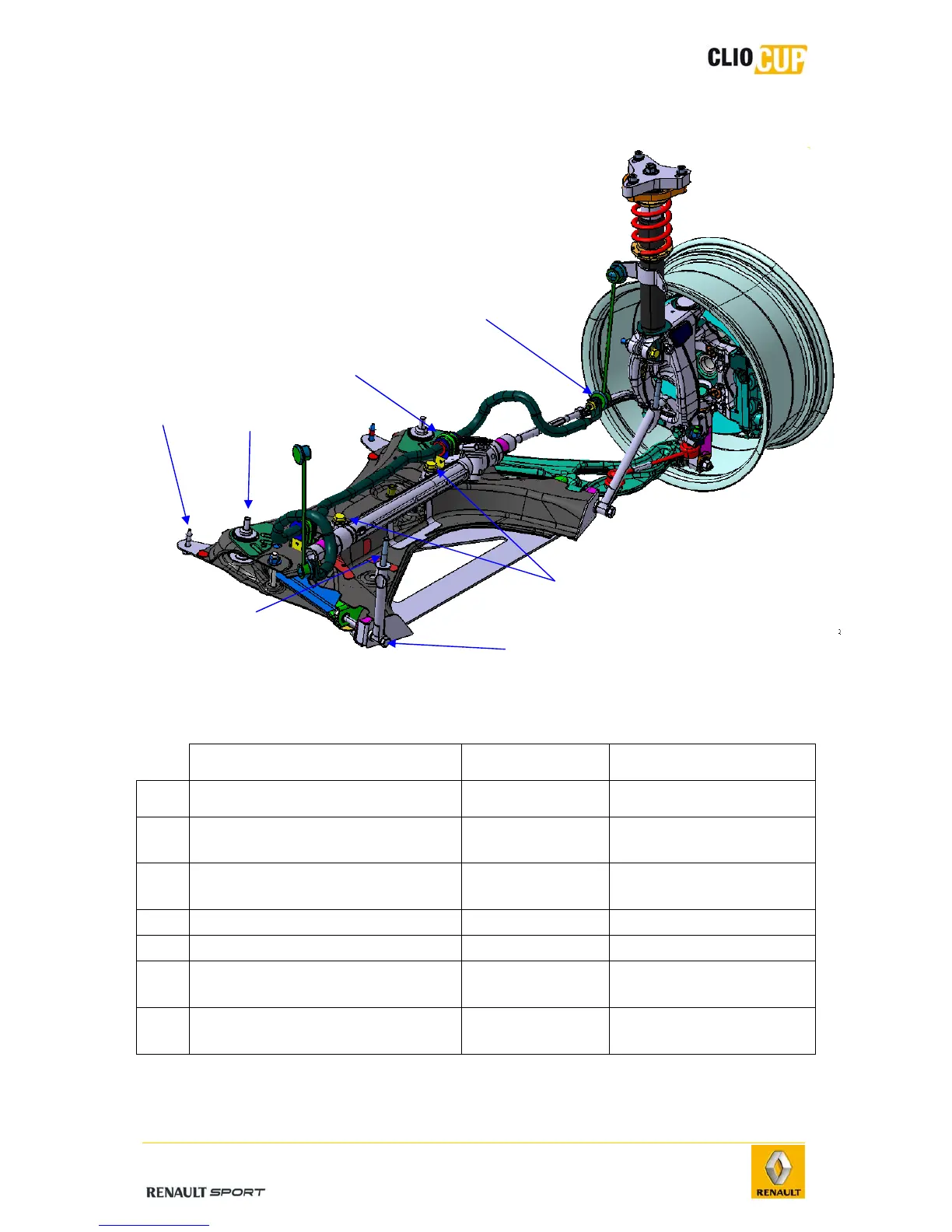

Parts
Tightening
torque in Nm
Specific
recommendations
(14)
Anti-roll bar mounting bolt on tie-
rod
44
(15)
Anti-roll bar bearing bolts on
subframe
21
(16)
Steering unit mounting bolt on
subframe
24
(17) QQ’ tie-rod bolt on subframe 80
(18) QQ’ tie-rod bolt on body 105
(19)
Reinforcement plate mounting bolt
on body (point P’)
120
(20)
Rear subframe mounting bolt on
body (point P)
120
17
16
15
14
19
18
20
