10A-4
ENGINE AND CYLINDER BLOCK ASSEMBLY
Crankshaft seal at timing end Removal - Refitting
K9K
10A
II - OPERATION FOR REMOVAL OF PART
CONCERNED

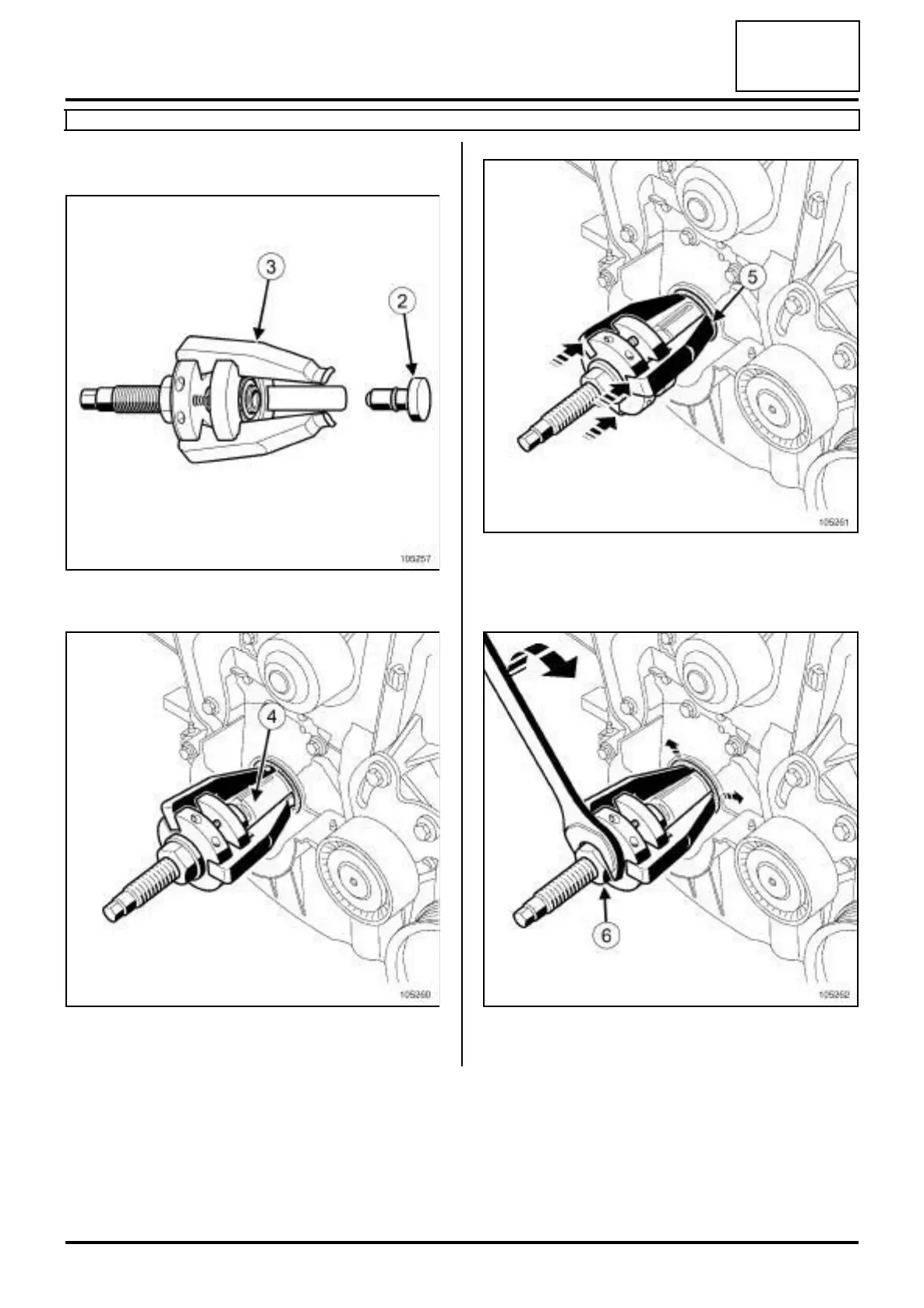

a Fit the end piece (2) onto the tool (Mot. 1577) (3) .
a Position the jaws of the tool (Mot. 1577) onto the
crankshaft nose (4) .
a Push on the tool (Mot. 1577) until contact is made
between the ends (5) of the jaws and the crankshaft
seal.
a Separate the jaws by screwing the nut (Mot. 1577)
of the tool (6) .
105257
105260
105261
105262
