Renault K4M - Cooling; Water Pump Inlet Pipe: Removal - Refitting

19A-83
COOLING
Water pump inlet pipe: Removal - Refitting
K4M
19A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Remove:
-the engine cover,
-the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres),
-the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting)
(55A, Exterior protection),
-the engine undertray bolts,
-the engine undertray,
-the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection).
a Drain the cooling system (see 19A, Cooling, Coo-
ling circuit: Draining - Refilling, page 19A-17) .

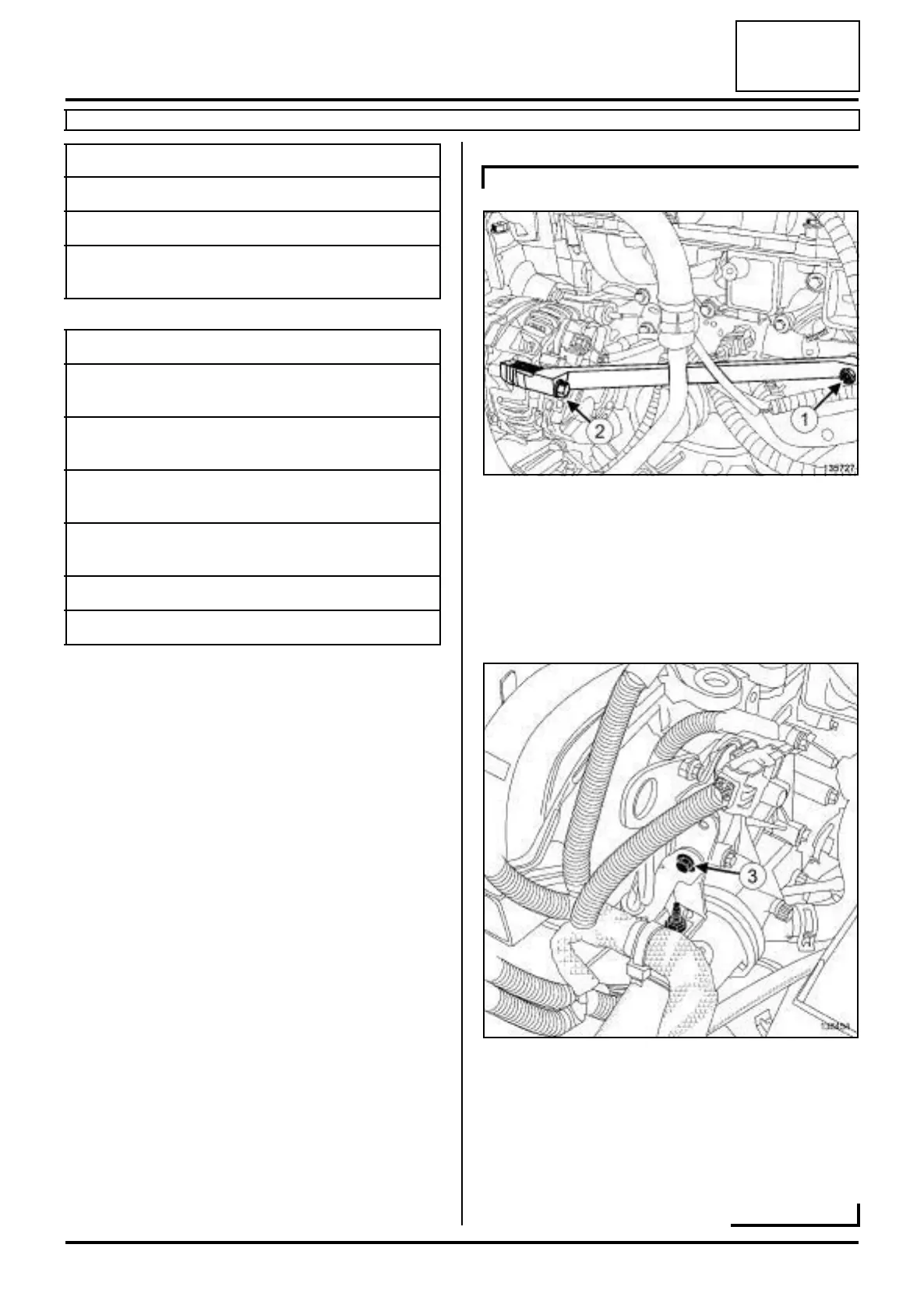

a Remove:
- the alternator strut nut (1) from the cylinder block,
- the alternator strut bolt (2) from the alternator,
- the alternator strut,
- the washer located behind the bracket.
a Remove:
- the dipstick,
- the dipstick guide bolt (3) from the lifting eye,
- the dipstick guide.
Essential special tooling
Mot. 1202-02 Pliers for small hose clips.
Mot. 1202-01 Pliers for large hose clips.
Mot. 1448 Long nose pliers for hose
clips.
Tightening torquesm
coolant pump inlet pipe
bolt
22 N.m
coolant pump inlet pipe
bolts
25 N.m
bolt of the alternator
strut on the alternator
25 N.m
alternator strut nut on
the cylinder block
25 N.m
dipstick guide tube bolt 10 N.m
dipstick guide tube bolts 10 N.m
K4M, and 848
135727
136454
