Renault K4M - Crankshaft Seal at Gearbox End: Removal - Refitting

10A-13
ENGINE AND CYLINDER BLOCK ASSEMBLY
Crankshaft seal at gearbox end : Removal - Refitting
K4M
10A
II - OPERATION FOR REMOVAL OF PART
CONCERNED

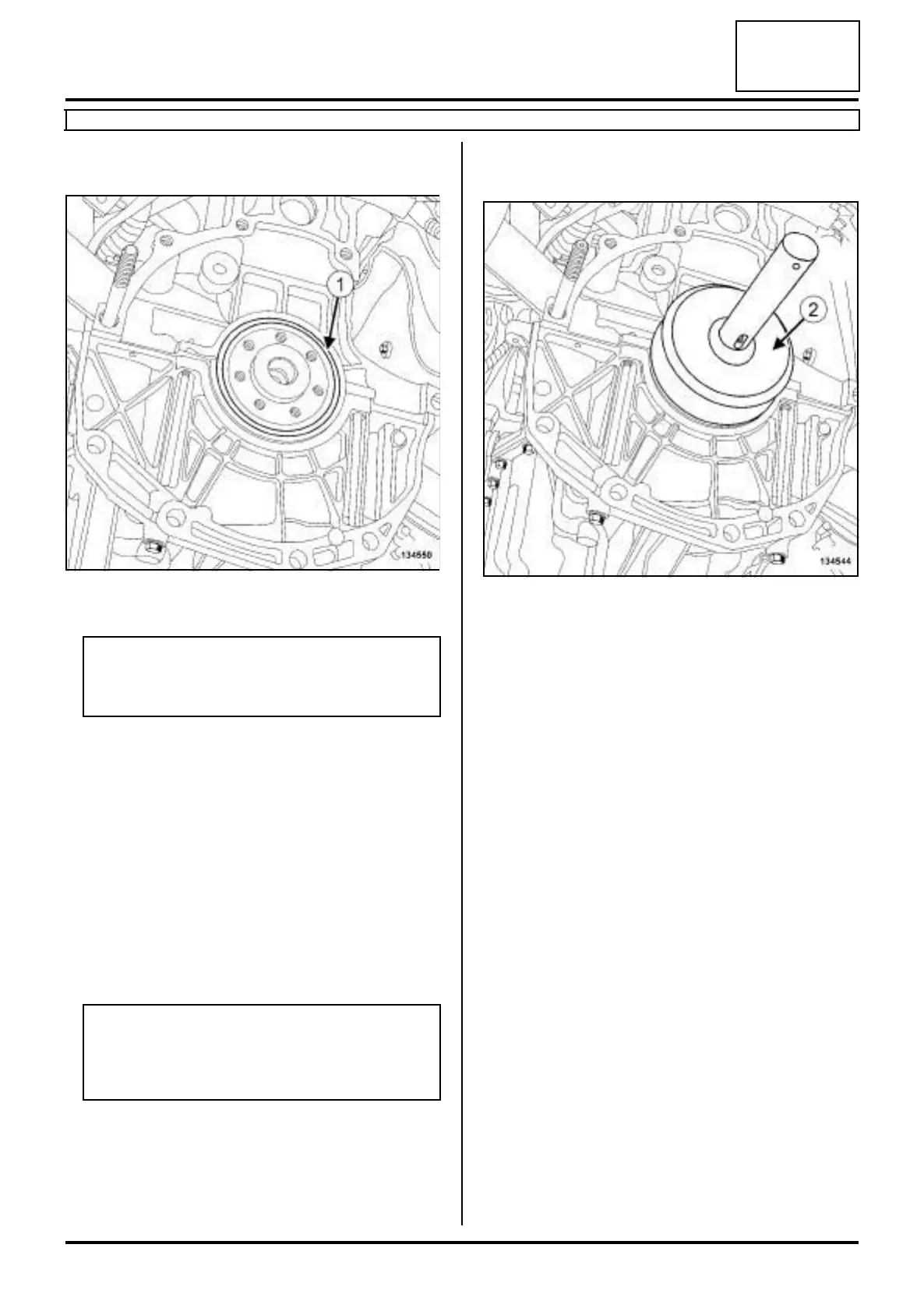

a Remove the crankshaft seal (1) using a screwdriver.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Crankshaft seal on
gearbox end (10,03,03,05).
a Use SURFACE CLEANER (see Vehicle: Parts
and ingredients for the repairwork) (04B, Consu-
mables - Products) to clean and degrease:
-the seal mating face on the crankshaft,
-the seal housing on the cylinder block.
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit the crankshaft seal using the (Mot. 1129-01)
(2) .
III - FINAL OPERATION
a Refit:
- the flywheel (see 10A, Engine and cylinder block
assembly, Flywheel: Removal - Refitting, page
10A-157) ,
- the « pressure plate - disc » assembly (see Me-
chanism / Disk: Removal - Refitting) (20A,
Clutch),
- the manual gearbox (see Manual gearbox: Remo-
val - Refitting) (21A, Manual gearbox),
- the left-hand suspended engine mounting (see
19D, Engine mounting, Left-hand suspended
engine mounting: Removal - Refitting, page
19D-1) ,
- the front axle subframe (see Front axle sub-fra-
me: Removal - Refitting) (31A, Front axle compo-
nents),
- the radiator mounting cross member (see Radiator
support cross member: Removal - Refitting)
(31A, Front axle components),
- the new differential output seals (see Differential
output seal: Removal - Refitting) (21A, Manual
gearbox),
134550
Note:
Ta ke care not to damage the seal mating face on
the crankshaft.
WARNING
To ensure proper sealing, the gasket surfaces
must be clean, dry and not greasy (avoid any fin-
ger marks).
134544
