13B-136
DIESEL INJECTION
Diesel injector: Removal - Refitting
K9K, and 832
13B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove the front engine cover.
a Disconnect the battery (see Battery : Removal -
Refitting) (80A, Battery).
a Remove:
-the diesel injector fuel return rail (see 13B, Diesel
injection, Diesel injector fuel return rail: Remo-
val - Refitting, page 13B-63) ,
-the high pressure pipe(s) between the injector rail
and the diesel injector(s) (see 13B, Diesel injec-
tion, High-pressure pipe between the rail and
injector: Removal - Refitting, page 13B-87) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:

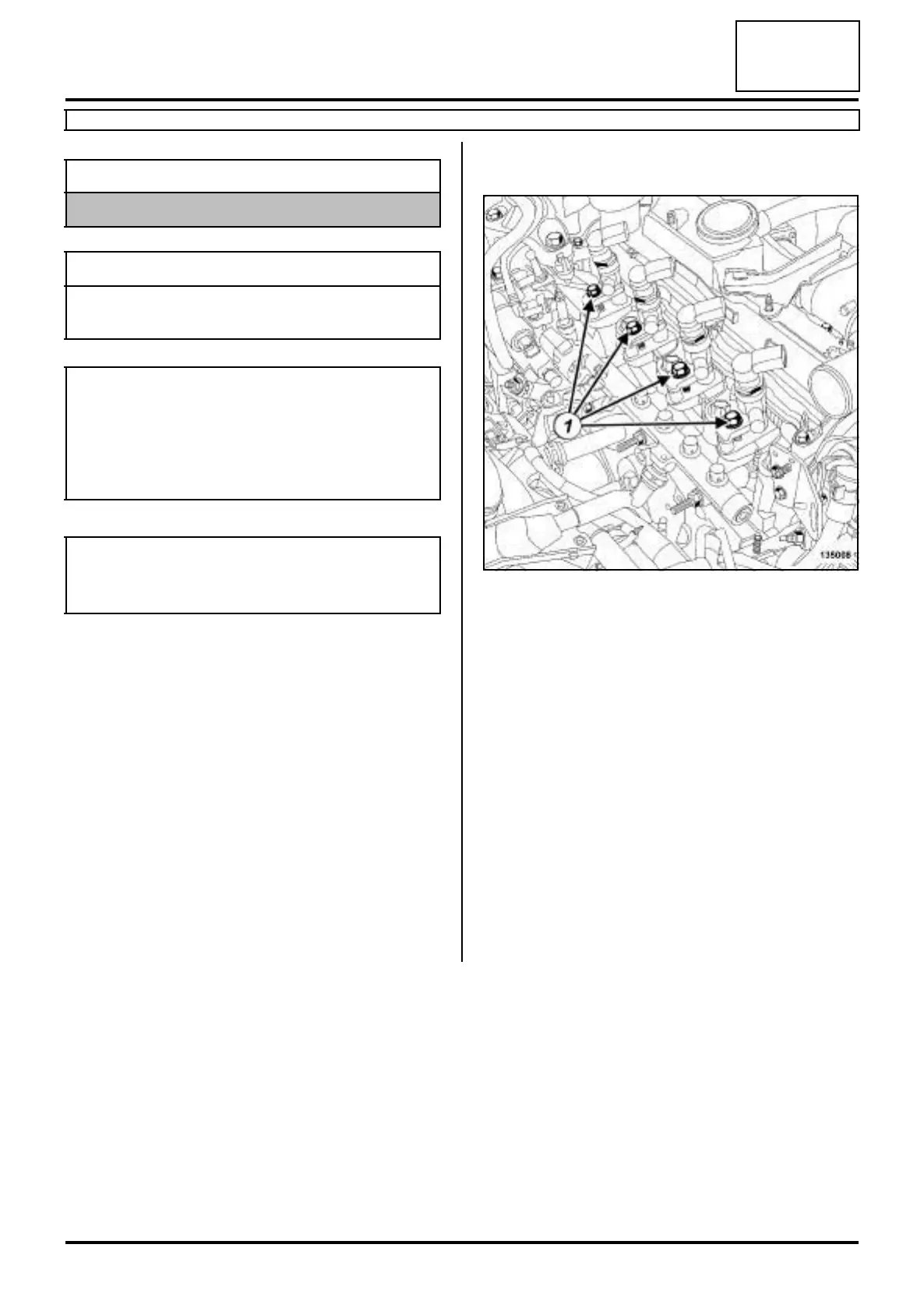

-the bolt (1) from the bracket on the diesel injec-
tor(s) concerned,
- the bracket of the diesel injector(s) concerned,
- the spacer of the diesel injector bracket concerned,
- the diesel injector(s) concerned,
-the compression washer located at the bottom of
the diesel injector well concerned.
Essential equipment
compressed air nozzle
Tightening torquesm
bolt of the diesel injec-
tor(s)
30 N.m
IMPORTANT
To avoid all risk of damage to the systems, apply
the safety and cleanliness instructions and opera-
tion recommendations before carrying out any
repair (see 13B, Diesel injection, Diesel injec-
tion: Precautions for repair, page 13B-1) .
IMPORTANT
Wear leaktight gloves (Nitrile type) for this opera-
tion.
135008
