DIESEL INJECTION
Diesel injector: Removal - Refitting
K9K, and 832
13B
a
a Remove the diesel injector(s) from the well.
a Fit the appropriate blanking plug on the diesel injec-
tor nose.
REFITTING
I - REFITTING PREPARATION OPERATION
a
a parts always to be replaced: injector seal (11,11,
02,02).
Cleaning the injector well and the injector
a
a Soak the diesel injector in INJECTOR CLEANING
PRODUCT (see Vehicle: Parts and ingredients
for the repairwork) (04B, Consumables - Pro-
ducts).
a Clean the diesel injector nozzle:
- either using CLEANING CLOTHS (see Vehicle:
Parts and ingredients for the repairwork) (04B,
Consumables - Products) soaked in INJECTOR
CLEANING PRODUCT (see Vehicle: Parts and
ingredients for the repairwork) (04B, Consuma-
bles - Products),
- or using a small brush with plastic bristles.
a Wipe using CLEANING RAGS (see Vehicle: Parts
and ingredients for the repairwork) (04B, Consu-
mables - Products).

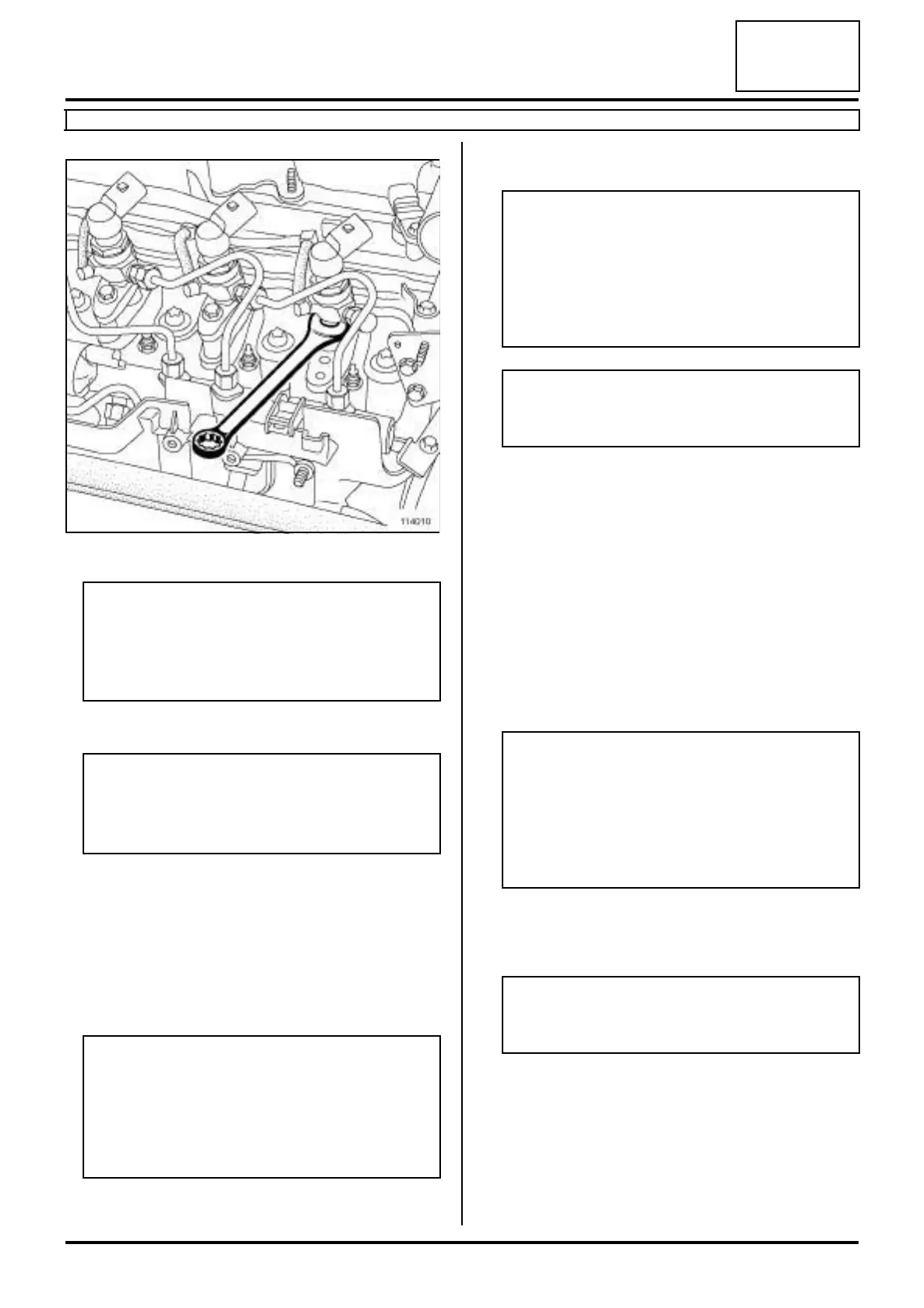

114010
Note:
If a diesel injector is stuck in its well and does not
come out, turn the diesel injector at the flat sur-
face of the diesel injector clamp using a 13 mm
open-ended spanner.
Note:
If reusing the diesel injector(s) keep them in a
hermetically sealed bag throughout the removal
operation.
WARNING
Do not remove the blanking plugs from each
component until the last moment.
Also, do not remove the components from their
packaging until they are to be fitted to the vehi-
cle.
WARNING
It is strictly forbidden to clean the injectors with:
-a wire brush,
- an emery cloth,
- an ultrasonic cleaner.
IMPORTANT
Wear leaktight gloves (Nitrile type) for this opera-
tion.
WARNING
It is strictly forbidden to clean the injectors with:
-a wire brush,
- an emery cloth,
- an ultrasonic cleaner.
IMPORTANT
Wear leaktight gloves (Nitrile type) for this opera-
tion.
