Renault K4M - Intercooler: Removal - Refitting

12B-37
TURBOCHARGING
Intercooler: Removal - Refitting
F4R or F9Q or K9K
12B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres),
-the engine undertray bolts,
-the engine undertray,
-the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting)
(55A, Exterior protection),
-the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection).
a Remove:
-the right-hand headlight (see Front headlight: Re-
moval - Refitting) (80B, Headlights),
-the front right-hand support of the front bumper
(see Front bumper support: Removal - Refit-
ting) (42A, Front upper structure).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:
-the upper air deflector,
-the side air deflectors.

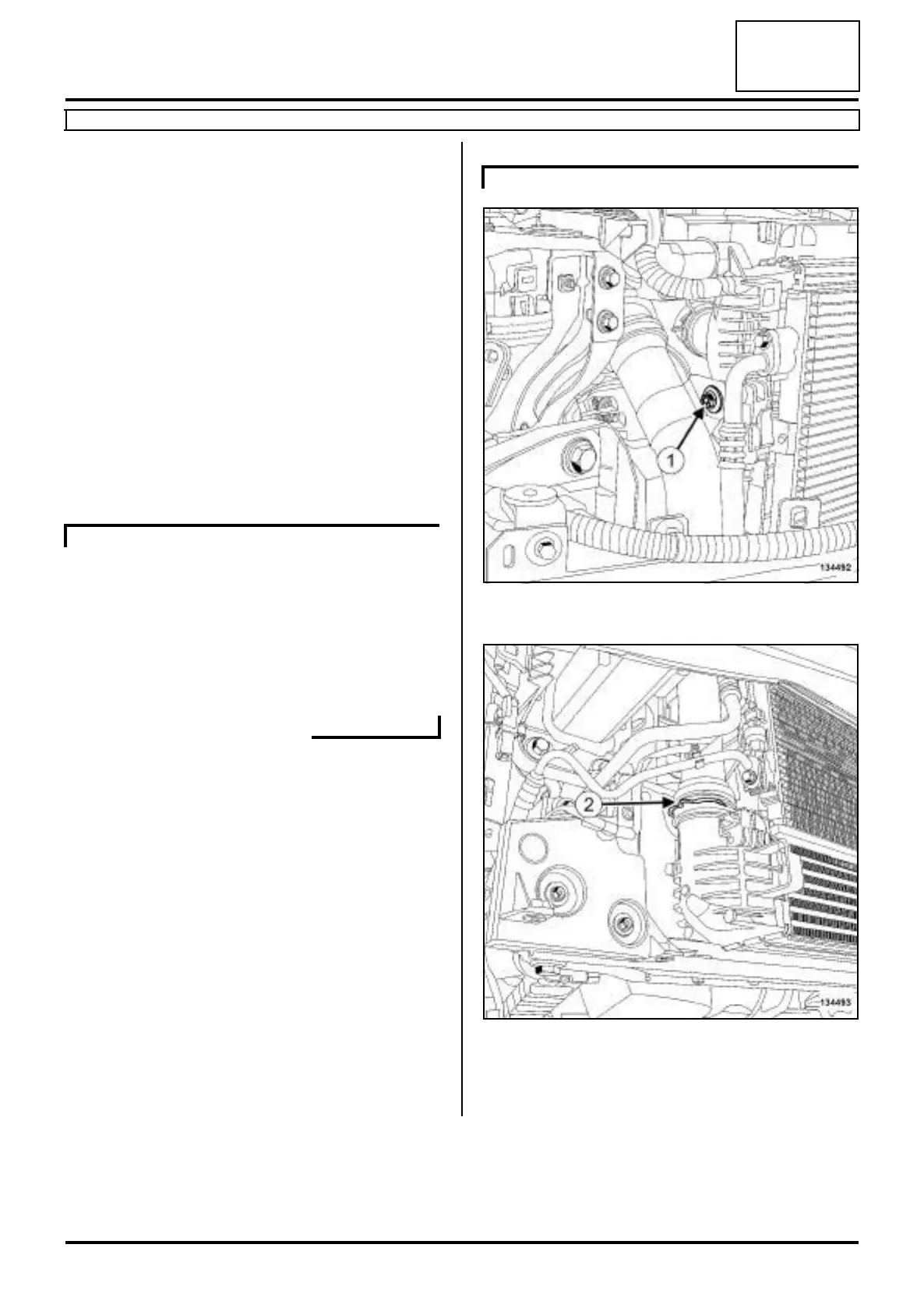

a Remove the bolt (1) on the intercooler air inlet pipe.
a Remove:
- the clip (2) from the intercooler air inlet pipe,
- the air pipe at the intercooler inlet.
K9K
K9K
134492
134493
