13B-54
DIESEL INJECTION
Fuel flow actuator: Removal - Refitting
K9K, and 830
13B
REMOVAL
I - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove the engine cover.
a Disconnect the battery (see Battery : Removal -
Refitting) (80A, Battery).
a Remove the turbocharger outlet air pipe (see 12B,
Turbocharging, Intercooler air inlet pipe: Remo-
val - Refitting, page 12B-41) .

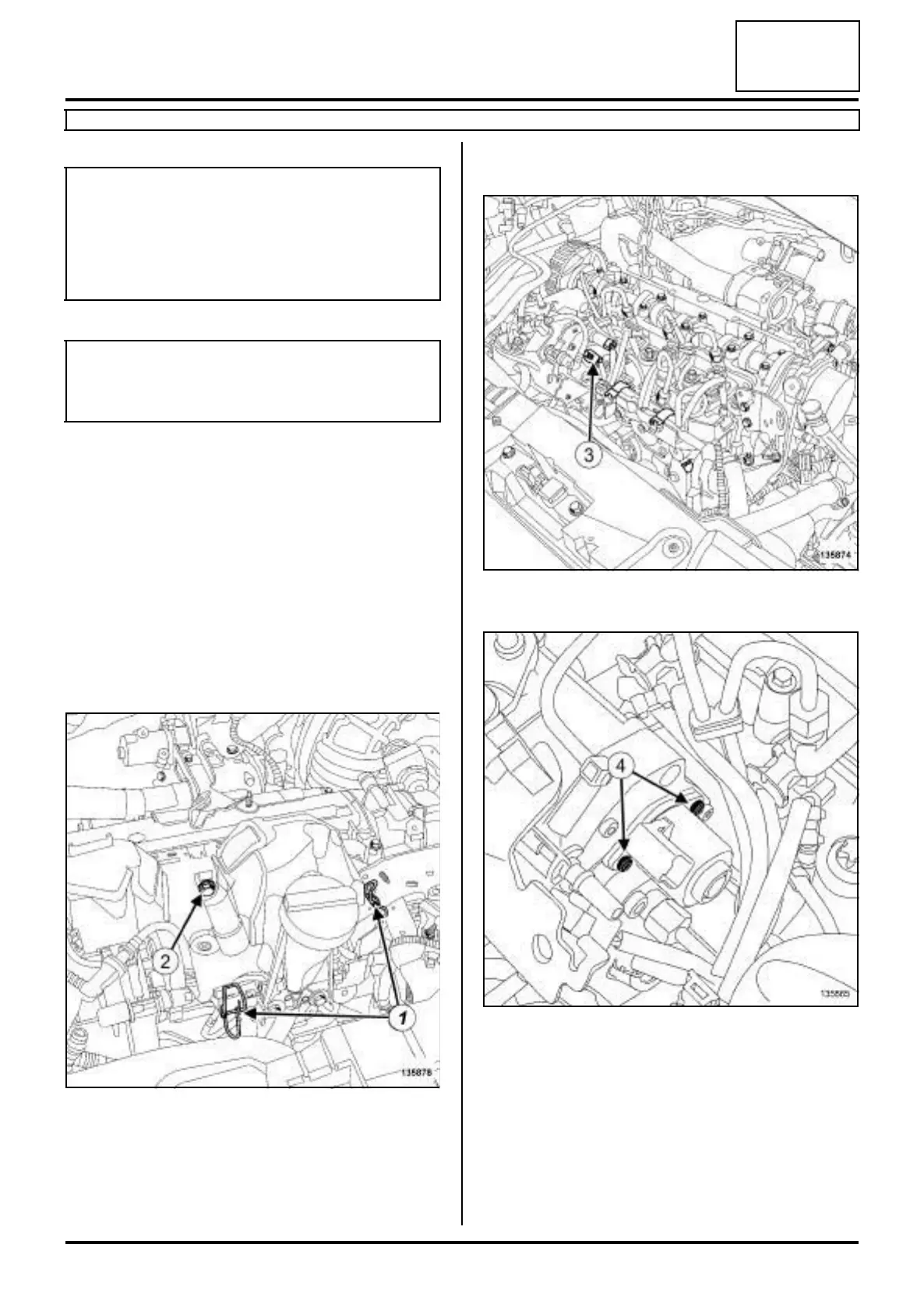

a Unclip the injector rail protector cover at (1) .
a Remove:
-the injector rail protector cover bolt (2) ,
-the injection rail protector cover,
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Disconnect the flow actuator connector (3) .
a Remove:
- the flow actuator bolts (4) ,
- the fuel flow actuator
IMPORTANT
To avoid all risk of damage to the systems, apply
the safety and cleanliness instructions and opera-
tion recommendations before carrying out any
repair (see 13B, Diesel injection, Diesel injec-
tion: Precautions for repair, page 13B-1) .
Note:
Ensure that you have a new flow actuator before
opening up the fuel circuit.
135878
135874
135865
