12B-38
TURBOCHARGING
Intercooler: Removal - Refitting
F4R or F9Q or K9K
12B

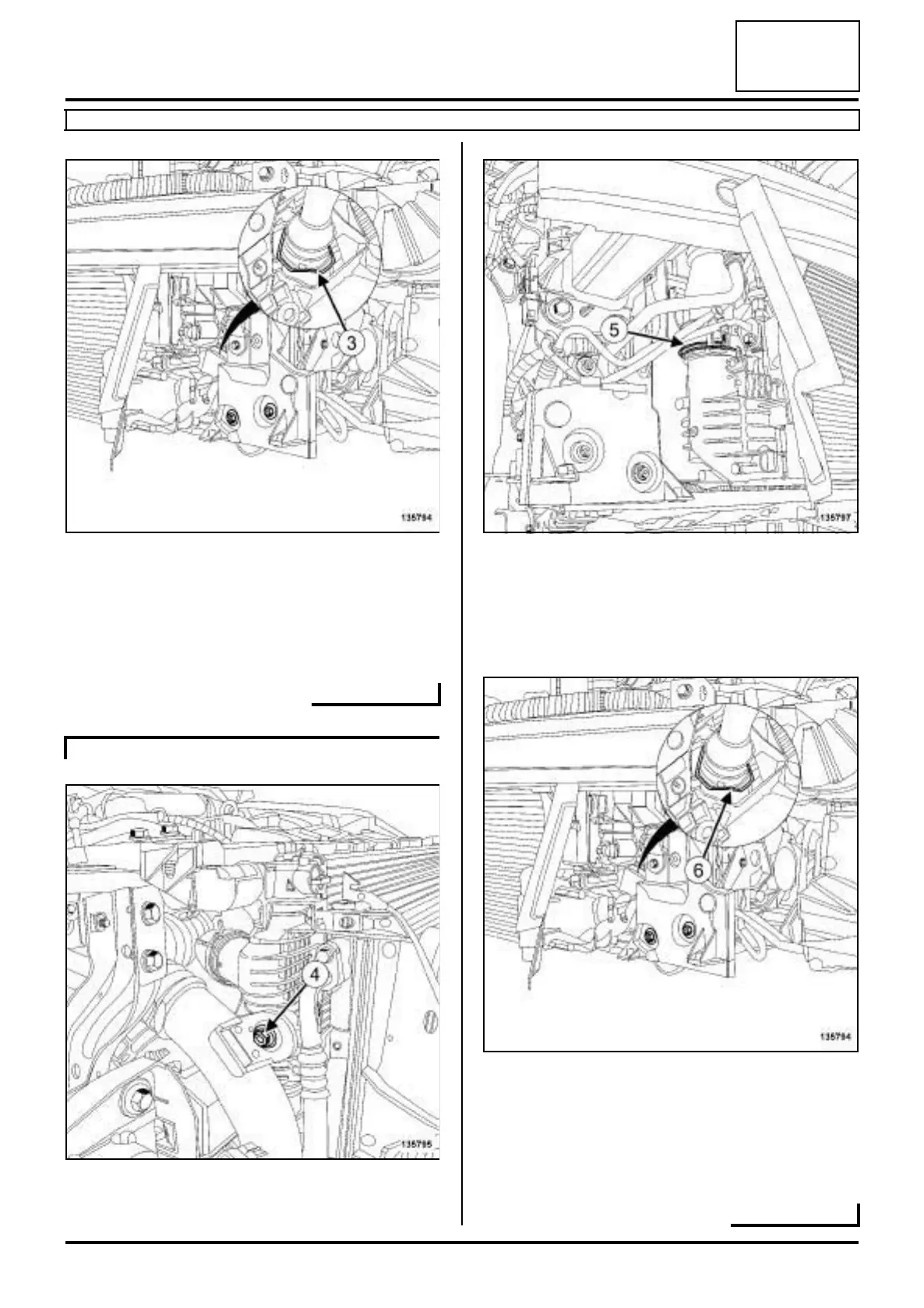

a Remove:
-the clip (3) on the intercooler air outlet pipe,
-the air pipe at the intercooler outlet.
a Remove the bolt (4) from the intercooler air outlet pi-
pe.
a Remove:
- the clip (5) on the intercooler air outlet pipe,
- the air pipe at the intercooler outlet.
a Remove:
- the clip (6) from the intercooler air inlet pipe,
- the air pipe at the intercooler inlet.
135794
F4R or F9Q
135795
135797
135794
