10A-17
ENGINE AND CYLINDER BLOCK ASSEMBLY
Crankshaft seal at gearbox end : Removal - Refitting
K9K
10A

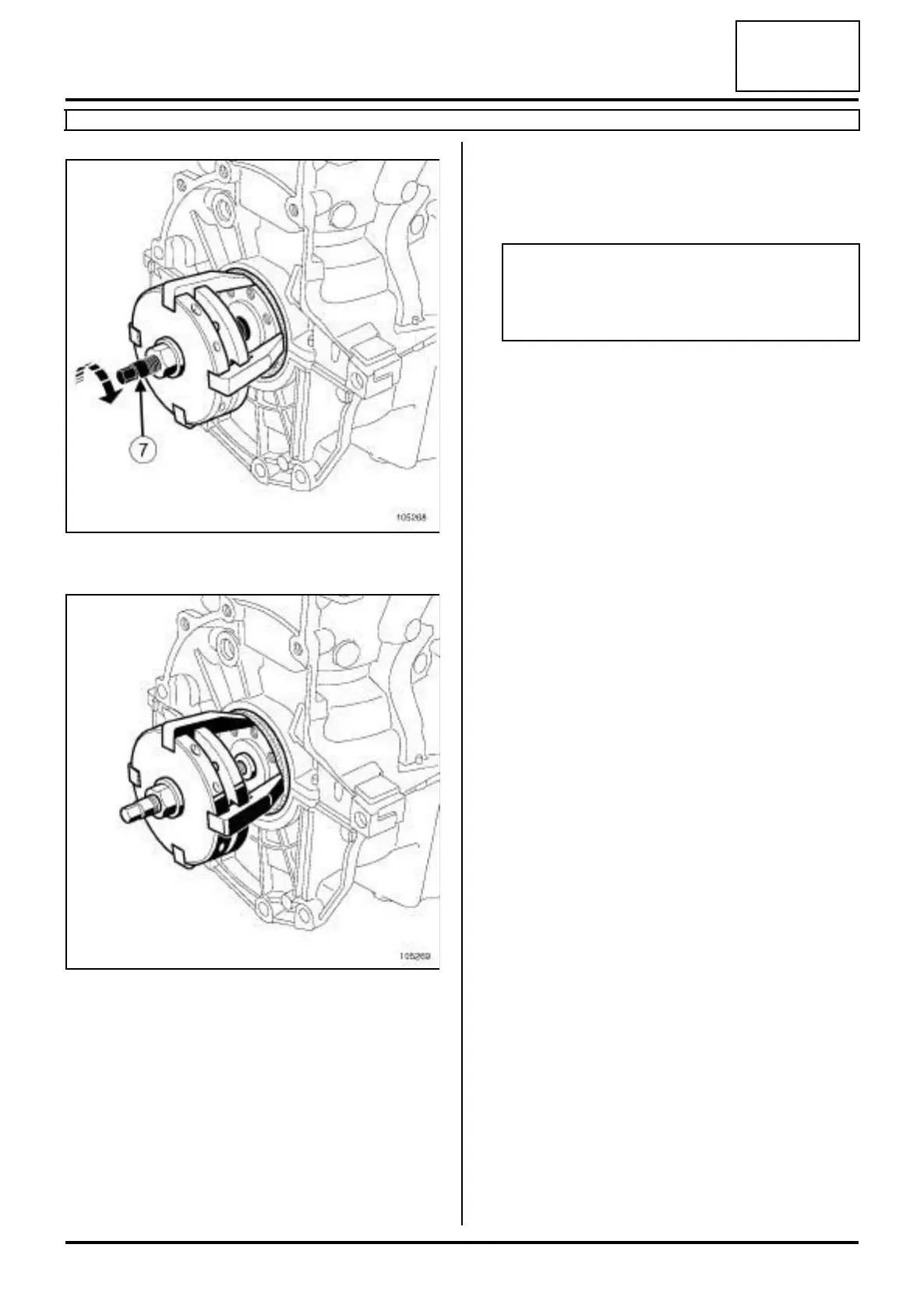

a Screw down the threaded rod (7) of the (Mot. 1579).
a Remove the crankshaft seal using the tool (Mot.
1579).
REFITTING
I - REFITTING PREPARATION OPERATION
a
a Use SURFACE CLEANER (see Vehicle: Parts
and ingredients for the repairwork) (04B, Consu-
mables - Products) to clean and degrease:
- the crankshaft seal mating face on the crankshaft,
- the crankshaft seal housing in the cylinder block.
a parts always to be replaced: Differential output
seal (12,01,05,10).
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit the crankshaft seal on the gearbox side (see
Cylinder block: Refitting) (Technical Note 6006A,
10A, Engine and peripherals).
III - FINAL OPERATION
a Refit:
- the flywheel (see 10A, Engine and cylinder block
assembly, Flywheel: Removal - Refitting, page
10A-157) ,
- the clutch disc and pressure plate (see Mecha-
nism / Disk: Removal - Refitting) (20A, Clutch),
-the hydraulic clutch release bearing (see Clutch
thrust bearing: Removal - Refitting) (20A,
Clutch),
- the manual gearbox (see Manual gearbox: Remo-
val - Refitting) (21A, Manual gearbox),
- the left-hand suspended engine mounting (see
19D, Engine mounting, Left-hand suspended
engine mounting: Removal - Refitting, page
19D-1) ,
- the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
- the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
105268
105269
WARNING
To ensure proper sealing, the gasket surfaces
must be clean, dry and not greasy (avoid any fin-
ger marks).
