10A-19
ENGINE AND CYLINDER BLOCK ASSEMBLY
Crankshaft seal at gearbox end : Removal - Refitting
F9Q
10A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine cover,
-the engine undertray bolts,
-the engine undertray,
-the battery (see Battery : Removal - Refitting)
(80A, Battery),
-the battery tray (see Battery tray: Removal - Re-
fitting) (80A, Battery),
-the air filter box (see 12A, Fuel mixture, Air filter
unit: Removal - Refitting, page 12A-4) (12A, Fuel
mixture),
-the hydraulic clutch control pipe (see Clutch cir-
cuit: Removal - Refitting) (37A, Mechanical com-
ponent controls),
-the starter (see 16A, Starting - Charging, Starter:
Removal - Refitting, page 16A-16) ,
-the windscreen wiper blade arms (see Winds-
creen wiper arm: Removal - Refitting) (85A, Wi-
ping - Washing),
-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
-the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres),
-the front wheel arch liners (see Front wheel arch
liner: Removal - Refitting) (55A, Exterior protec-
tion).
a Drain the manual gearbox (see Manual gearbox
oil: Draining - Refilling) (21A, Manual gearbox).
a Remove:
-the front right-hand wheel driveshaft (see Front ri-
ght-hand wheel driveshaft: Removal - Refitting)
(29A, Driveshaft),
- the front left-hand wheel driveshaft (see Front left-
hand wheel driveshaft: Removal - Refitting)
(29A, Driveshaft),
- the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
- the radiator mounting cross member (see Radiator
support cross member: Removal - Refitting)
(41A, Front lower structure),
- the engine tie-bar (see 19D, Engine mounting,
Lower engine tie-bar: Removal - Refitting, page
19D-33) ,
- the front axle subframe (see Front axle sub-fra-
me: Removal - Refitting) (31A, Front axle compo-
nents),
- the left-hand suspended engine mounting (see
19D, Engine mounting, Left-hand suspended
engine mounting: Removal - Refitting, page
19D-1) ,
- the manual gearbox (see Manual gearbox: Remo-
val - Refitting) (21A, Manual gearbox),
- the « clutch pressure plate - disc » assembly (see
Mechanism / Disk: Removal - Refitting) (21A,
Manual gearbox),
- the flywheel (see 10A, Engine and cylinder block
assembly, Flywheel: Removal - Refitting, page
10A-157) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED

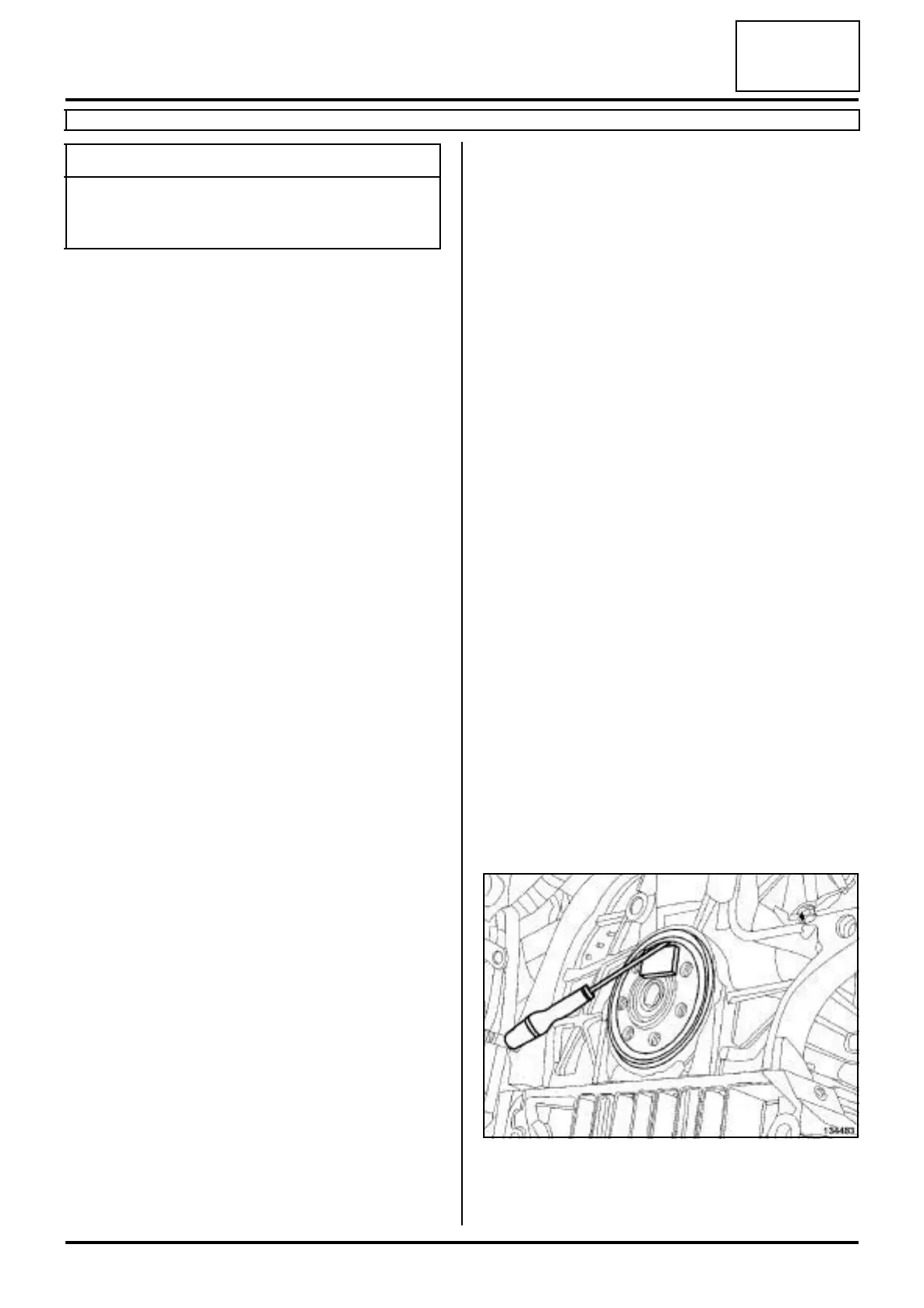

a Remove the crankshaft seal on the gearbox side
using a FLAT HEAD SCREWDRIVER and a woo-
den block so as not to damage the crankshaft.
Essential special tooling
Mot. 991-01 Crankshaft oil seal fitting tool
(flywheel end) (seal
85 x 105 x 8).
134483
