11A-144
TOP AND FRONT OF ENGINE
Cylinder head: Removal - Refitting
K9K
11A

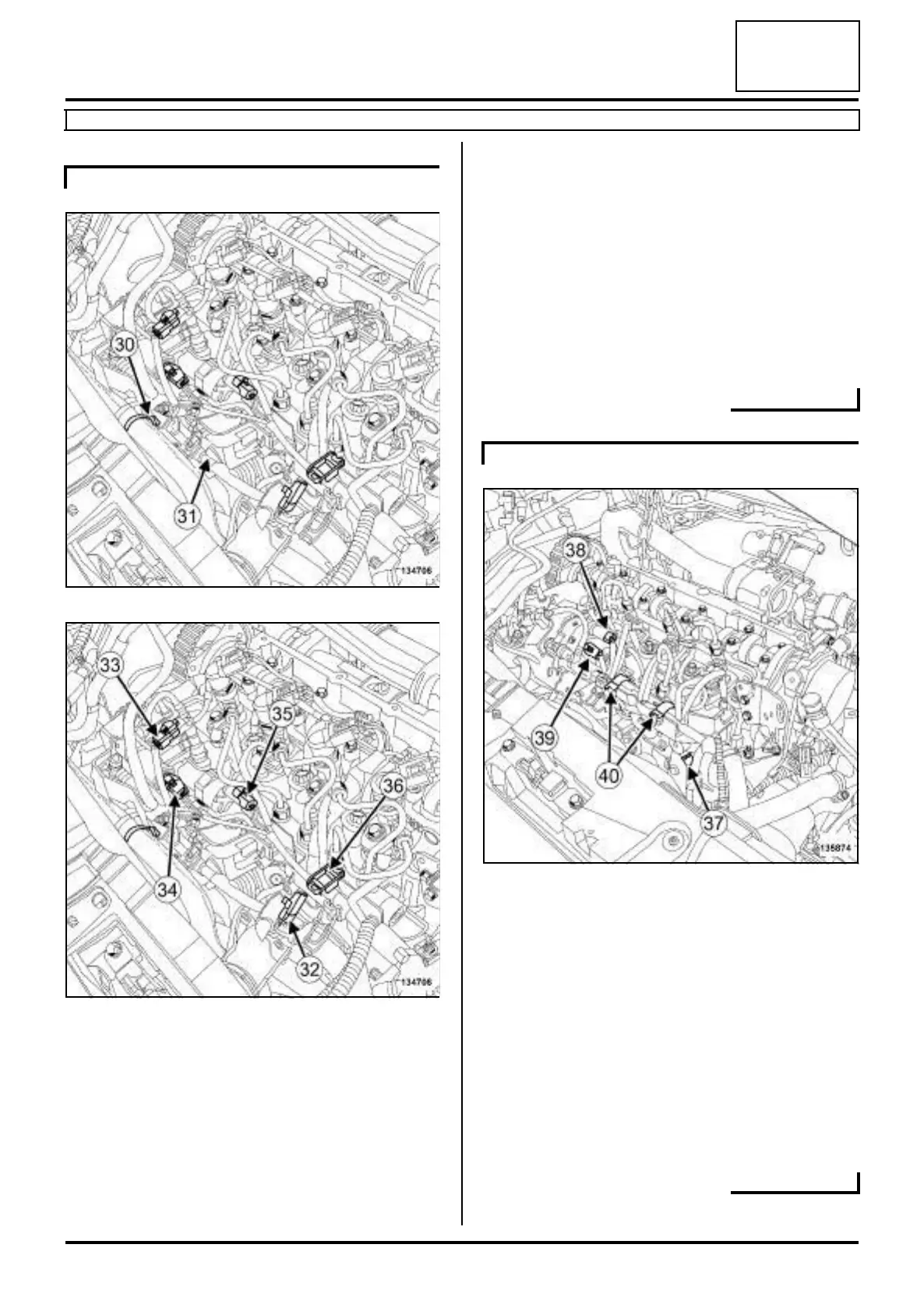

a Unclip:
-the expansion bottle bottom cooling hose from the
high pressure pump protector (30) ,
-the alternator wiring from the injector rail protector
at (31) .
a Disconnect:
-the connector (32) from the injector rail pressure
sensor,
- the fuel temperature sensor connector (33) ,
-the connector (34) from the fuel pressure regula-
tion solenoid valve,
- the connector (35) from the fuel flow regulation so-
lenoid valve,
- all heater plug connectors,
- the connector for each diesel injector.
a Unclip the injection wiring clip (36) .
a Disconnect:
- the connector (37) from the injector rail pressure
sensor,
- the fuel temperature sensor connector (38) ,
- the connector (39) from the fuel flow regulation so-
lenoid valve,
- all heater plug connectors,
- the connector for each diesel injector.
a Unclip the clips (40) of the injection wiring.
a Separate the injection wiring.
K9K, and 832
134706
134706
K9K, and 830
135874
