Exhaust manifold: Removal - Refitting
K9K, and 836
12A
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit:
-the exhaust manifold gasket,
-the exhaust manifold.

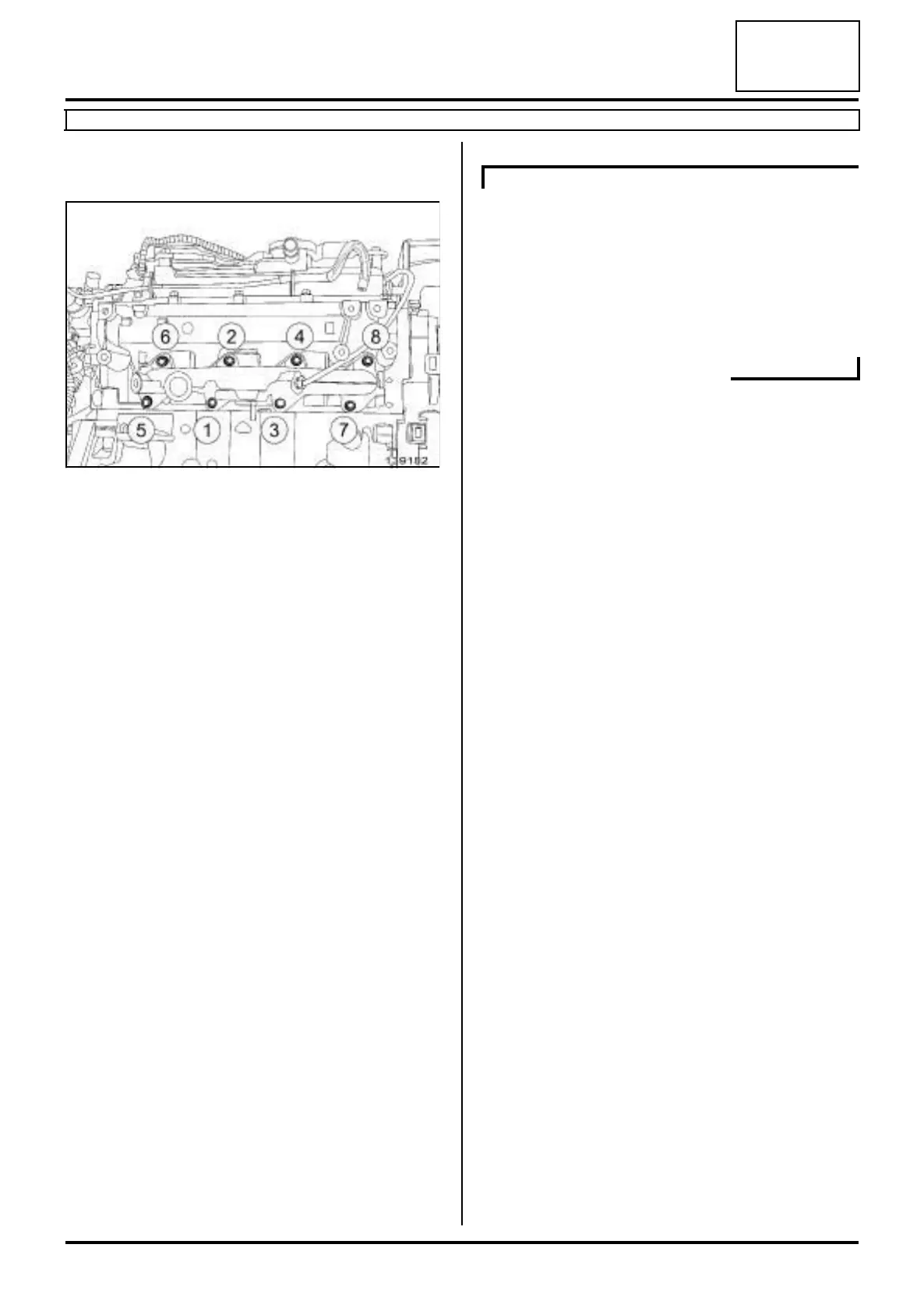

a Torque tighten in order the exhaust manifold nuts
(26 N.m).
III - FINAL OPERATION
a Refit:
-the exhaust gas temperature sensor (see 19B, Ex-
haust, Exhaust gas temperature sensor: Remo-
val - Refitting, page 19B-50) ,
-the turbocharger (see 12B, Turbocharging, Tur-
bocharger: Removal - Refitting, page 12B-8) ,
-the exhaust gas recirculation assembly (see 14A,
Antipollution, Exhaust gas recirculation as-
sembly: Removal - Refitting, page 14A-18) ,
-the exhaust gas recirculation rigid pipe (see 14A,
Antipollution, Exhaust gas recirculation rigid
pipe: Removal - Refitting, page 14A-30) ,
-the turbocharger oil return pipe (see 12B, Turbo-
charging, Turbocharger oil pipe: Removal - Re-
fitting, page 12B-22) ,
-the turbocharger oil supply pipe (see 12B, Turbo-
charging, Turbocharger oil pipe: Removal - Re-
fitting, page 12B-22) ,
-the exhaust gas duct at the turbocharger outlet
(see 12B, Turbocharging, Turbocharger outlet
exhaust gas duct: Removal - Refitting, page
12B-49) .
a Refit:
- the scoop under the centre section of the scuttle
panel grille (see Scoop under scuttle panel
grille: Removal - Refitting) ,
- the scuttle panel grille centre section (see Scuttle
panel grille: Removal - Refitting) .
a Refit:
- the engine undertray,
- the engine cover.
