10A-40
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine oil: Draining - Refilling
K9K
10A
I - RECOMMENDATIONS FOR REPAIR
a There is no direction of fitting for a seal fitted with a
rubber lip.
a
II - PARTS AND CONSUMABLES FOR THE REPAIR
a parts always to be replaced: Engine oil sump
drain plug seal (10,03,01,04).
a Consumable:
- Engine oil (see Engine oil: Specifications) (Tech-
nical Note 6013A, 04A, Lubricants).
III - OIL SERVICE
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
Essential special tooling
Mot. 1018 Sump plug tool.
Essential equipment
oil recovery container
oil draining wrench
torque wrench
8 mm square drain plug socket
Tightening torquesm
the drain plug 20 N.m
Engine
Average oil capacity
(adjusting using dipstick) (l)
Oil change
without filter
replacement
Oil change with
filter replace-
ment
K9K 4.4 4.5

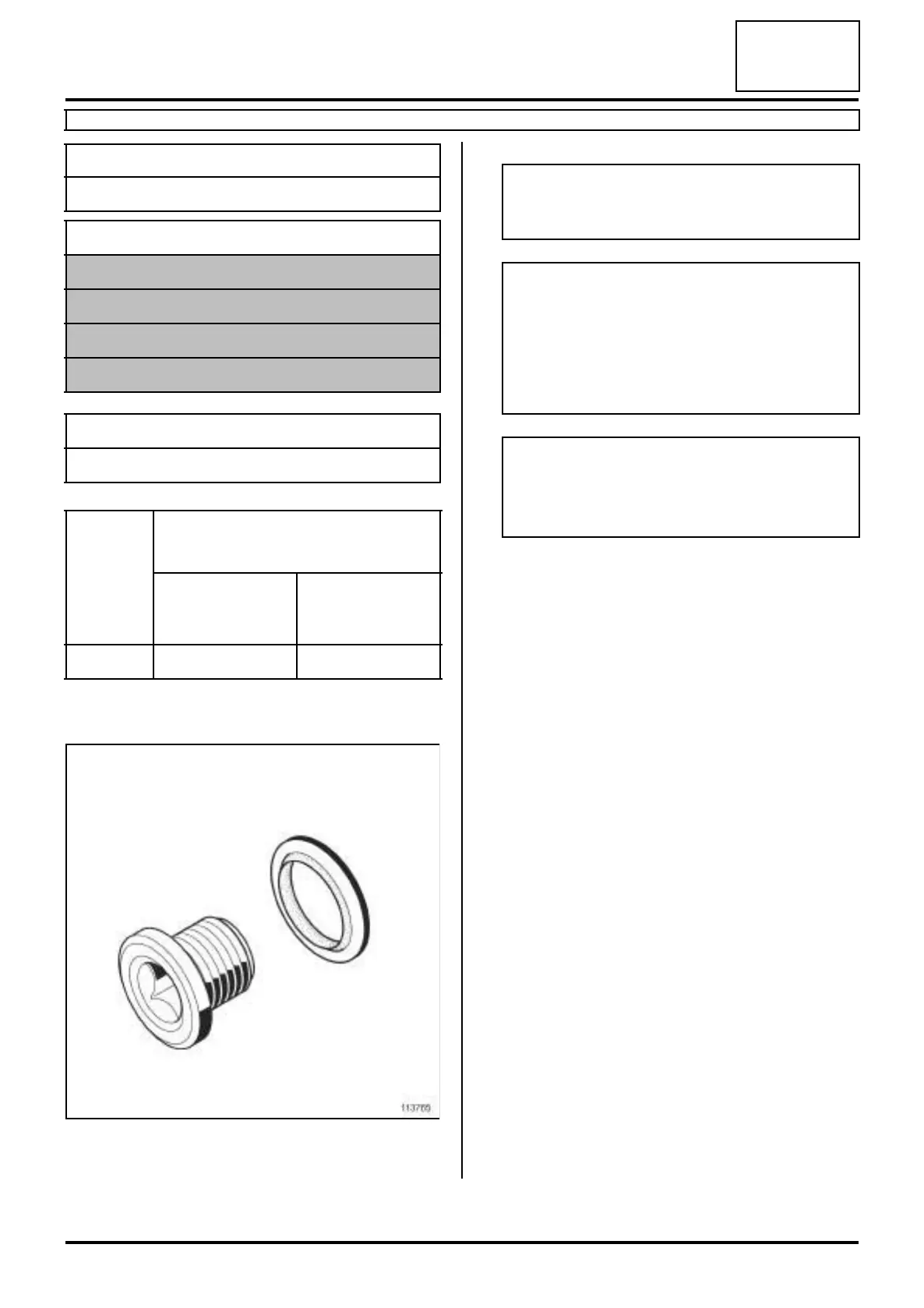

113765
IMPORTANT
Wear leaktight gloves (Nitrile type) for this opera-
tion.
WARNING
Always check the oil level using the dipstick.
Do not exceed the maximum level on the dipstick
(could destroy the engine).
Correct the engine oil level if necessary before
delivering the vehicle to the customer.
Note:
When topping up the engine oil, always leave at
least 10 minutes before checking the level with a
dipstick.
