TURBOCHARGING
Turbocharger oil pipe: Removal - Refitting
K9K, and 830 or 832
12B
II - OPERATION FOR REMOVAL OF PART
CONCERNED

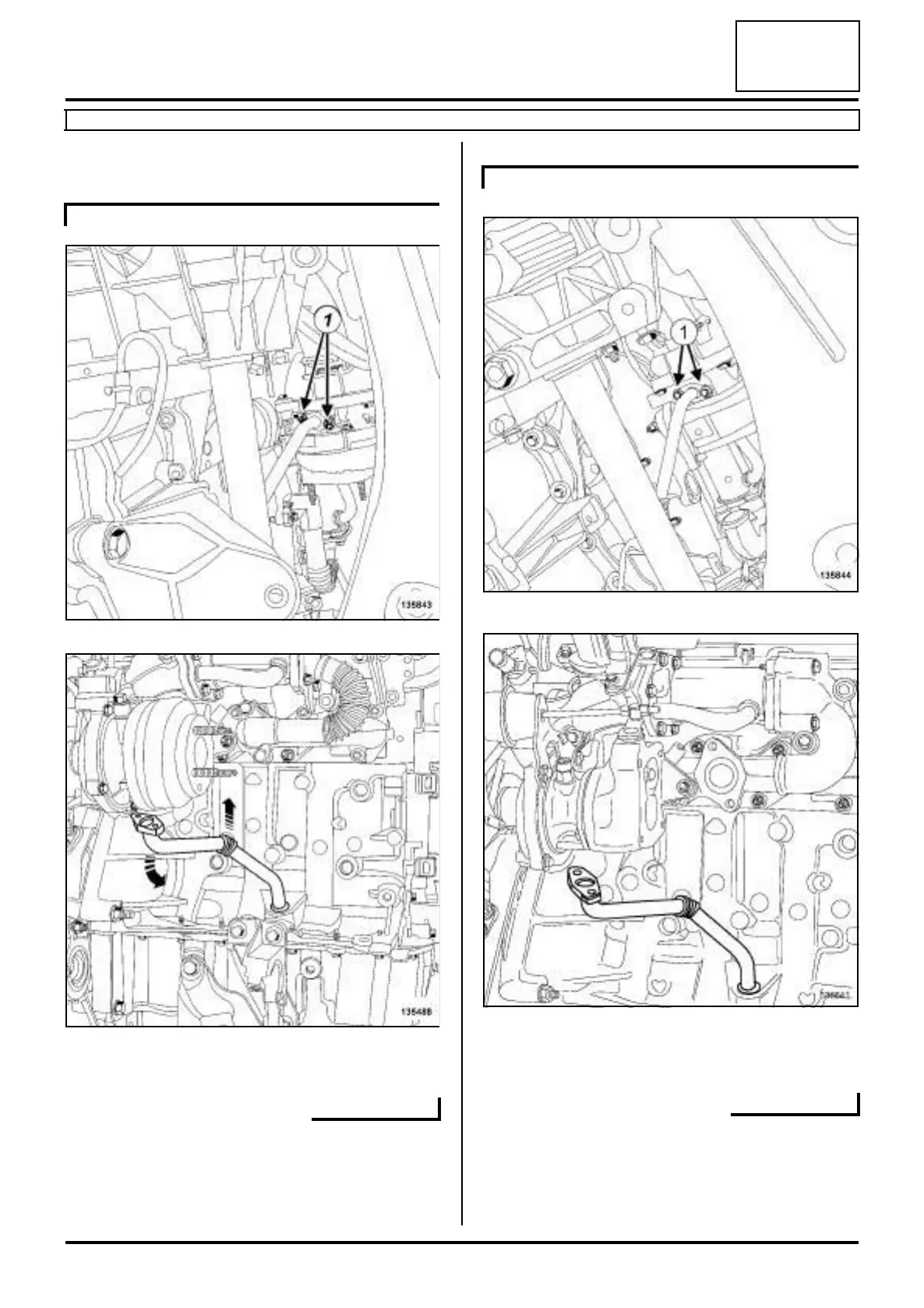

a Remove the turbocharger oil return pipe bolts (1) .
a Remove the turbocharger oil return pipe bolts (1) .
a Turn the turbocharger oil return pipe to facilitate its
removal.
a Extract the turbocharger oil return pipe from the cy-
linder block.
K9K, and 832
135843
135488
K9K, and 830
135844
136641
