Renault K4M - Page 690

14A-19
ANTIPOLLUTION
Exhaust gas recirculation assembly: Removal - Refitting
K9K
14A

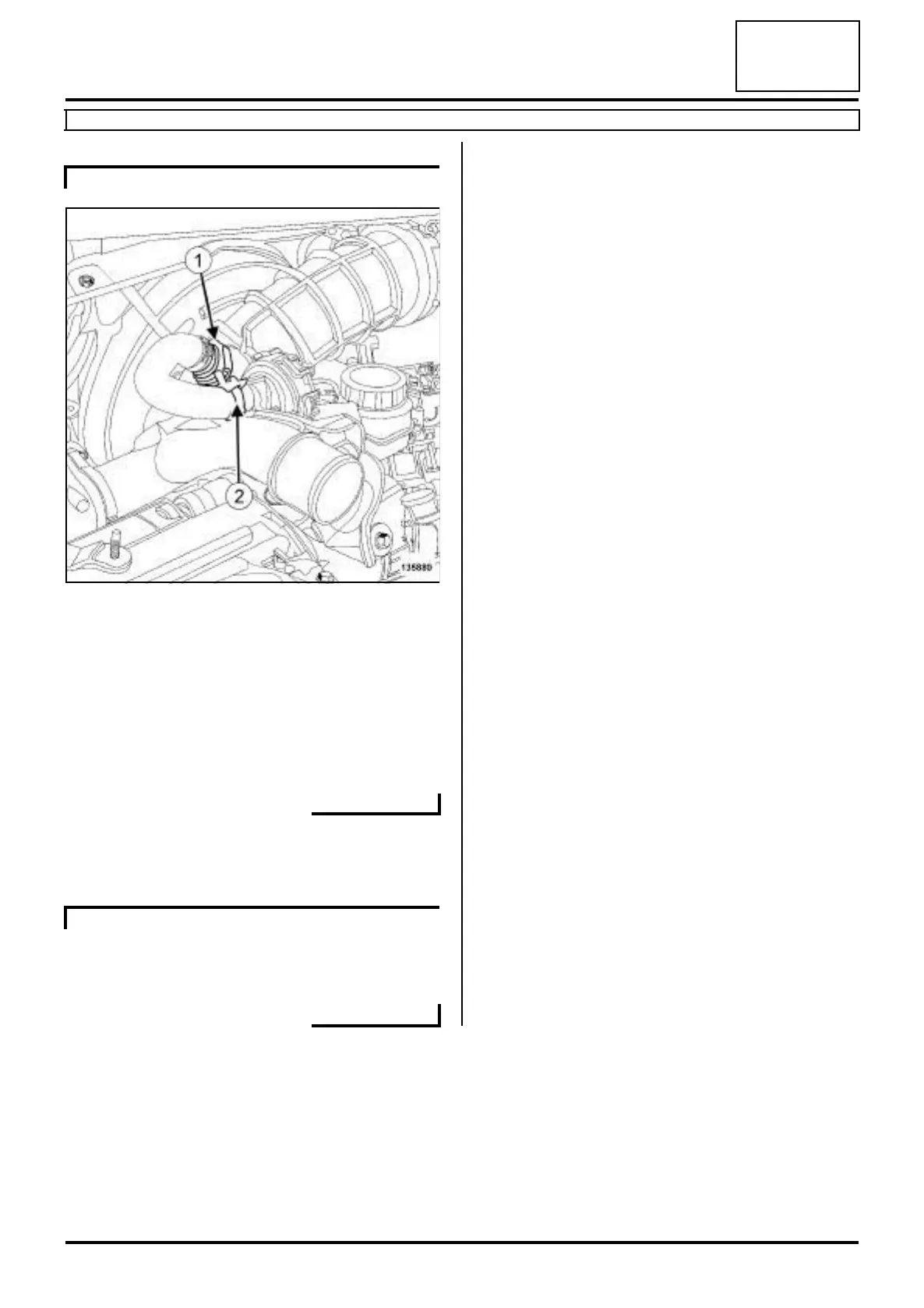

a Disconnect the oil vapour rebreathing pipe union
from the air filter unit air outlet pipe (1) .
a Separate the clip (2) of the oil vapour rebreathing
pipe away on the oil vapour rebreathing valve.
a Disconnect the oil vapour rebreathing pipe from the
oil vapour rebreathing valve.
a Remove the oil vapour rebreathing pipe.
a Remove the turbocharger outlet air pipe (see 12B,
Turbocharging, Intercooler air inlet pipe: Remo-
val - Refitting, page 12B-41) .
a Remove the damper valve (see 12A, Fuel mixture,
Air inlet flap: Removal - Refitting, page 12A-11) .
K9K, and 830
135880
K9K, and 832
