10A-65
ENGINE AND CYLINDER BLOCK ASSEMBLY
Oil pressure sensor: Removal - Refitting
K4M
10A
REMOVAL
I - REFITTING PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove the front engine cover.

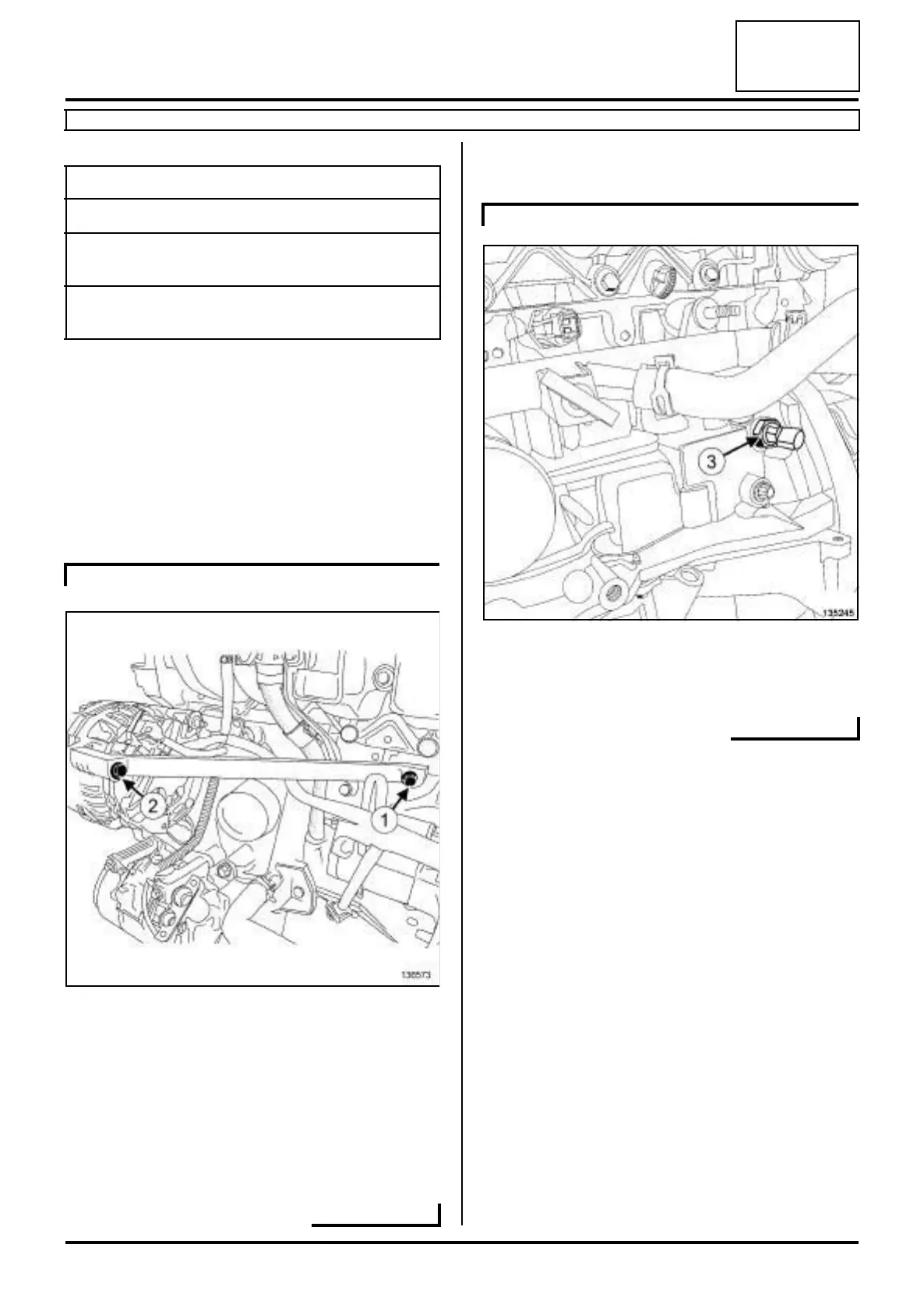

a Remove:
-the bolt (1) for the alternator strut from the cylinder
block,
-the bolt (2) for the alternator strut from the alterna-
tor,
-the alternator strut.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Disconnect the oil pressure sensor connector.
a Remove the oil pressure sensor (3) .
Tightening torquesm
oil pressure sensor 33 N.m
alternator strut bolt on
the alternator
25 N.m
alternator strut bolt on
the cylinder block
25 Nm
K4M, and 858 or 866
136573
K4M, and 848
135245
