10A-70
ENGINE AND CYLINDER BLOCK ASSEMBLY
Oil level sensor: Removal - Refitting
K4M
10A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine undertray bolts,
-the engine undertray.
II - OPERATION FOR REMOVAL OF PART
CONCERNED

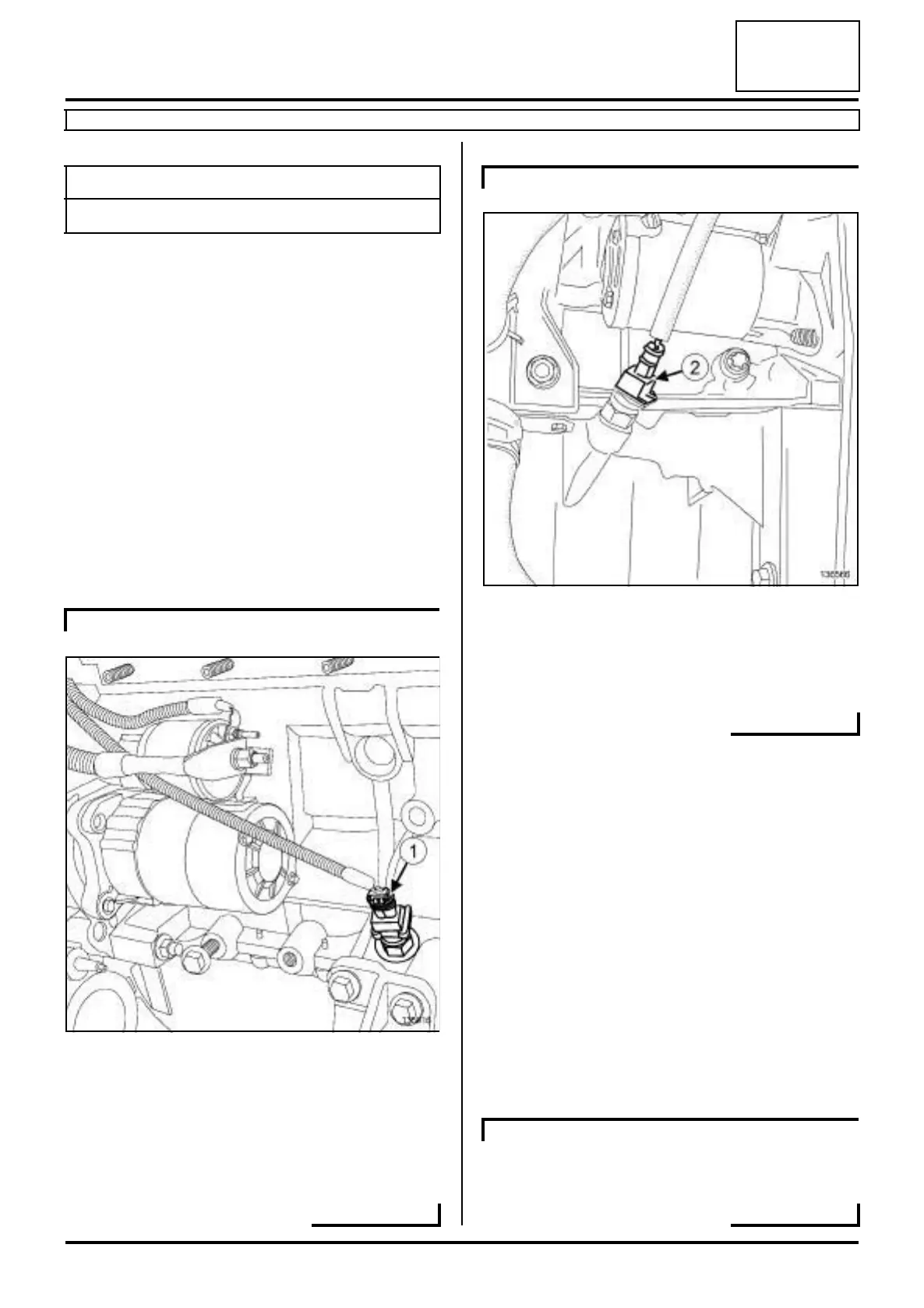

a Unclip the wiring from the oil level sensor.
a Disconnect the connector (1) from the oil level sen-
sor.
a Remove the oil level sensor .
a Disconnect the connector (2) from the oil level sen-
sor.
a Remove the oil level sensor .
REFITTING
I - REFITTING PREPARATION OPERATION
a Degrease the mating face of the oil level sensor
using SURFACE CLEANER (see Vehicle: Parts
and ingredients for the repairwork) (04B, Consu-
mables - Products) on the cylinder block.
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit the oil level sensor.
a Torque tighten the oil level sensor (28 N.m).
a Connect the connector to the oil level sensor.
a Clip the wiring onto the oil level sensor.
Tightening torquesm
oil level sensor 28 N.m
K4M, and 848
135916
K4M, and 858 or 866
136566
K4M, and 848
