Oil pump: Removal - Refitting
F9Q
10A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine undertray bolts,
-the engine undertray.
a Drain the engine oil (see 10A, Engine and cylinder
block assembly, Engine oil: Draining - Refilling,
page 10A-40) .
a Remove:
-the lower engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) ,
-the sump (see 10A, Engine and cylinder block
assembly, Sump: Removal - Refitting, page
10A-25) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED

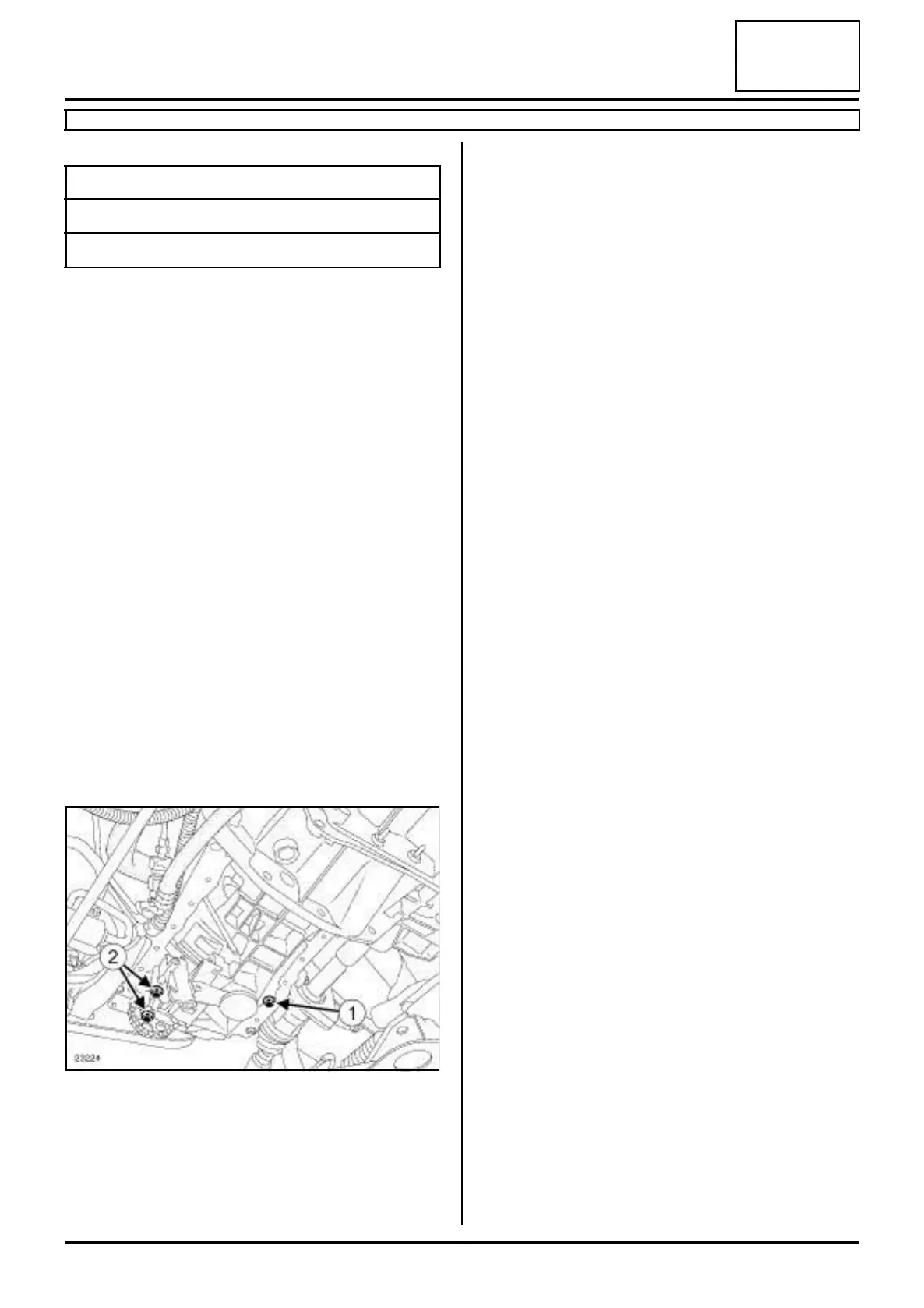

a Remove:
-the oil splash plate bolt (1) ,
-the oil splash plate,
-the oil pump bolts (2) ,
-the oil pump.
REFITTING
I - REFITTING PREPARATION OPERATION
a Check for centring rings on the cylinder block.
II - REFITTING OPERATION FOR PART
CONCERNED
a Position the oil pump pinion on the chain.
a Refit:
- the oil pump,
- the oil splash plate.
a Tighten to torque:
- the oil pump bolts (25 N.m),
- the oil splash plate bolt (25 N.m)
III - FINAL OPERATION
a Refit:
- the sump (see 10A, Engine and cylinder block
assembly, Sump: Removal - Refitting, page
10A-25) ,
-the lower engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) .
a Fill up the engine oil (see 10A, Engine and cylinder
block assembly, Engine oil: Draining - Refilling,
page 10A-40) .
a Refit the engine undertray.
Tightening torquesm
oil pump bolts 25 N.m
oil splash plate bolt 25 N.m
