TRAFIC - NU 650-12 X83
C:\Documentum\Checkout\NU650-12_T5-ENG.win 17/12/2004 7:29
-page2
5.02

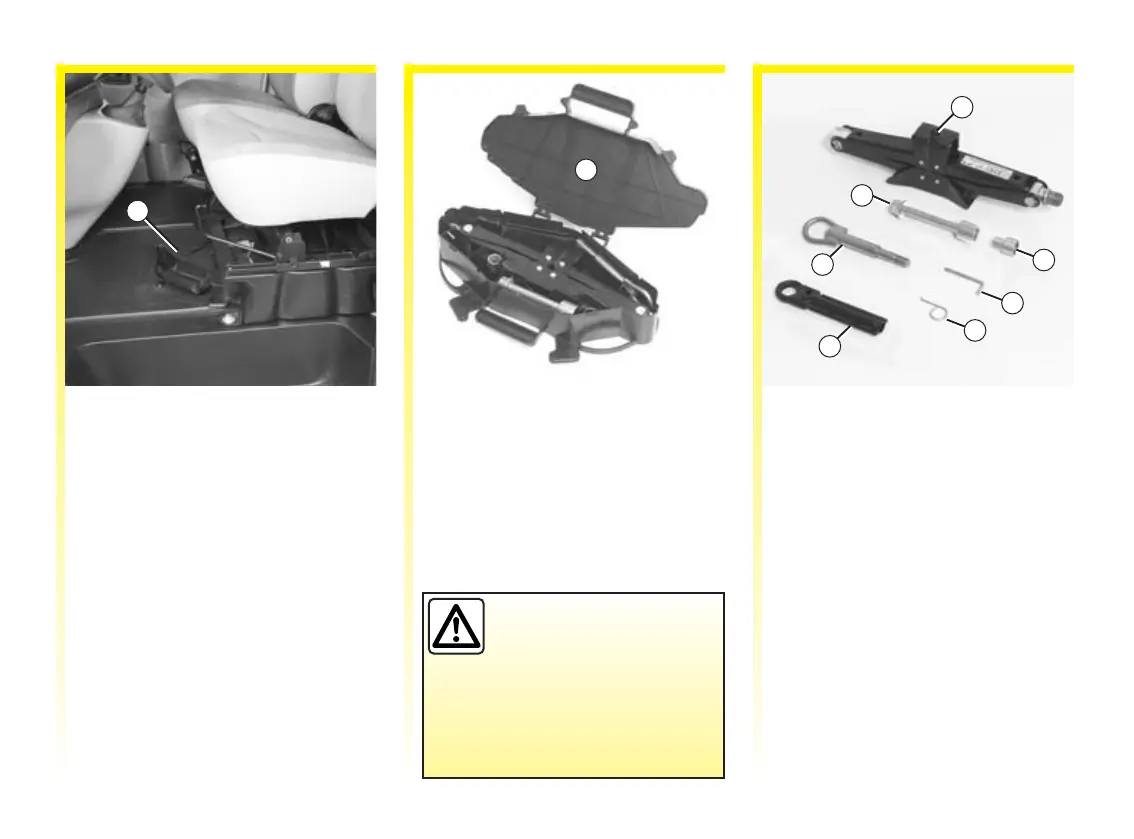

TOOL KIT
Tool kit 1 is located under the
driver's seat.
To take it out, rotate the kit until it
can be removed.
Lift tool kit cover A.
Jack 2.
The jack is designed for
wheel changing purposes
only. Under no
circumstances should it be
used for carrying out repairs or to
gain access under the vehicle.
Jack socket 8.
Allen key 4.
Hubcap tool 5.
Emergency spare wheel case 3.
Ratchet spanner 6.
Towing hitch 7.
