TRAFIC - NU 650-12 X83
C:\Documentum\Checkout\NU650-12_T5-ENG.win 17/12/2004 7:29
-page3
5.03
TOOL KIT (continued) HUB CAP

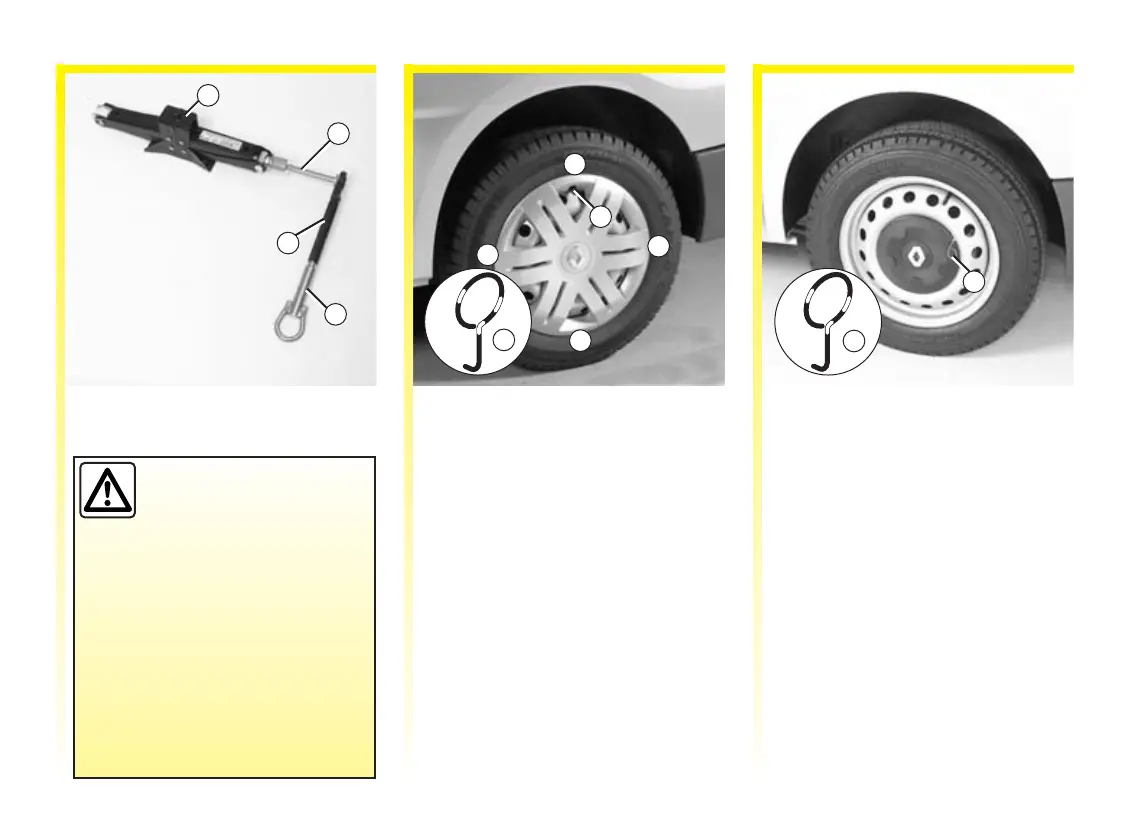

Jack assembly
When storing the tools,
check that they are
correctly placed in tool
kit 1 as before, (refer to
the drawings engraved in the
tool kit), and store kit 1 under the
seat (refer to the drawings
engraved on the cover). Do not
leave the tools unsecured as they
may become loose under
braking.
Remove the wheel trim using the
wheel trim key A (located in the tool
kit) by engaging the hook into one of
the openings around the edge of the
wheel trim.
When refitting the wheel trim, align
it with valve 9.
Push the retaining hooks in, starting
with valve side A ,followedbyB
and C , finishing at the side opposite
the valve D.
Unclip it using hubcap spanner E
(located in the tool kit).
