3.1.4 Line out Pin Jack (CN4)
RTK79210XXB00000BE is equipped with the line out pin jack (CN4).
Figure 3.1.6 shows the line out pin jack layout diagram, and Table 3.1.6 shows the line out pin jack layout table.

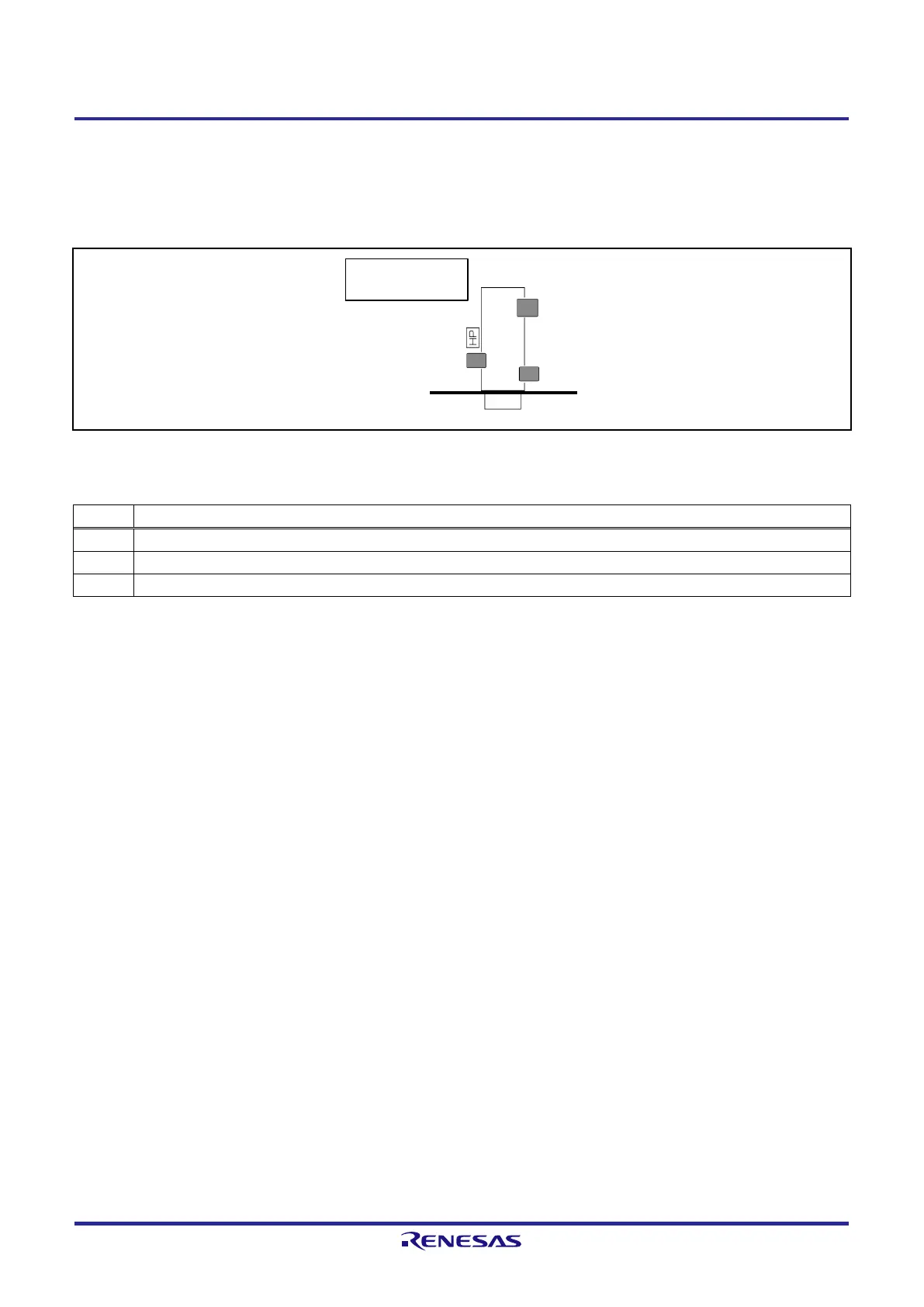

Figure 3.1.6 Line Out Pin Jack (CN4) Layout Diagram
Table 3.1.6 Line Out Pin Jack Layout Table
Pin
Signal name
1
GND (AVss)
2
LOUT1 (audio CODEC Lch analog output pin)
3
ROUT1 (audio CODEC Rch analog output pin)
1
2
3
CN4
C side top view
