3.1.1 CPU Board Connector (CN1)
The RTK79210XXB00000BE can be connected to the RZ/A2M CPU board RTK7921053C00000BE via the CPU
board connector (CN1).
Figure 3.1.3 shows the CPU board connection pin layout diagram, and Table 3.1.1 to Table 3.1.3 show CPU board
connector pin layout table.

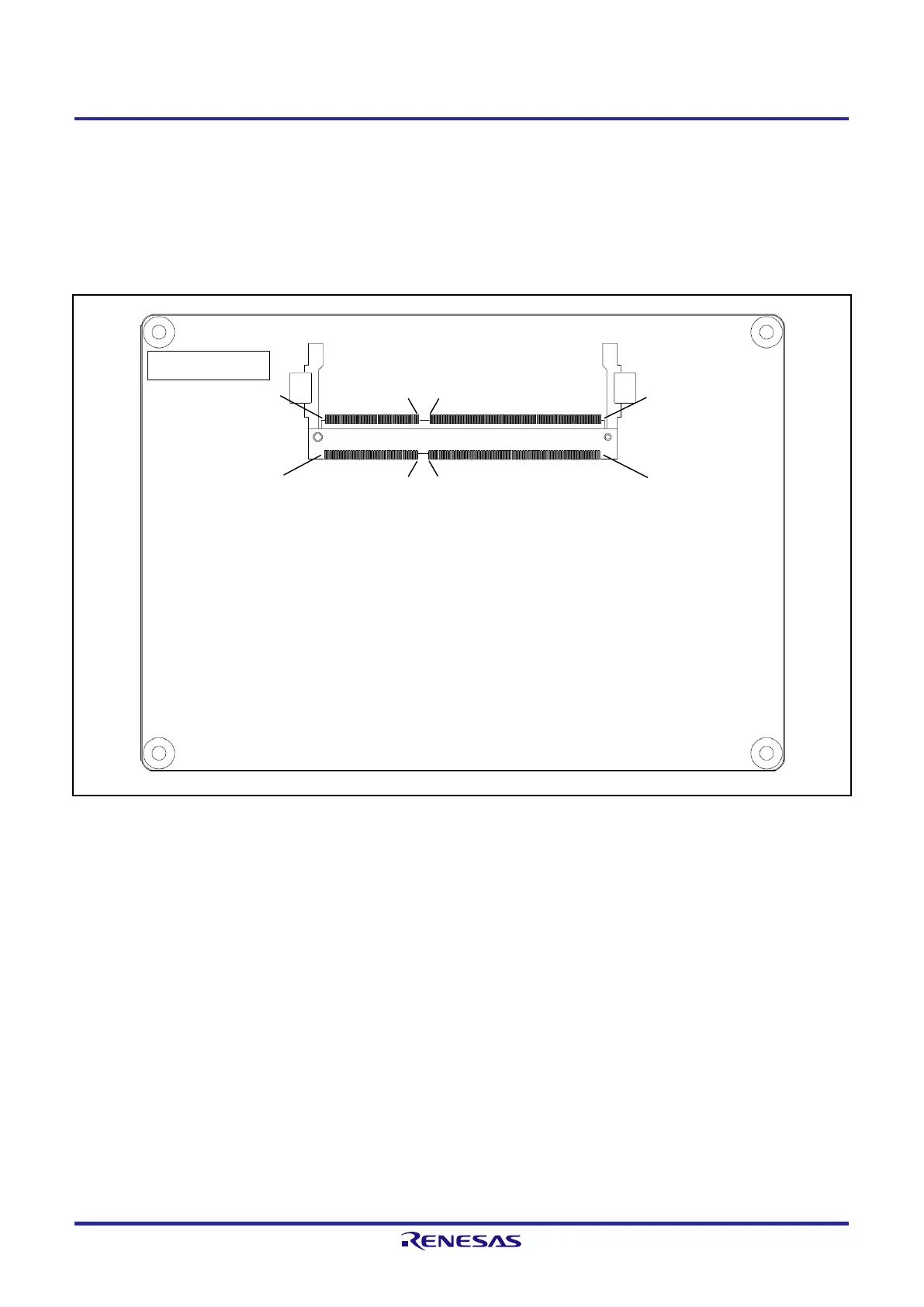

Figure 3.1.3 CPU Board Connector (CN1) Pin Layout Diagram
CN1
1
204
203
2
C side top view
72
71 73
74
