Renesas RZ/A2M User Manual

RZ/A2M SUB Board RTK79210XXB00000BE 3. Operating specifications
R20UT4398EJ0100 Rev.1.00 3-12
2018.10.11
3.1.6 LAN Connector (CN8, CN9)
RTK79210XXB00000BE is equipped with the LAN connectors (CN8, CN9).
Figure 3.1.8 shows the LAN connector pin layout diagram, and Table 3.1.8 shows the LAN connector pin layout table.

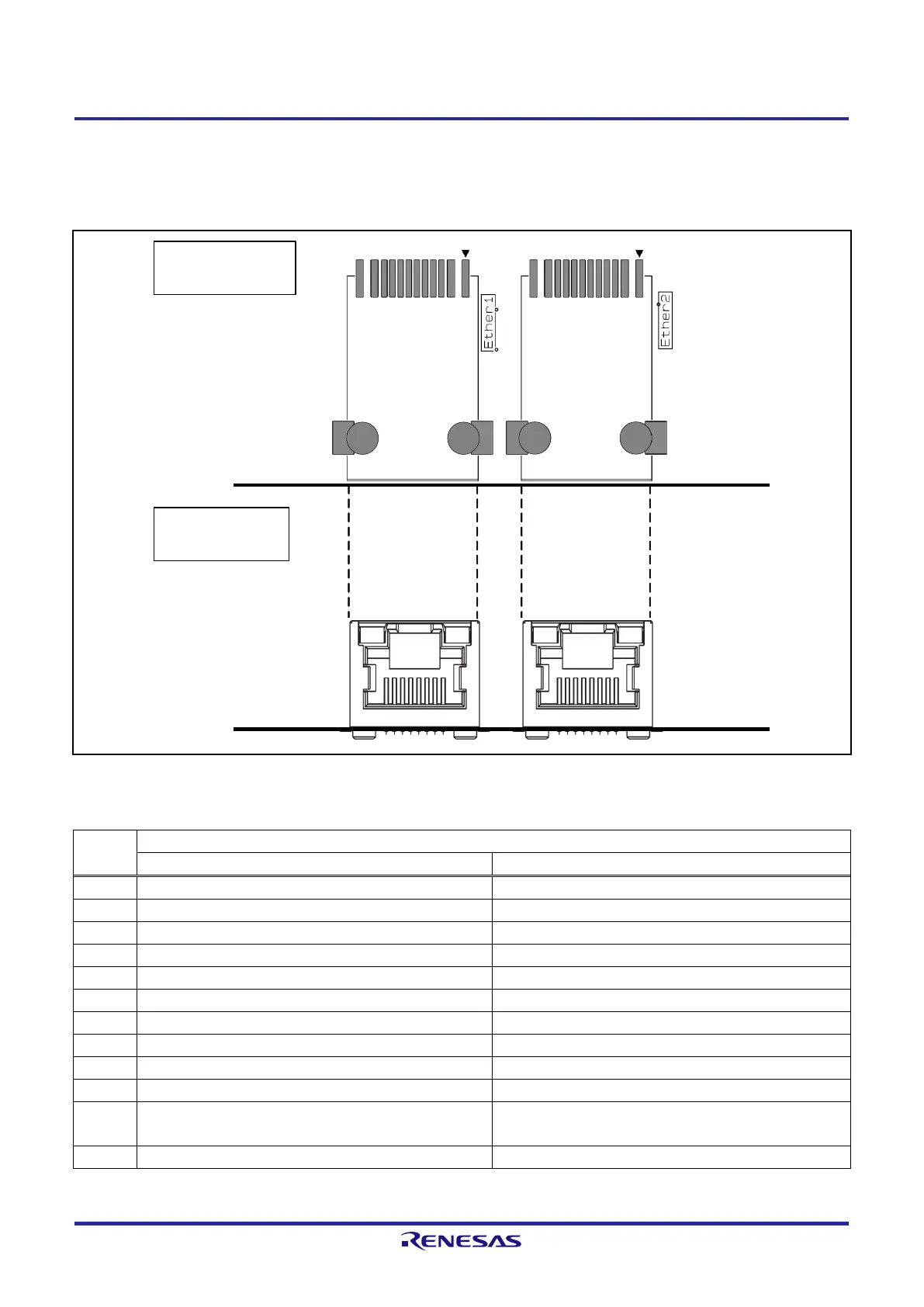

Figure 3.1.8 LAN Connector (CN8, CN9) Pin Layout Figure
Table 3.1.8 LAN Connector (CN8, CN9) Pin Layout Table
Pin
Signal name
CN8
CN9
1
LED-A (Y) (+3.3V)
LED-A (Y) (+3.3V)
2
LED-K (Y) (LED0/PHYAD[0])
LED-K (Y) (LED0/PHYAD[0])
3
TD+ (MDI+[0])
TD+ (MDI+[0])
4
TD- (MDI-[0])
TD- (MDI-[0])
5
CT1
CT1
6
CT2
CT2
7
RD+ (MDI+[1])
RD+ (MDI+[1])
8
RD- (MDI-[1])
RD- (MDI-[1])
9
NC
NC
10
CAP
CAP
11
LED-K (G) (LED1/PHYAD[1])
LED-K (G) (LED1/PHYAD[1]
and P3_0 / ET1_LINKSTA)
12
LED-A (G) (+3.3V)
LED-A (G) (+3.3V)
[Note] Red characters indicate functions in use.
CN8
CN9
112112
Side view
C side top view
