Renesas RZ/A2M User Manual

RZ/A2M SUB Board RTK79210XXB00000BE 3. Operating specifications
R20UT4398EJ0100 Rev.1.00 3-14
2018.10.11
3.1.8 USB Connector (CN12, CN13)
RTK79210XXB00000BE is equipped with the series A port (CN12) and Mini-B port (CN13).
Figure 3.1.10 shows the series A port pin layout diagram, and Figure 3.1.11 shows the Mini-B port pin layout diagram.
Table 3.1.10 shows the series A port pin layout table, and Table 3.1.11 shows the Mini-B port pin layout table.

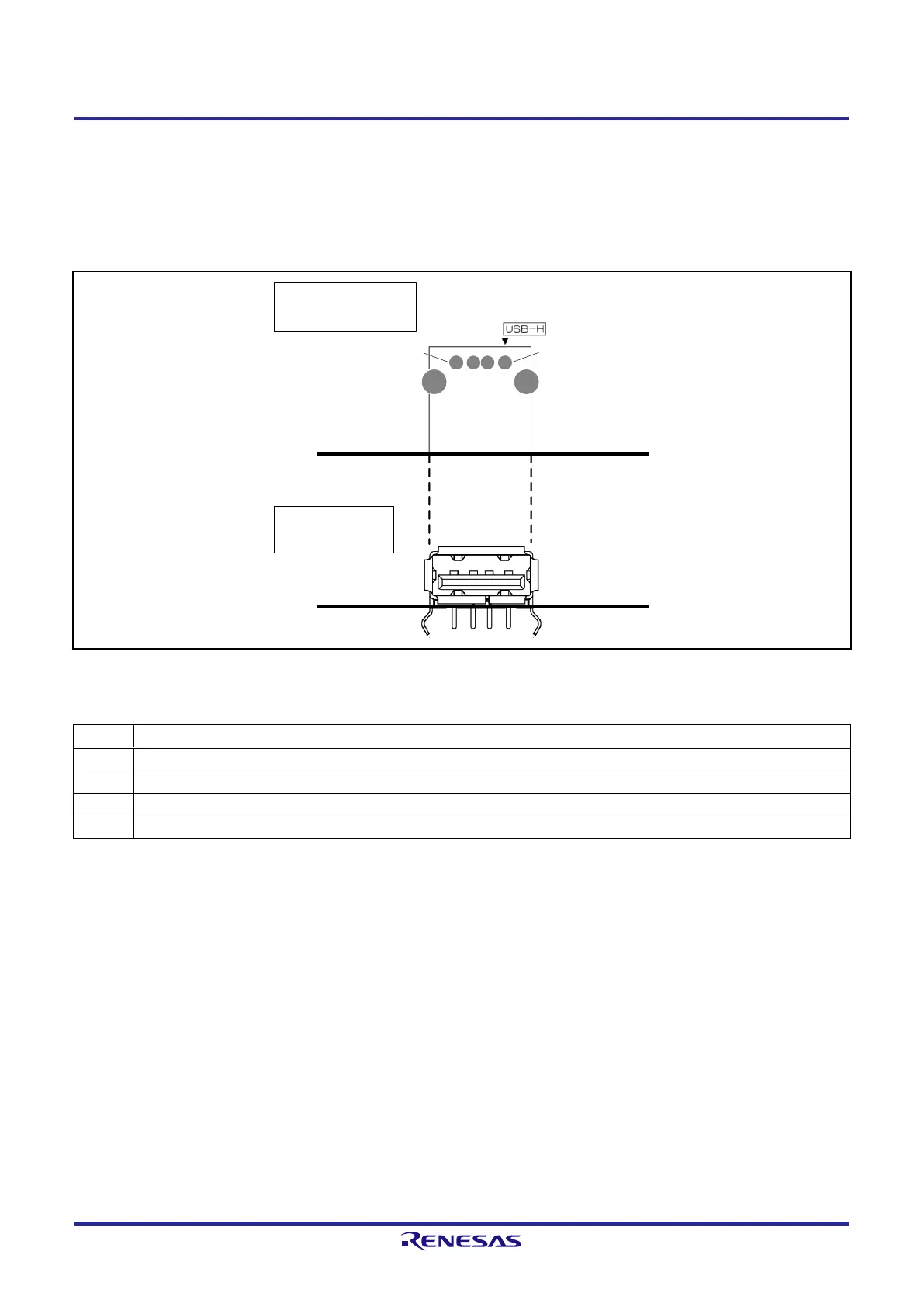

Figure 3.1.10 Series A Port (CN12) Pin Layout Diagram
Table 3.1.10 Series Port (CN12) Pin Layout Table
Pin
Signal name
1
VBus
2
D- (DM1)
3
D+ (DP1)
4
GND (Vss)
14
CN12
Side view
S side top view
