3. Operating specifications
3.1 Overview of Connector
Figure 3.1.1 and Figure 3.1.2 show connector layout diagrams for RTK79210XXB00000BE.

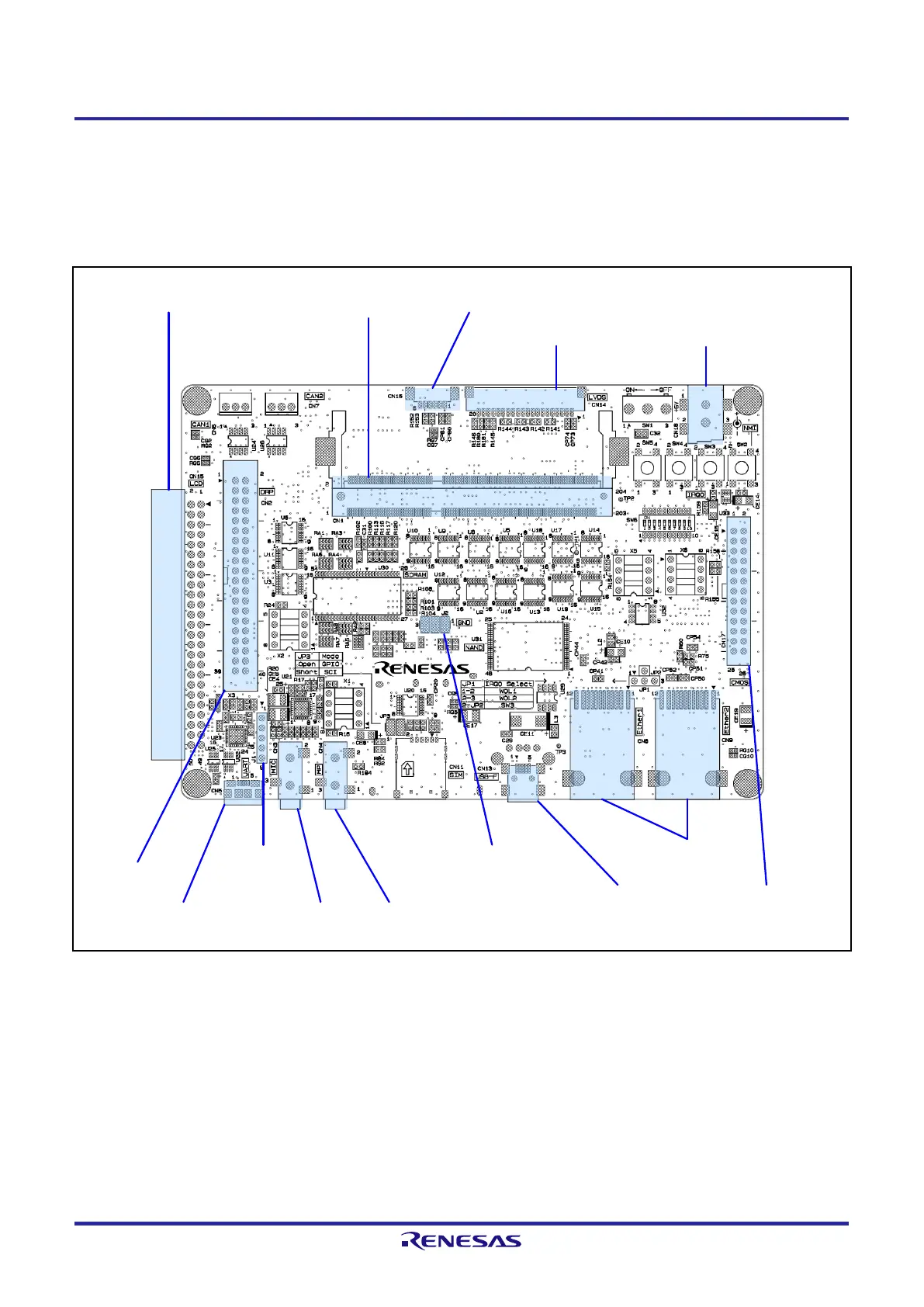

Figure 3.1.1 RTK79210XXB00000BE Connector Layout Diagram (C Side Top View)
CN1: CPU board
Connector
CN2: DRP
connector
CN3: Mic in
Pin jack
CN5: Serial port connector
(USB Micro-B)
CN8, CN9:
LAN connector (RJ-45)
CN13: USB Mini-B
Port
CN14: LVDS
connector
CN15: Digital image signal
Input/output connector
CN16: LVDS back line
connector
J1: E1
connector
CN4: Line out
Pin jack
J2: GND connector
CN18: DC power
source jack
CN17: CMOS camera
connector
