3.1.11 CMOS Camera Connector (CN17)
RTK79210XXB00000BE is equipped with a CMOS camera connector (CN17).

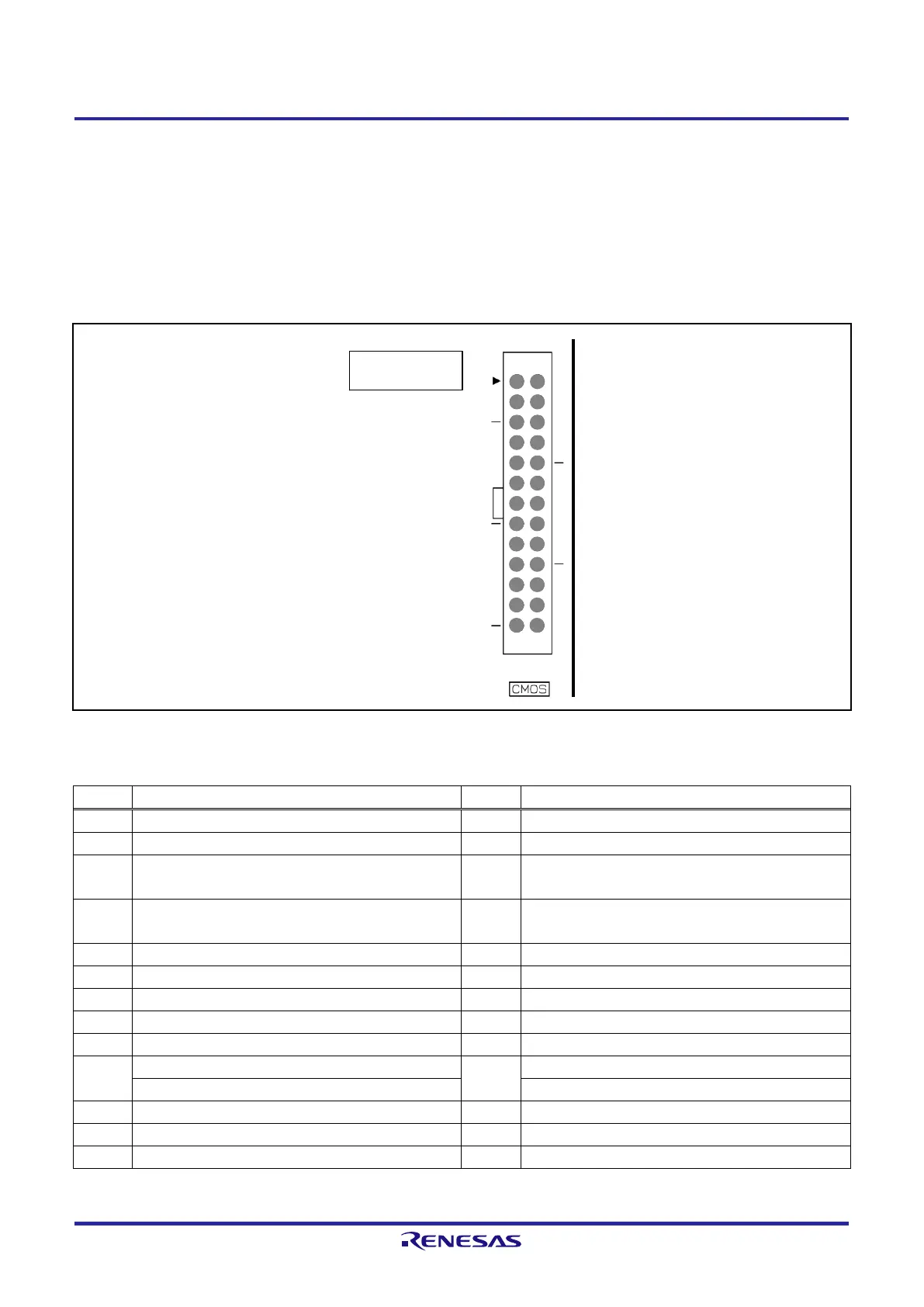

Figure 3.1.14 shows the CMOS camera connector pin layout diagram, and Table 3.1.15 shows the CMOS camera
connector pin layout.
CMOS camera connector (CN17) does not have a reverse insertion prevention guide, so be sure to insert in the
direction of the #1 pin during connection. Moreover, confirm that the camera device signal pin is compatible with the
circuit board.
Figure 3.1.14 CMOS Camera Connector (CN17) Pin Layout Diagram
Table 3.1.15 CMOS Camera Connector (CN17) Pin Layout Table
Pin
Signal name
Pin
Signal name
1
Vcc (+3.3V)
2
GND (Vss)
3
SCL (PD_6 / RIIC3SCL)
4
SDA (PD_7 / RIIC3SDA)
5
VSYNC (P6_2 / ET0_TXD0/RMII0_TXD0 /
VIO_VD)
6
HSYNC (P6_3 / ET0_TXD1/RMII0_TXD1 /
VIO_HD)
7
PCLK (P6_1 / ET0_TXEN/RMII0_TXDEN /
VIO_CLK)
8
XCLK
9
D7 (PE_1 / ET0_RXD0/RMII0_RXD0 / VIO_D7)
10
D6 (PE_2 / ET0_RXD1/RMII0_RXD1 / VIO_D6)
11
D5 (PE_3 / ET0_RXER/RMII0_RXER / VIO_D5)
12
D4 (PE_4 / ET0_CRS/RMII0_CRSDV / VIO_D4)
13
D3 (PE_5 / ET0_MDC / VIO_D3)
14
D2 (PE_6 / ET0_MDIO / VIO_D2)
15
D1 (PH_0 / VIO_D1)
16
D0 (PH_1 / VIO_D0)
17
GND (Vss)
18
I/O (PE_0 / ET0_RXCLK/REF50CK0 / VIO_FLD)
19
I/O (PG_4 / VIO_D15)
20
I/O (PG_5 / VIO_D14)
D15 (PG_4 / VIO_D15)
D14 (PG_5 / VIO_D14)
21
D13 (PG_6 / VIO_D13)
22
D12 (PG_7 / VIO_D12)
23
D11 (PG_3 / VIO_D11)
24
D10 (PG_2 / VIO_D10)
25
D7 (PG_1 / VIO_D9)
26
D8 (PG_0 / VIO_D8)
[Note] Red characters indicate functions in use.
CN17
1 2
25 26
C side top view
