Renesas RZ/A2M User Manual

RZ/A2M SUB Board RTK79210XXB00000BE 3. Operating specifications
R20UT4398EJ0100 Rev.1.00 3-26
2018.10.11
3.3 External Dimensions

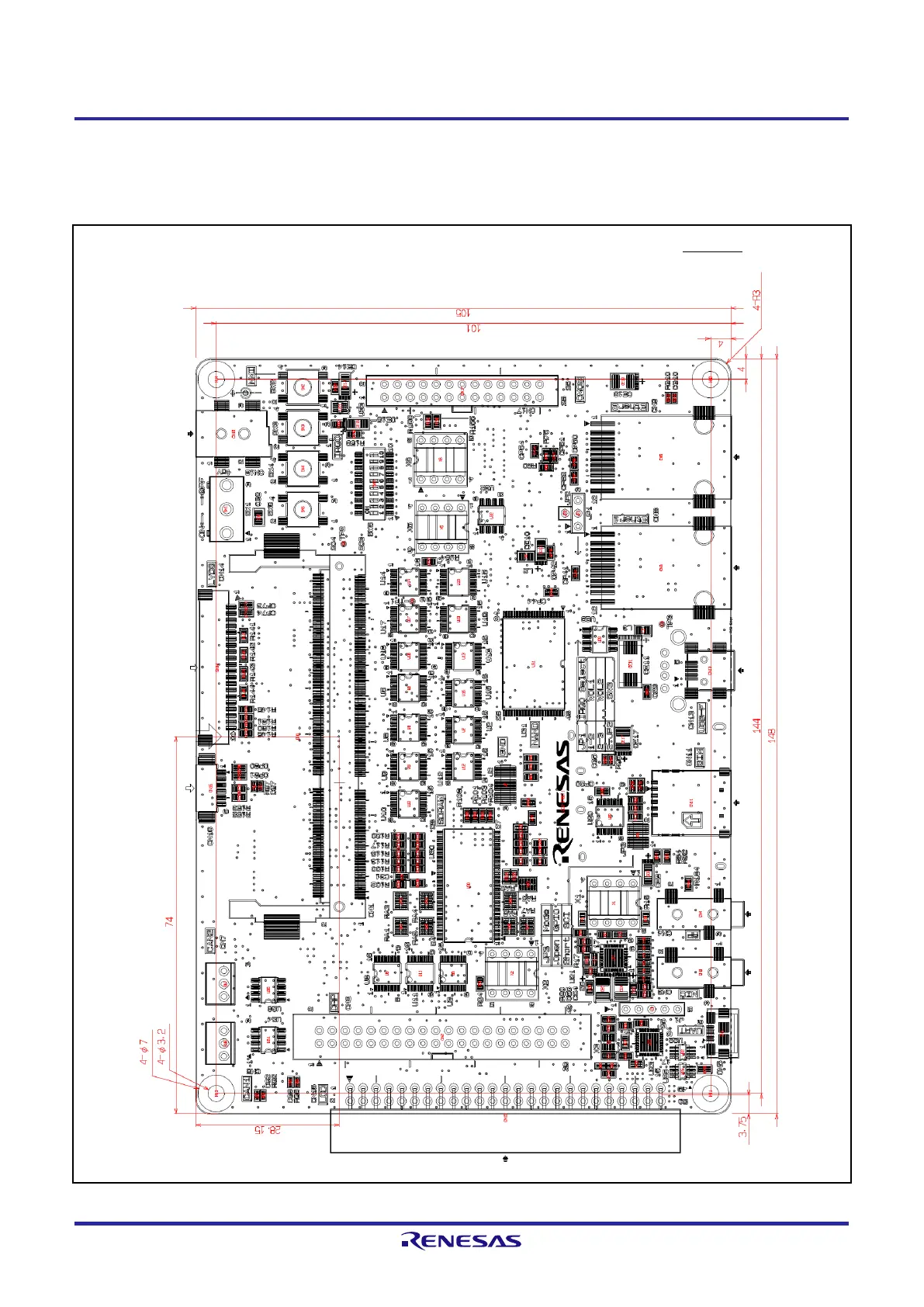

Figure 3.3.1 shows the external dimensions of the RTK79210XXB00000BE C side top view.
＜C side top view＞ unit: mm
Figure 3.3.1 RTK79210XXB00000BE External Dimensions Diagram
