Renesas RZ/A2M User Manual

RZ/A2M SUB Board RTK79210XXB00000BE 3. Operating specifications
R20UT4398EJ0100 Rev.1.00 3-15
2018.10.11

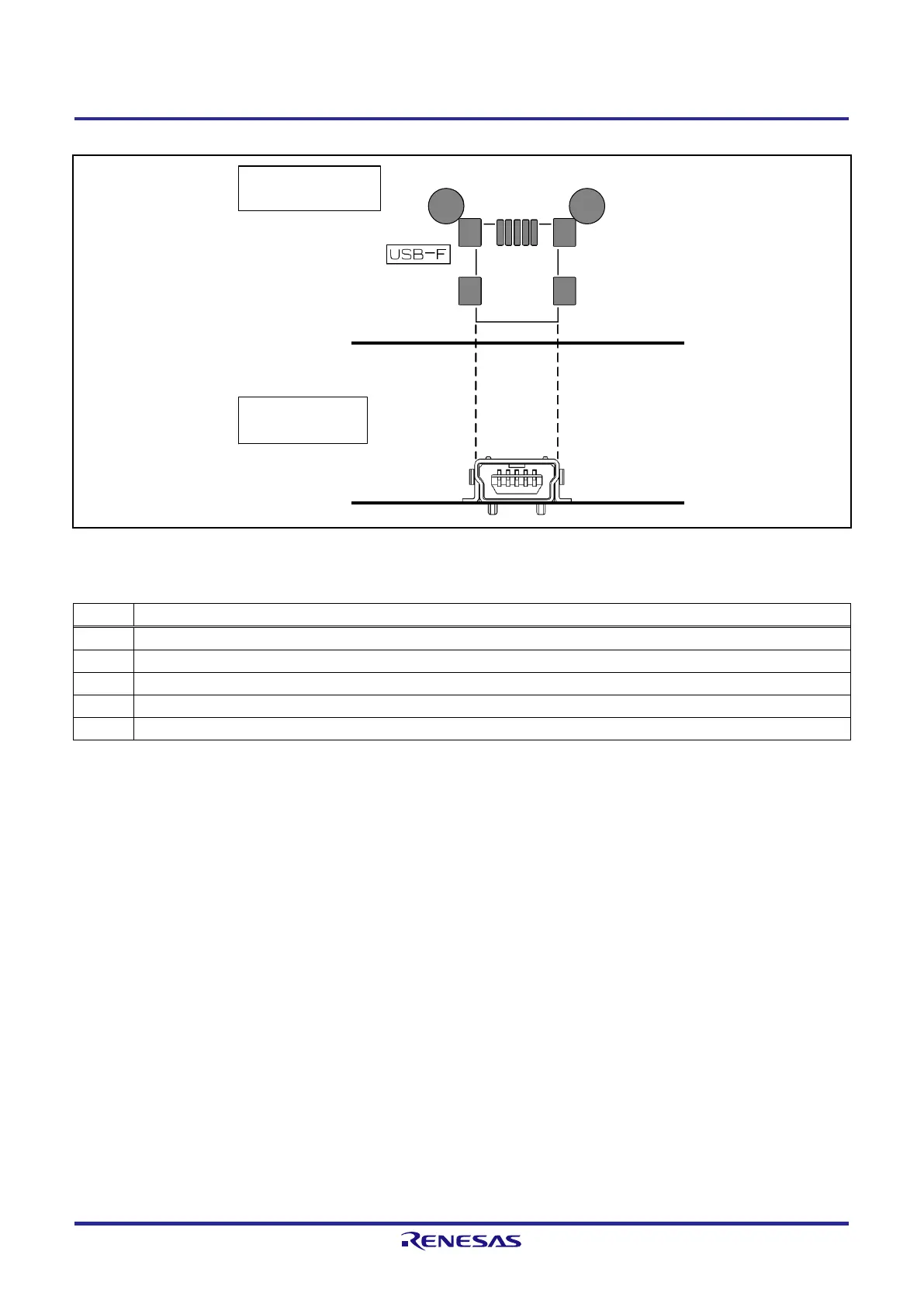

Figure 3.1.11 Mini-B Port (CN13) Pin Layout Diagram
Table 3.1.11 Mini-B Port (CN13) Pin Layout Table
Pin
Signal name
1
VBus (PC_0 / VBUSIN1)
2
D- (DM1)
3
D+ (DP1)
4
IC (connects to test pin TP3)
5
GND (Vss)
[Note] Red characters indicate functions in use.
CN13
1
5
Side view
C side top view
