RZ Family / RZ/G, RZ/A Series 4. Parallel to HDMI Converision Board
R01UH0990EJ0101 Rev.1.01 Page 70 of 83
Jul 28, 2022

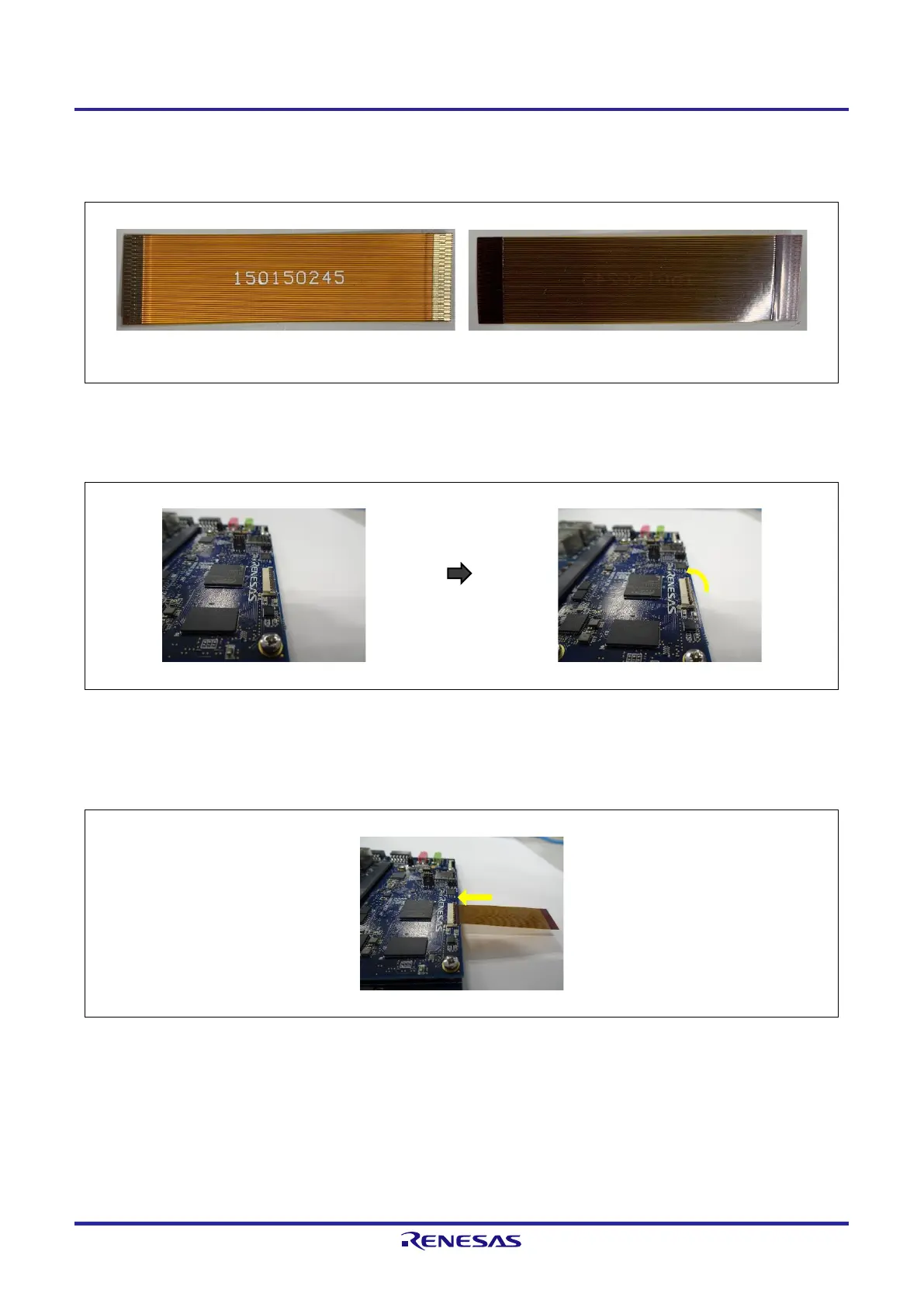

The connection procedure of the 50mm FPC is follows.
The top and bottom surfaces of the FPC are shown below.
Top surface Bottom surface
Figure 4.2 Top and Bottom Views of the 50mm FPC
1. Lift up the actuator. Use thumb or index finger.
Figure 4.3 How to install the 50mm FPC (1)
2. Fully insert the FPC in the connector parallel to mounting surface, with the exposed conductive traces facing
down
Figure 4.4 How to install the 50mm FPC (2)
