Renfert Silent TS2 - Areas of Application; Components and Functional Elements

- 5 -
3.1.1 Areas of Application
In the dental laboratory different areas of application are possible.
Depending on the amount of dust to be extracted and the extraction performance available, both suc-
tion hoses can either operate together, or if preferred, each tube alternately.
Area of application
Standard Workbench (WB) Grinding, separating, polishing, etc. of different dental materials such
as alloys, acrylics, porcelains, plasters, etc. in normal amounts using
the technician’s hand piece.
Work Preparation (WP) Mainly grinding plasters and acrylics in large amounts using the
technician’s hand piece
Device (D) 'XVWLQWHQVLYHGHYLFHVVXFKDVWKH¿QHUHF\FODEOHVDQGEODVWHUHWF
Recommended use of the suction hoses:
WB + WB Suction hoses A and B simultaneously
WB + WP Suction hoses A and B simultaneously
WP + WP Suction hose A or B alternatively
D + D Suction hose A or B alternatively
WB + D Suction hose A or B alternatively
WP + D Suction hose A or B alternatively

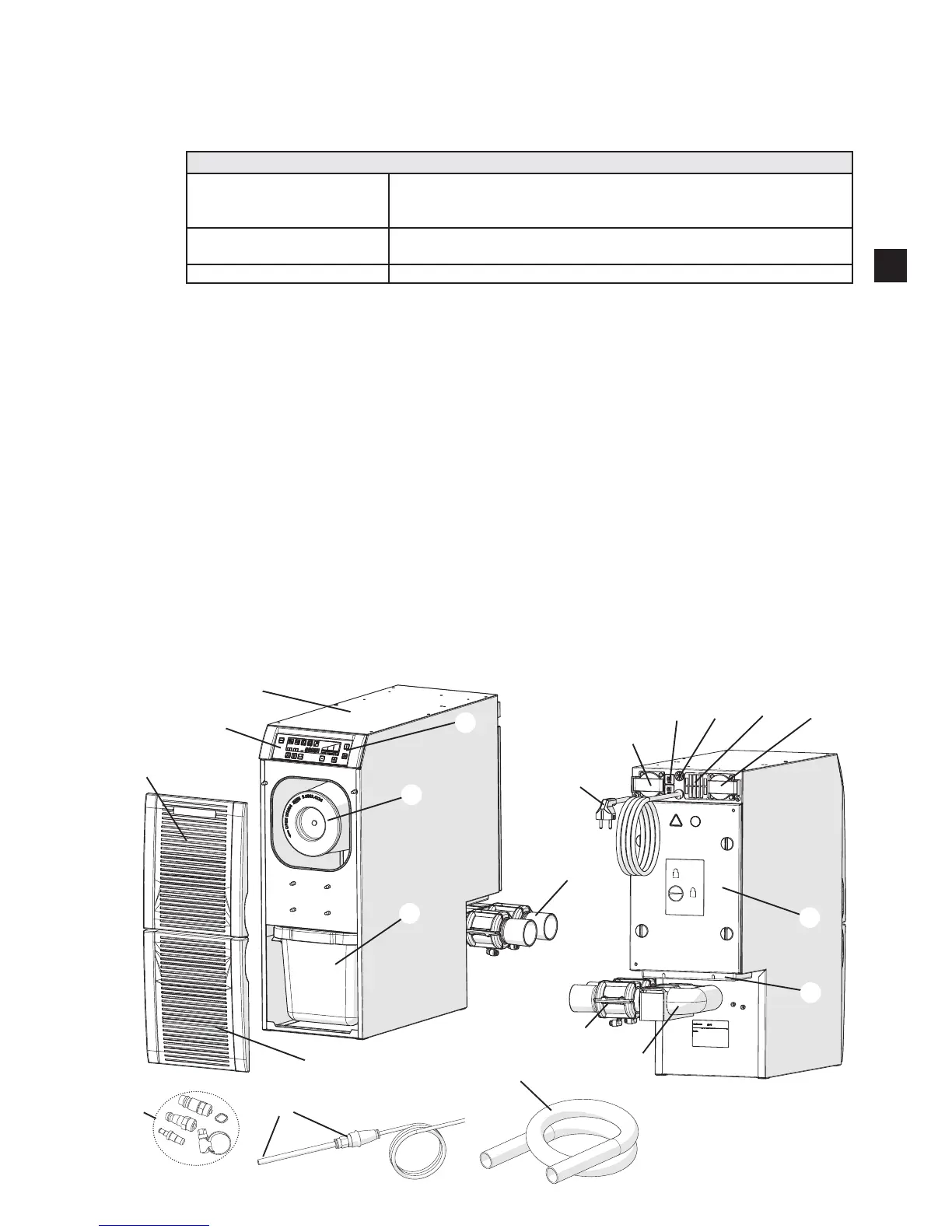

3.2 Components and Functional Elements
1 Silent TS2
2 Key-pad
3 On / off switch
 )URQWSDQHO)LQH¿OWHU
5 Front panel/ Dust drawer
 )LQH¿OWHU
7 Dust drawer
8 Mains cable
9 Device coupler socket (A, B)
10 Device protection switch
 (OHFWURQLF¿OWHU
12 Compressed air connection with com-
SUHVVHGDLU¿OWHU&RPSUHVVHGDLUWXEHLV
sealed)
13 Motor compartment cover
([KDXVWDLU¿OWHU
15 Pinch valve with extractor connection
¿WWLQJURWDWDEOH
16 Suction pipe
17 Connection set
18 Suction hose (not included in the scope
of delivery)
Fig. 1
12
3
8
9
910 1112
13
14
1
2
4
6
7
5
15
16
17
18
15
