Probe status LED function
The probe status LEDs on the transmitter and
receiver units indicate the status of the probe to
the user. The LEDs mimic each other.
Colours shown by the LEDs vary depending
upon the mode of operation of the NCi-4
interface. The colours and associated states are
detailed below:
General
NCi-4 NC set up switch SW1-2 set to ‘On’
The probe status LEDs will rapidly flash code
which is used by the NC4 set-up tool.
The colours of the LEDs will vary between red,
amber and green.
NCi-4 NC set up switch SW1-2 set to ‘Off’
See the table on page 9.

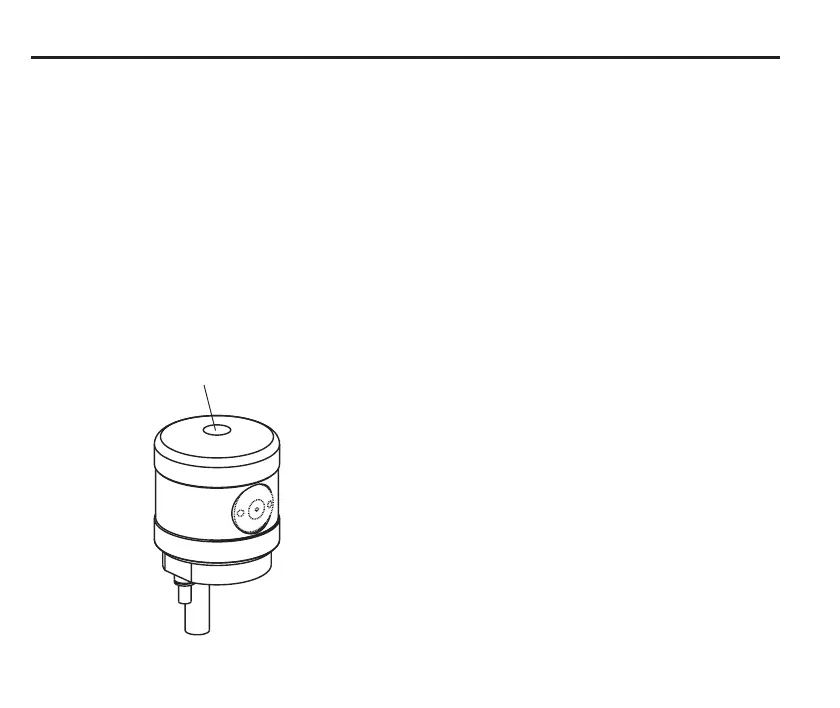

Probe status LED
(on transmitter and receiver units)
