24
Installation – separate system
1. Choose a suitable position for securing the
NC4 transmitter and receiver mounting
brackets. Make sure that air will be able to
exit freely from the MicroHoles in the access
panels and will not be directed towards an
operator.
2. Secure the mounting brackets to the
machine.
(continued on page 28)
Installing a separate system
This procedure specifically describes how to
install a 3-plate adjuster pack. You should also
follow this procedure if you are installing a single-
plate adjuster pack.
WARNING: Before starting to install the
NC4 system, ensure the machine is safe
to work on. Switch off machine power when
working in the control cabinet.
NOTE: The sequence of operations required to
install a separate NC4 system may differ from
the sequence described here, depending on the
environment in which the system is being
installed.
!

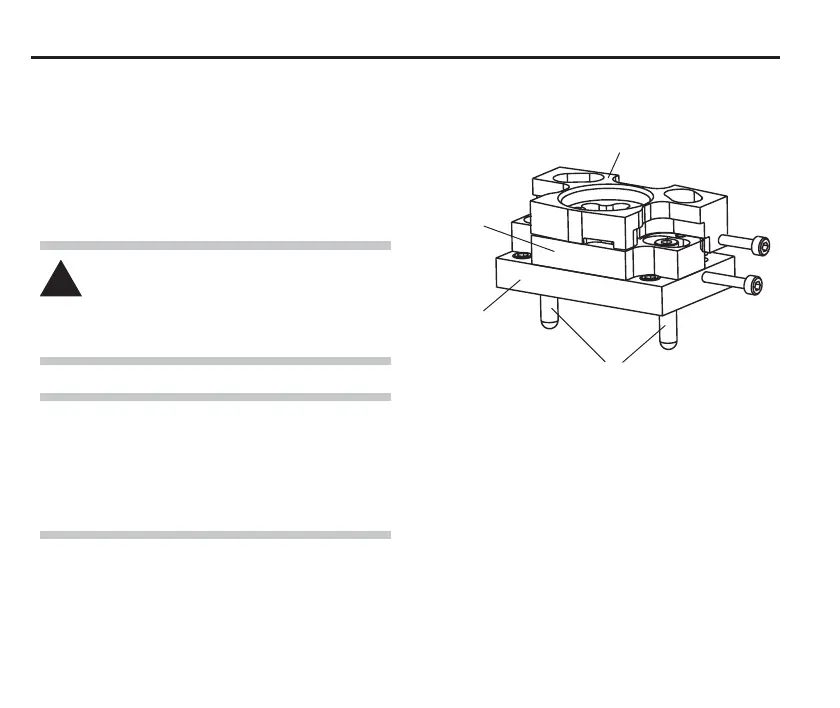

3-plate adjuster pack
Mounting plate A
Mounting
plate B
Mounting
plate C
Screw covers (to keep the assembly
together during transit)
(step 11 refers)
