Renishaw NC4 Installation And Maintenance Guide

12

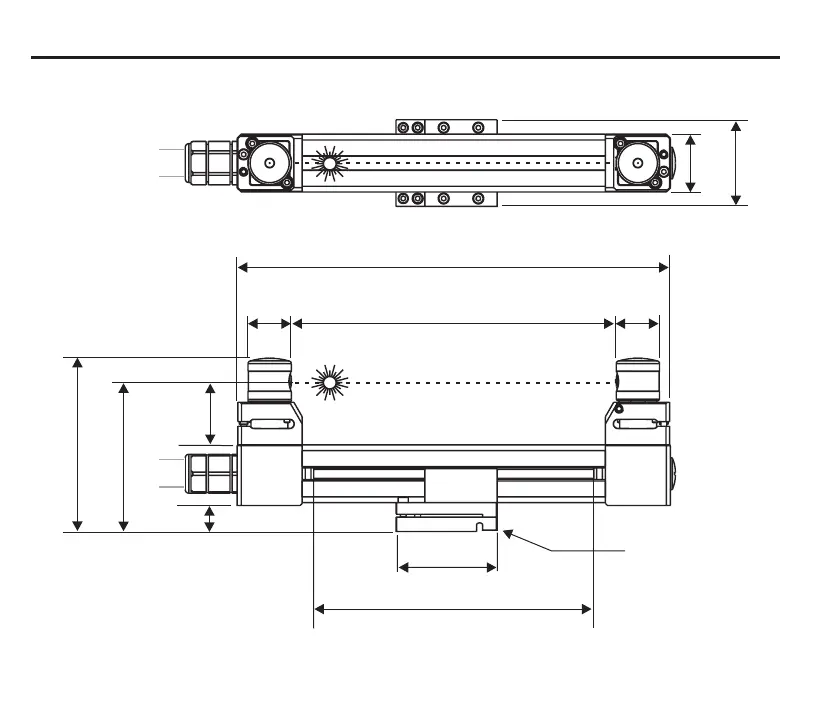

Dimensions – fixed system
Dimensions in mm (in)
300 (11.81)
5 (8.89) -
parate
Ø30
(Ø1.18)
40
(1.58)
60
(2.36)
70 (2.76)
120
(4.72)
104
(4.09)
194 (7.64)
18 (0.71)
Extent of permissible movement
of the adjuster pack
Ø30
(Ø1.18)
Position of the
adjuster pack is set
on installation
225 (8.89)
Beam height
44
(1.73)
